NovaStar CVT4K-S network media converter Internal 11300 Mbit/s 1310 nm Black
- Brand: NovaStar
- Category:
- SKU: CVT4K-S
- EAN:
Fiber Converter, 16-channel Neutrik Ethernet out, 4-channel optical fiber, AC 100-240V, 50/60Hz, 4.6 kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
CVT4K-S |
SNOVCVT4K-S | |||
|
CVT4K-S |
CVT4K-S |
Description

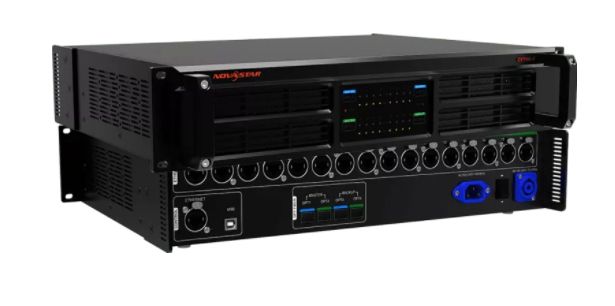

The CVT4K-S is a high-performance fiber converter developed by NovaStar. It is used for conversion between optical signals and electrical signals, allowing for long-distance signal transmission that is stable and not easily interfered with. Easy to use, the CVT4K-S makes it convenient to connect terminal devices and simplifies on-site wiring connections.
Specifications
| Network | |
|---|---|
| Fiber optic connector | LC |
| Maximum data transfer rate | 11300 Mbit/s |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Internal | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 16 |
| Fiber ports quantity | 4 |
| Fiber optic connector | LC |
| Indication | |
| LED indicators | LAN, Power |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Design | |
| LED indicators | LAN, Power |
| Product colour | Black |
| Certification | EMC, LVD, RoHS, FCC, UL/CUL, CB, EAC, IC |
| Internal | Yes |
| Power | |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 10 W |
| AC input frequency | 50 - 60 Hz |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 482.6 mm |
| Depth | 377 mm |
| Weight | 4.6 kg |
| Height | 96 mm |
| Package depth | 440 mm |
| Package width | 550 mm |
| Package height | 210 mm |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package depth | 440 mm |
| Package width | 550 mm |
| Package height | 210 mm |
| Certificates | |
| Certification | EMC, LVD, RoHS, FCC, UL/CUL, CB, EAC, IC |
