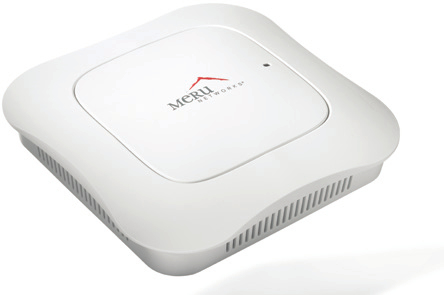

Meru Networks AP822I wireless access point 1167 Mbit/s White Power over Ethernet (PoE)
- Brand: Meru Networks
- Category:
- SKU: AP822i
- EAN: 0855716005111
AP822I - Dual-radio, Two-stream 802.11ac Wireless Access Point, 4 internal omnidirectional antennas
Offer details
Trade Prices
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
Dual-radio 2x2 2-stream 802.11a/b/g/n/ac Access Point with integrated antennas. Can be mounted horizontally (below the ceiling) and vertically (on a wall). Includes mounting bracket and screws. Additional Mounting brackets optional. |
AP822i | |||
Description
Designed for mid-range performance wireless requirements with gigabit speeds
The AP822 is a cost-effective, dual-radio, 802.11a/b/g/n/ac WLAN access point with a 2x2:2ss design. It can operate in the 2.4 GHz band for 802.11n support and in the 5 GHz band for 802.11ac to deliver an aggregate data rate of 1.2 Gbps for demanding business applications such as video and voice. The access point is offered with a choice of internal or external antenna models.
The AP822 is uniquely positioned to meet the needs of the growing market for 802.11ac WLAN, with a balance of low cost and high performance. Priced at $895, the 2x2 802.11ac AP822 is an obvious choice for schools, hospitals, hotels, and other businesses seeking to give end users the high performance of 802.11ac Wi-Fi at a lower cost than existing 3x3 solutions. Meru’s radio frequency virtualization delivers plug-and-play deployment, easy capacity expansion, and seamless mobility.
The AP822 is designed for high client density and the most demanding enterprise environments, such as:
- Offices
- Schools/Universities
- Hospitals
- Hotels/Hospitality
- Retail
The AP822 is a cost-effective, dual-radio, 802.11a/b/g/n/ac WLAN access point with a 2x2:2ss design. It can operate in the 2.4 GHz band for 802.11n support and in the 5 GHz band for 802.11ac to deliver an aggregate data rate of 1.2 Gbps for demanding business applications such as video and voice. The access point is offered with a choice of internal or external antenna models.
The AP822 is uniquely positioned to meet the needs of the growing market for 802.11ac WLAN, with a balance of low cost and high performance. Priced at $895, the 2x2 802.11ac AP822 is an obvious choice for schools, hospitals, hotels, and other businesses seeking to give end users the high performance of 802.11ac Wi-Fi at a lower cost than existing 3x3 solutions. Meru’s radio frequency virtualization delivers plug-and-play deployment, easy capacity expansion, and seamless mobility.
The AP822 is designed for high client density and the most demanding enterprise environments, such as:
- Offices
- Schools/Universities
- Hospitals
- Hotels/Hospitality
- Retail
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS |
| Frequency band | 2.4 - 2.5, 4.9 - 5.9 GHz |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DSSS, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, CE Mark,Industry Canada, TELEC, EU RoHS |
| Maximum data transfer rate | 1167 Mbit/s |
| Wireless LAN features | |
| Frequency band | 2.4 - 2.5, 4.9 - 5.9 GHz |
| Modulation | 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DSSS, QPSK |
| Network | |
| Internal | No |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | 802.1x RADIUS, EAP-FAST, EAP-SIM, EAP-TLS, LEAP, PEAP, WEP, WPA, WPA-PSK, WPA-TKIP, WPA2-AES |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | DSSS |
| Frequency band | 2.4 - 2.5, 4.9 - 5.9 GHz |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation | 16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DSSS, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Switch type | Managed |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Design | |
| Product colour | White |
| Internal | No |
| LED indicators | Yes |
| Certification | FCC, CE Mark,Industry Canada, TELEC, EU RoHS |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Antenna | |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Switch type | Managed |
| Certificates | |
| Certification | FCC, CE Mark,Industry Canada, TELEC, EU RoHS |
| Indication | |
| LED indicators | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Weight | 1.1 kg |
| Height | 68 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
