MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX

MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX

  • Brand: MSI
  • Category:
  • SKU: MAG A850GL PCIE5 WHITE
  • EAN: 4711377115391 4711377115407
850W, 47-63Hz, 120 mm, Active PFC, ATX 3.0, PCIe 5.0

Trade Prices

Distributor Product SKU Stock Updated Price
Exertis IT

PSU MAG A850GL PCIE5 WHITE

10423652 Register free see stock
VIP

850W GOLD F/M MAG A850GL PCIE5 WHITE

124047
Westcoast

MAG A850GL PCIE5 WHITE

View on Webshop open_in_new
4711377115407
EET

Mag A850Gl Pcie5 White Power

306-7ZP8A24-CE0
EET

Ite Power Supply Unit 850 W

MAG A850GL PCIE5 W
EET

Power Supply Unit 850 W 20+4

MAG A850GL PCIE5 WHITE
eParts **NEW**

MAG A850GL PCIE5 WHITE

306-7ZP8A24-CE0
Fourcom

MAG A850GL White PCIE5 850W ATX 3.

519629
Fourcom

850W GOLD F/M MAG A850GL PCIE5 WHI

507353
SYNAXON

850W GOLD F/M MAG A850GL PCIE5

STD10220229
Alternative Suppliers
Memory Bank

850W (MAG A850GL PCIE5 WHITE) ATX 3.1 PSU Fully Modular 80+/Cybenetics Gold LLC Full-Bridge PCIe 5.1

STPSU-850MSIA850GLWH Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £209.71

Description

ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.

LEVEL UP YOUR GAME
With native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTXTM 40 Series graphics cards.
It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

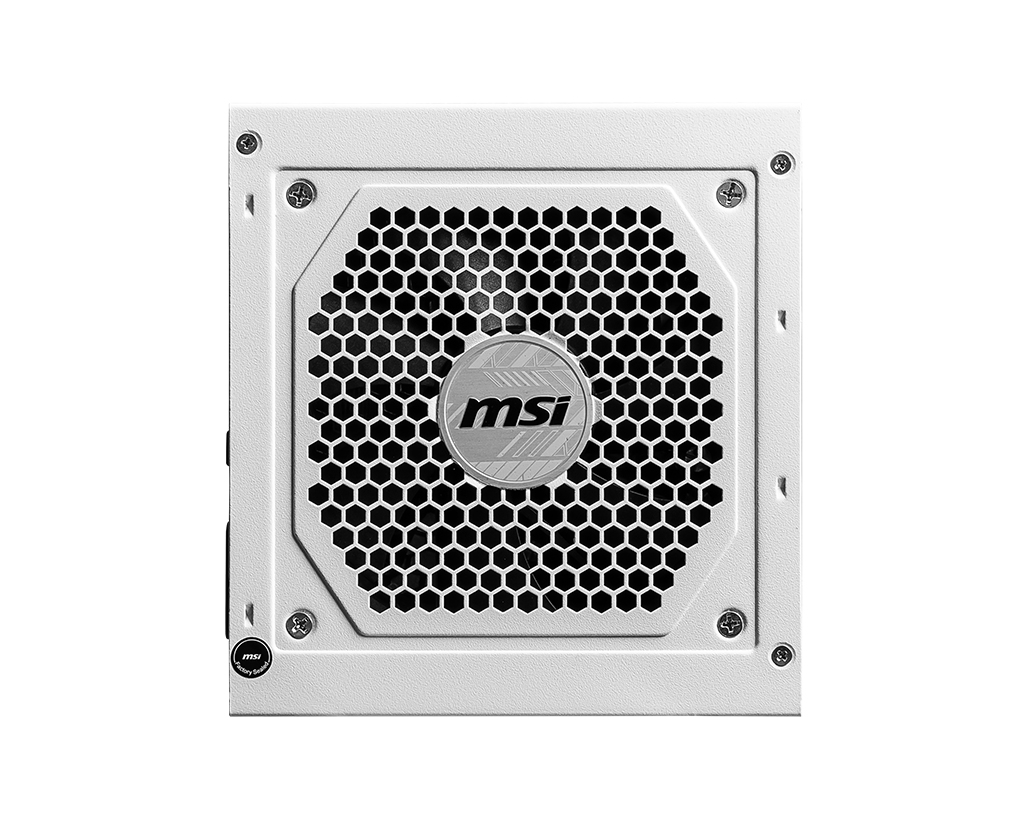

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.


Specifications

Cooling
Fan diameter12 cm
Number of fans1 fan(s)
Cooling typeActive
Performance
On/off switchYes
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
PurposePC
Harmonized System (HS) code84733020
Design
80 PLUS certification80 PLUS Gold
Product colourWhite
Fan diameter12 cm
On/off switchYes
Number of fans1 fan(s)
IlluminationNo
Cooling typeActive
Power
Total power850 W
Maximum input current (@220V)4 A
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Power Factor Correction (PFC) typeActive
Maximum input current (@110V)8 A
Combined power (+3.3V)110 W
Combined power (+12V)846 W
Combined power (+5V)110 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)70.5 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit
Efficiency90%

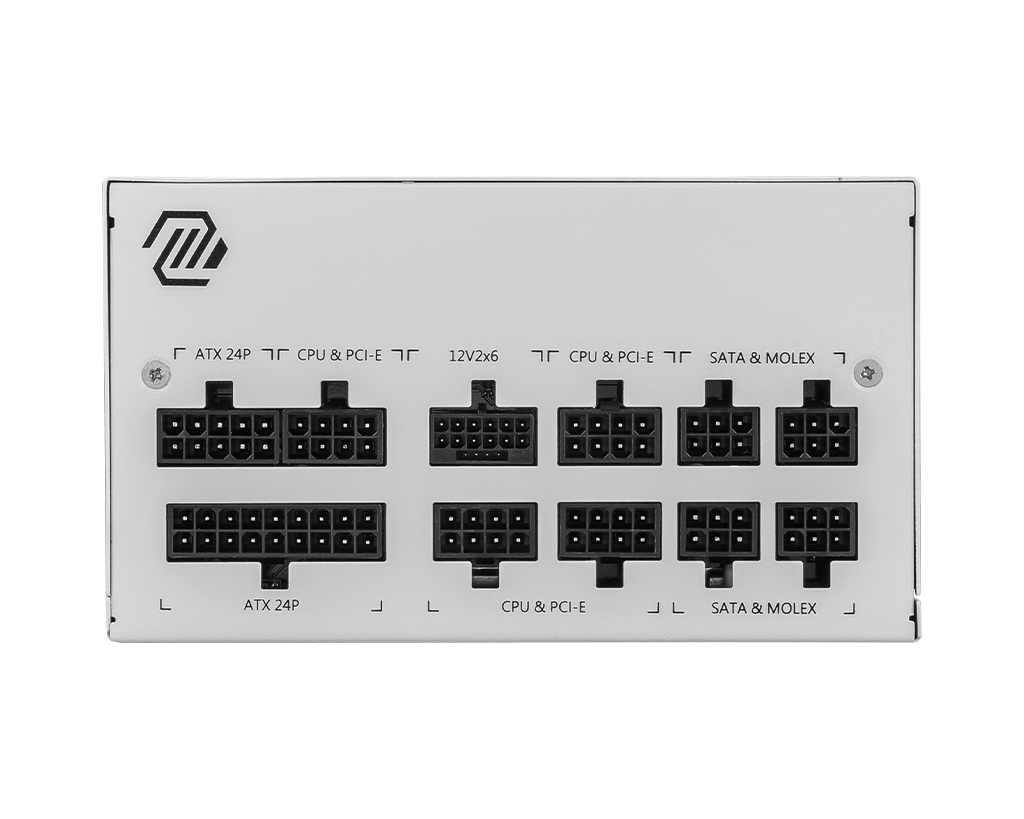

Ports & interfaces
Motherboard power cable length60 cm
Motherboard power connector20+4 pin ATX
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)4
EPS power connector (8-pin)No
PCI Express power connectors (6-pin)0
PCI Express power connectors (6+2 pin)4
PCI Express power connectors (8-pin)0
CPU power connector (4+4 pin)Yes
ATX Power connector (24-pin)No
ATX power connector (20+4 pin)No
Cabling typeFully-Modular
EPS power connector (4+4 pin)Yes
PCI Express power connectors (12+4 pin)0
PCI Express power connectors (12-pin)0
Packaging data
Package typeBox
Certificates
80 PLUS certification80 PLUS Gold
Logistics data
Harmonized System (HS) code84733020
Other features
Harmonized System (HS) code84733020
