Luxul Wireless AMS-2624P Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 19U Black
- Brand: Luxul Wireless
- Category:
- SKU: AMS-2624P-U
- EAN: 0655003920307
26-port/24 PoE+, Gigabit, 337W, 20.96 x 43.94 x 4.44 cm, 4.08 kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
AV Series 26-port/24 PoE+ Gigabit Managed Switch (250W PoE+) (UK) |
AMS-2624P-U |
Description

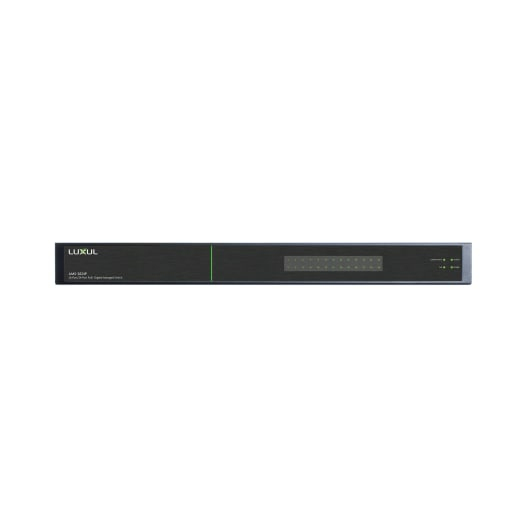

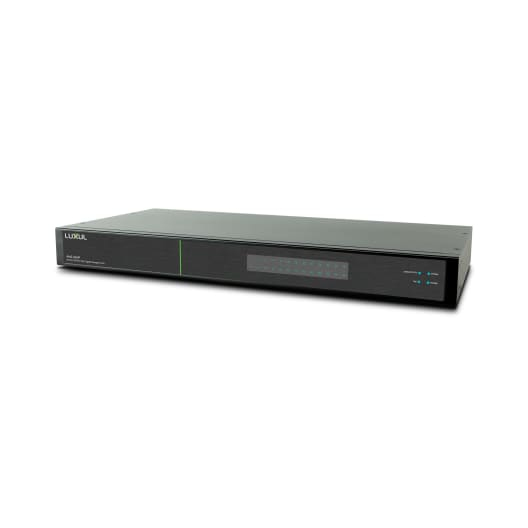

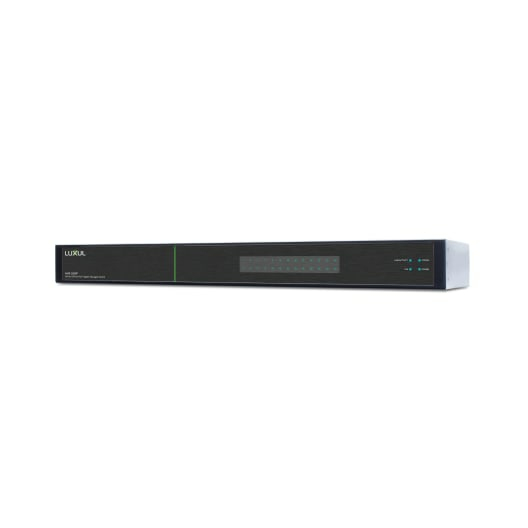

The Luxul AV-Series 26-port/24 PoE+ Gigabit Managed Switch (AMS-2624P) features rear panel ports and front facing LEDs (user selectable blue/green colors) for clean integration with AV rack systems. It is an excellent choice for expanding your network when using PoE-enabled devices such as VoIP, IP cameras and Wireless Access Points. The 26-port Gigabit switch includes 24 PoE+ ports, allowing you to use standard Ethernet cable to deliver both power and high speed data to 802.3af/at-compliant devices. It also features advanced management, and VLAN and security capabilities to provide benefit to your home or office network.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Form factor | 19U |
| Product colour | Black |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Fiber optic connector | SFP |
| Network | |
| Cable types supported | Cat5, Cat5e, Cat6 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
| Jumbo frames | 10056 |
| Switching capacity | 36 Gbit/s |
| Jumbo frames support | Yes |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CB Report CE CE-EMC CE-LVD FCC IC RCM ROHS TAA UKCA |
| Design | |
| Form factor | 19U |
| Product colour | Black |
| LED indicators | Yes |
| Certification | CB Report CE CE-EMC CE-LVD FCC IC RCM ROHS TAA UKCA |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 250 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 185 W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 209.6 mm |
| Depth | 439.4 mm |
| Height | 44.4 mm |
| Weight | 4.08 kg |
