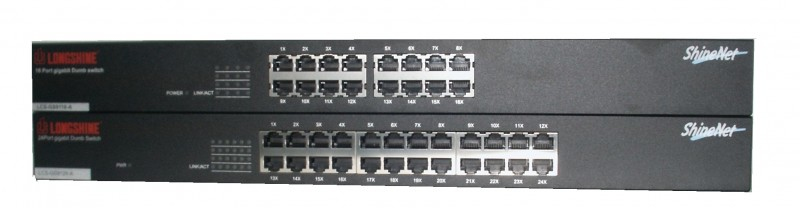

Longshine LCS-GS9116-A network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) 1U Black
- Brand: Longshine
- Category:
- SKU: LCS-GS9116-A
- EAN: 4016621115319
Fanless 16-port 10/100/1000 Mbit/s Workgroup Switch
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Switch 48,3cm Longshine 16x |
LCS-GS9116-A |
Description
Features:
- Complies with 10 BASE-T specifications of the IEEE802.3 standard
- Complies with 100BASE-TX specifications of the IEEE802.3u standard
- Complies with 1000BASE-T specifications of the IEEE802.3ab standard
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode(Half/Full) auto-detection
- Supports MDI/MDI-X auto crossover and polarity correction
- Store-and-forward architecture filters fragment & CRC error packets
- Supports 8K MAC address
- Supports 256K bytes buffer memory
Specifications
| Ports & interfaces | |
|---|---|
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Performance | |
| Packet buffer memory | 0.256 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 0.256 MB |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Store-and-forward | Yes |
| Certificates | |
| Certification | FCC Class A, CE |
| Memory | |
| Packet buffer memory | 0.256 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC Class A, CE |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 5 V |
| Input current | 8 A |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 197 mm |
| Height | 44.1 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Input voltage | 5 V |
