LevelOne 20-Port L2 Plus Managed Gigabit Industrial Switch, 16x 1GbE RJ45, 4x 1/2.5GbE SFP, DIN-Rail, -40°C to 80°C
- Brand: LevelOne
- Category:
- SKU: IGU-2071
- EAN: 4015867238592
20-Port L2 Plus Managed Gigabit Industrial Switch, 16x 1GbE RJ45, 4x 1/2.5GbE SFP, DIN-Rail, -40°C to 80°C
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
20-Port L2 Plus Managed |
IGU-2071 | |||
|
Switch 20x GE IGU-2071 16x 1 |
563638 | |||
|
20-Port L2 Plus Managed Gigabit Industrial Switch - 16x 1GbE RJ45 - 4x 1/2.5GbE SFP - DIN-Rail - -40�C to 80�C |
IGU-2071 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - LevelOne Industr.Switch 16xGE/4xSFP/4x2.5GSFP Managed L2 |
IGU-2071 | |||
Description
The LevelOne IGU-2071 is a rugged L2+ managed industrial Ethernet switch built for demanding environments. Designed to excel in industrial automation, it offers comprehensive Layer 2 management and rapid failover capabilities. This switch ensures uninterrupted operations with its ERPS redundant network, boasting a sub-20ms recovery time.
High-Density Connectivity and Flexibility
Offers comprehensive connectivity with 16 10/100/1000Base-T RJ45 and 4 1000/2500Base-X SFP ports.
Robust Power and Environmental Resilience

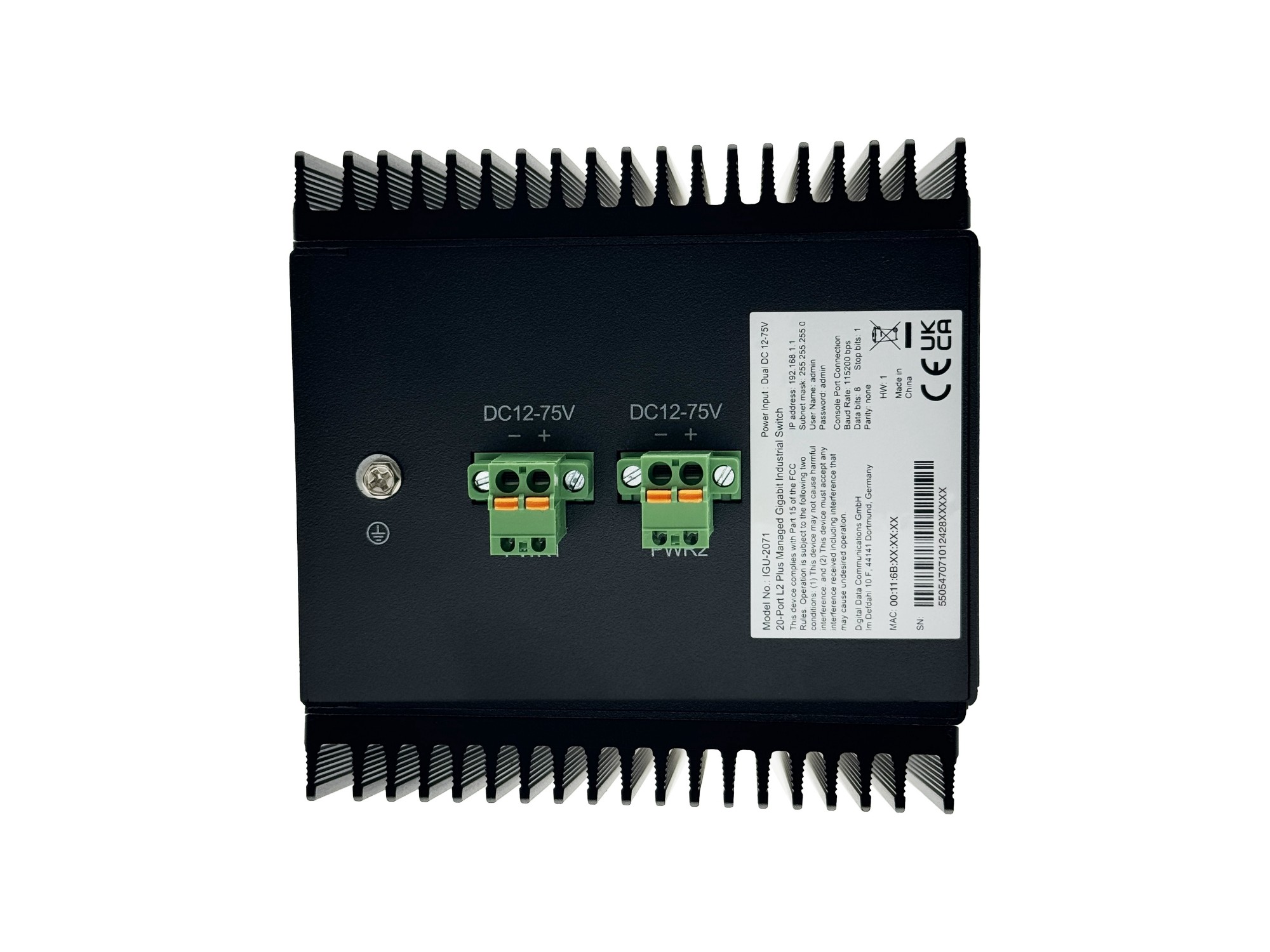

Ensures reliable operation with redundant 12-75V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).

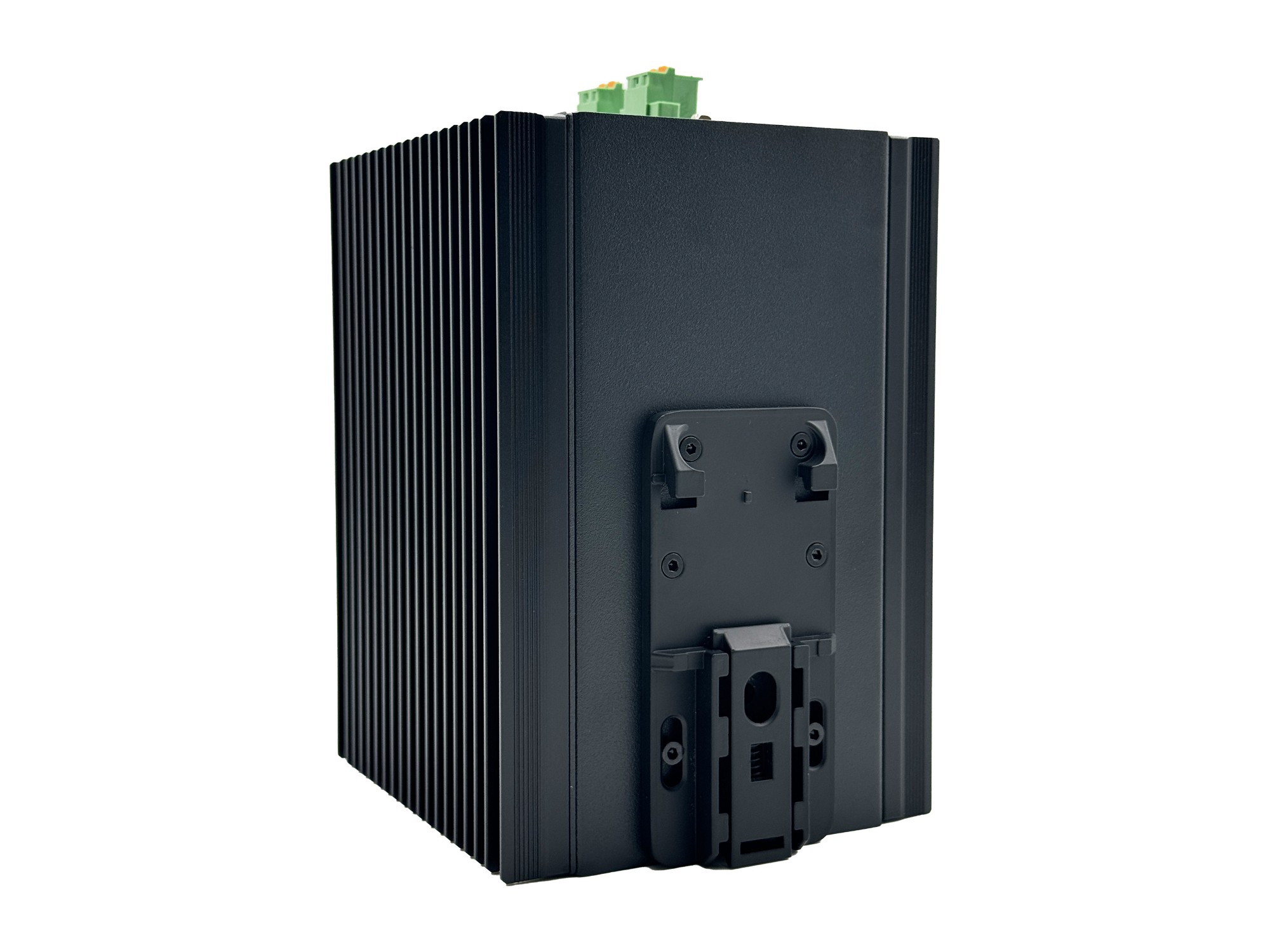

Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +80°C).
High Availability and Performance
Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.
Advanced Management and Security
Simplifies configuration and upgrades with USB one-key functionality.
Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces.
Provides enhanced security with 802.1X authentication, port isolation, and ACL.
Robust Layer 3 Capabilities
Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.
High-Density Connectivity and Flexibility
Offers comprehensive connectivity with 16 10/100/1000Base-T RJ45 and 4 1000/2500Base-X SFP ports.
Robust Power and Environmental Resilience
Ensures reliable operation with redundant 12-75V DC power supply, advanced surge protection (6KV), and ESD protection (Air-15kV, Contact-8kV).
Designed for harsh environments with fanless IP40 Din-rail enclosure and wide operating temperature range (-40°C to +80°C).
High Availability and Performance
Delivers uninterrupted operation through G.8032 ERPS protocol with <20ms recovery time.
Supports advanced Layer 2 features including VLAN, STP/RSTP/MSTP, Link Aggregation, QoS, and IGMP Snooping for optimized network performance.
Advanced Management and Security
Simplifies configuration and upgrades with USB one-key functionality.
Offers robust management options through Web, SNMP, CLI, Telnet, and SSH interfaces.
Provides enhanced security with 802.1X authentication, port isolation, and ACL.
Robust Layer 3 Capabilities
Enables advanced network routing with IPv4/IPv6 static routing and DHCP server.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 16 |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Ethernet Ring Protection Switching (ERPS) | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 77.3 Mpps |
| Security | |
| IP-MAC-Port binding | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Packet filtering | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| DHCP features | DHCP server |
| Protocols | |
| IP Source Guard (IPSG) | Yes |
| Design | |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| Product colour | Black |
| LED indicators | Power, System, USB |
| Country of origin | China |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 12 MB |
| Packet filtering | Yes |
| Harmonized System (HS) code | 851762 |
| Power | |
| Power consumption (max) | 22 W |
| Power supply included | No |
| Surge protection voltage | 6 kV |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Surge protection | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 110 mm |
| Depth | 115 mm |
| Height | 158 mm |
| Weight | 2.08 kg |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Terminal block included | Yes |
| DIN rail included | Yes |
| Packaging data | |
| Terminal block included | Yes |
| DIN rail included | Yes |
| Package width | 230 mm |
| Package depth | 180 mm |
| Package height | 142 mm |
| Package weight | 2.41 kg |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Technical details | |
| Product colour | Black |
| Packet filtering | Yes |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 167.4 cm |
| Master (outer) cases per pallet (air) | 26 pc(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Indication | |
| LED indicators | Power, System, USB |
| Other features | |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 580 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 255 mm |
| Master (outer) case gross weight | 15.2 kg |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 851762 |
