Description

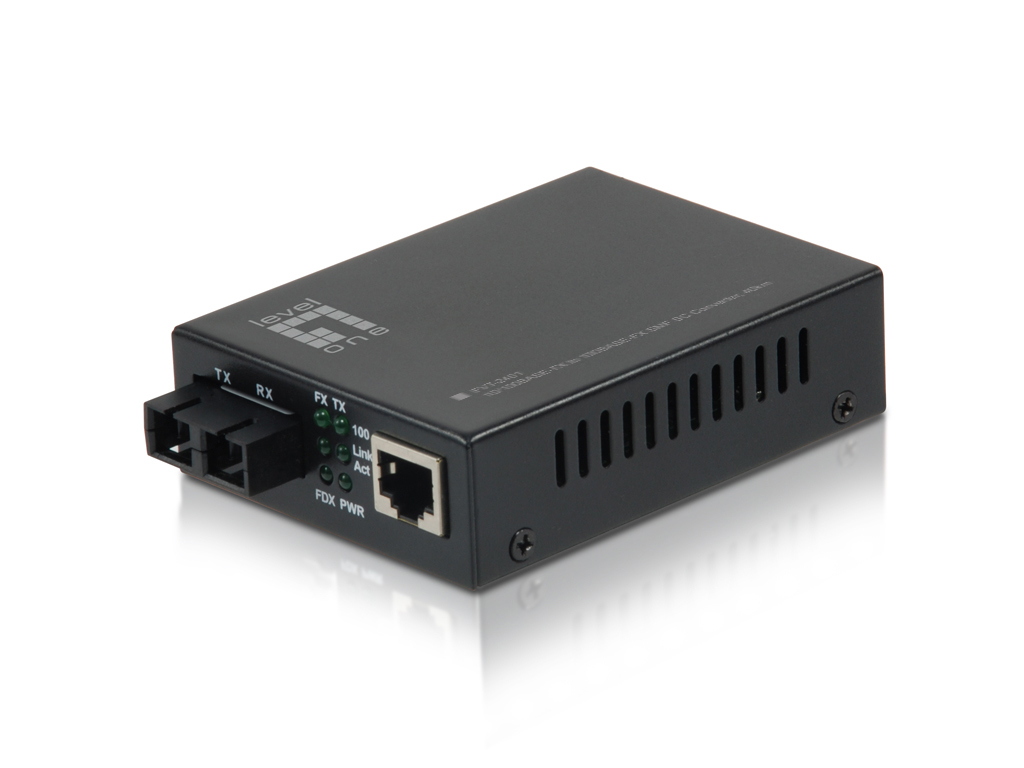

The FVT-2401 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 40 km.

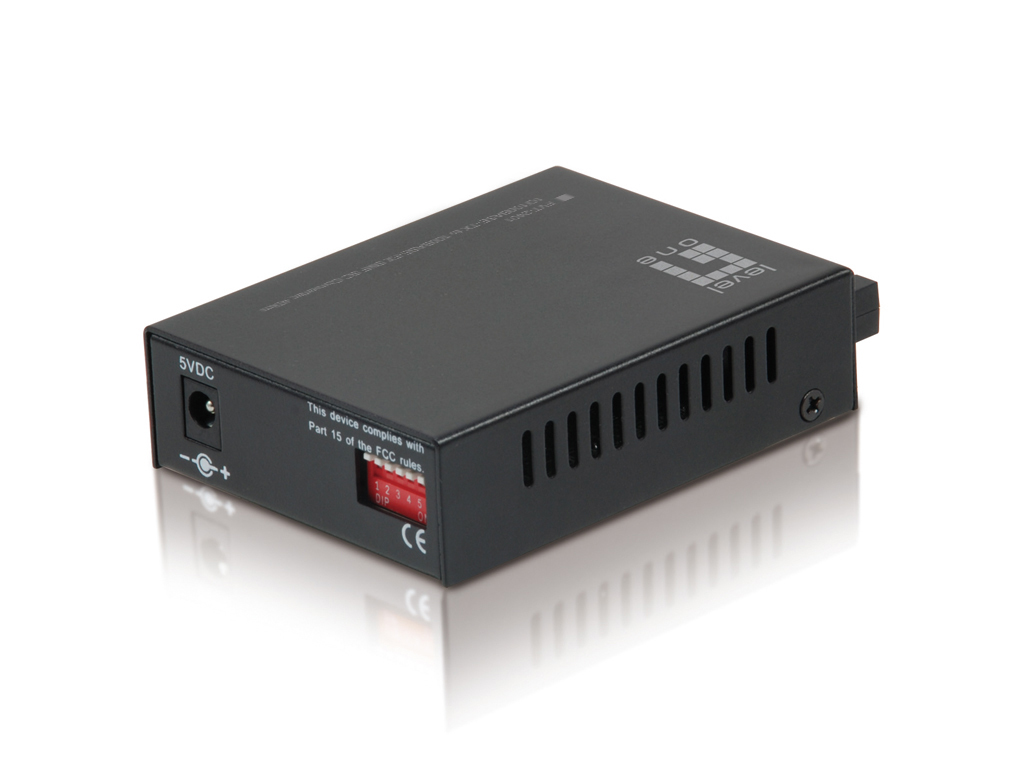

The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2401 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19-inch Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as converter transmission method, auto-negotiation mode for adjusting copper speed and full & half duplex mode.
The FVT-2401 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19-inch Converter Chassis, which can accommodate up to 14 units for use in a central wiring closet.
Specifications
| Network | |
|---|---|
| Store-and-forward | Yes |
| Flow control support | Yes |
| Link Loss Carry Forward (LLCF) supported | Yes |
| Link Loss Return (LLR) supported | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Duplex system | Full, Half |
| Maximum data transfer rate | 100 Mbit/s |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,9/125,10/125 µm |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Features | |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Power | |
| Input voltage | 5 V |
| Input current | 1 A |
| Weight & dimensions | |
| Width | 94 mm |
| Depth | 70 mm |
| Weight | 420 g |
| Height | 25 mm |
| Package depth | 125 mm |
| Package width | 235 mm |
| Package height | 55 mm |
| Package weight | 494 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Package depth | 125 mm |
| Package width | 235 mm |
| Package height | 55 mm |
| Package weight | 494 g |
| Technical details | |
| Wavelength | 1310 nm |
| Maximum transfer distance | 40000 m |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 8.3/125,9/125,10/125 µm |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| Country of origin | China |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | FCC, CE |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC, CE |
| Compliance certificates | RoHS |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
