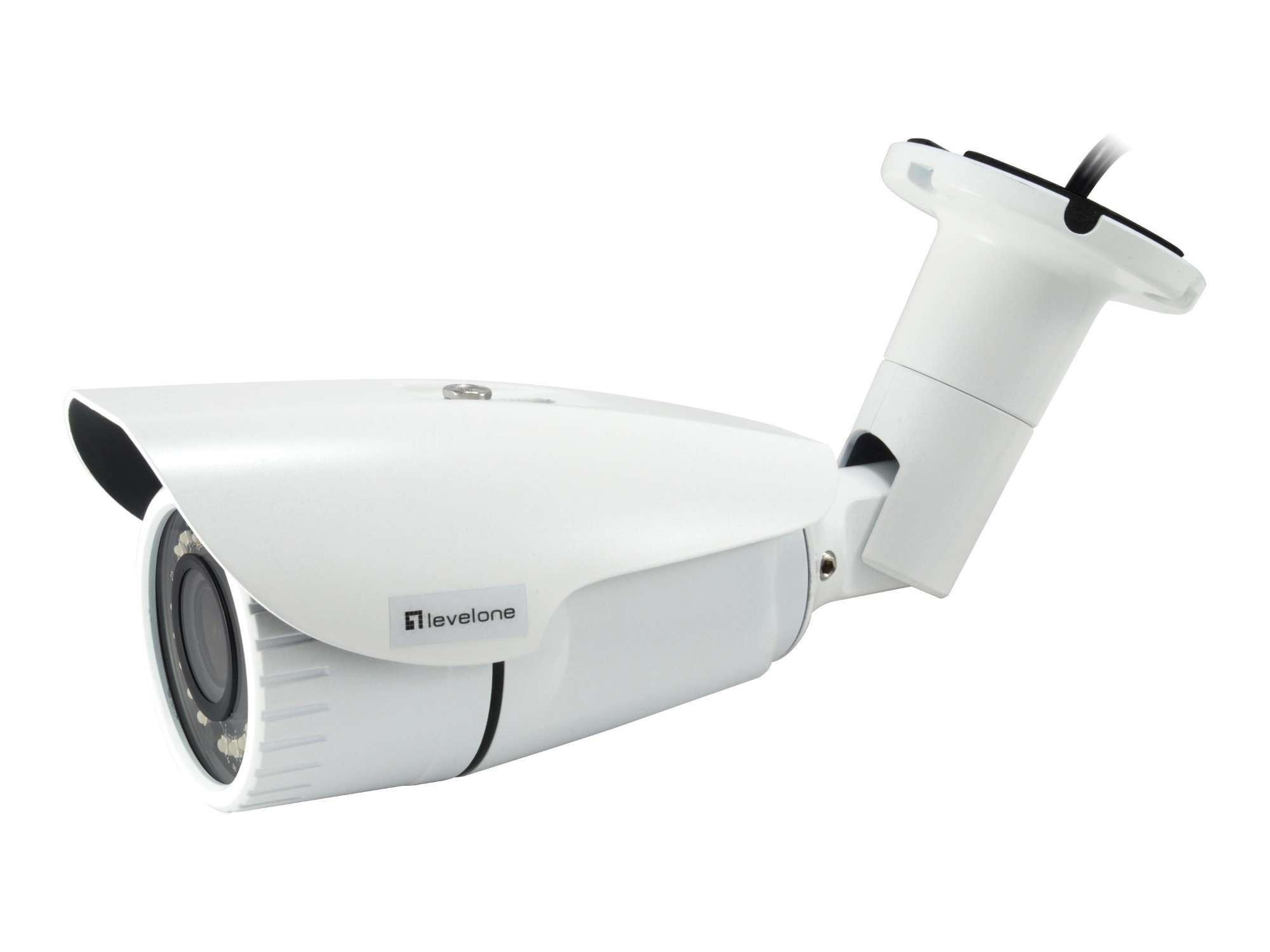

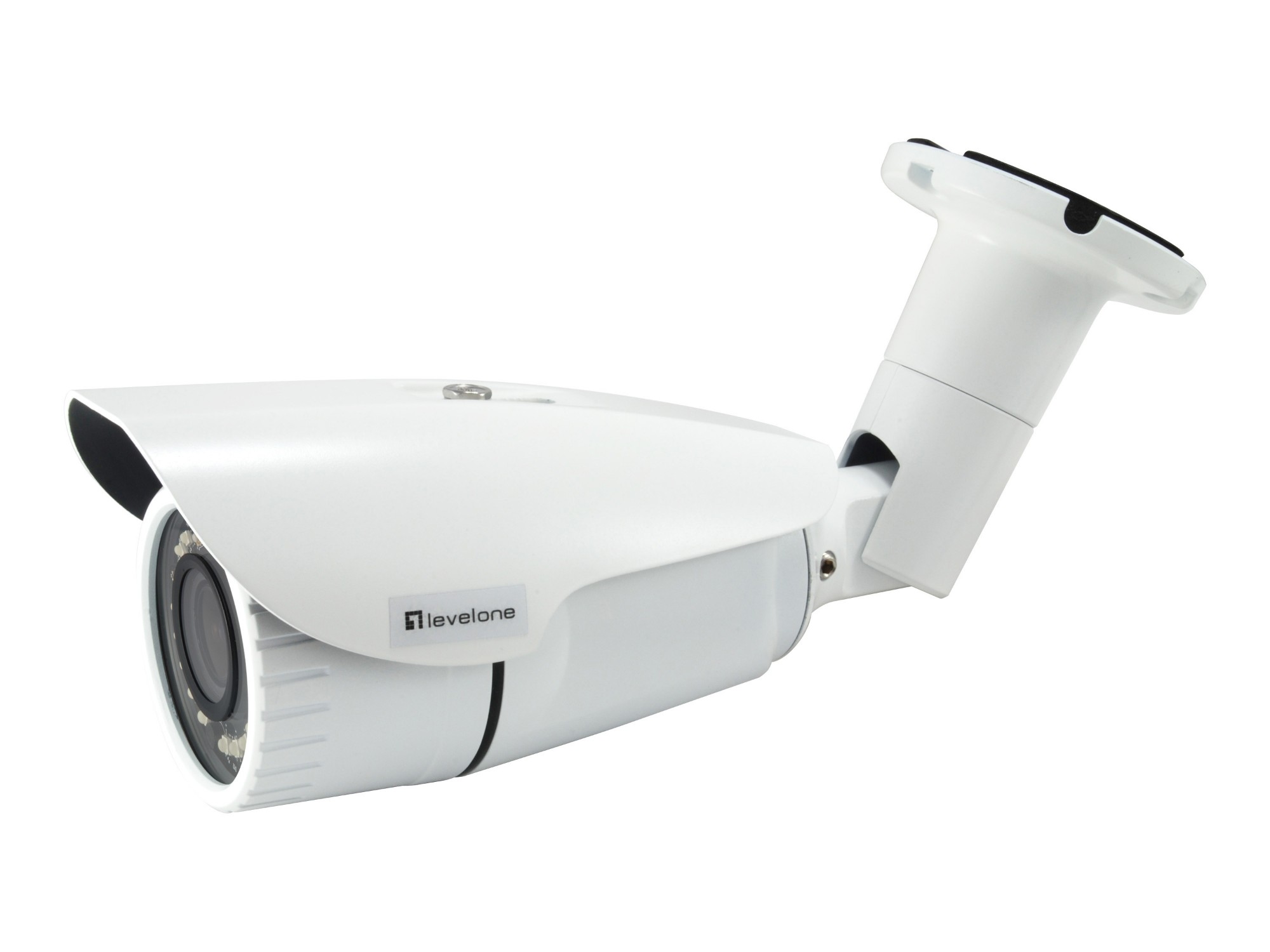

LevelOne HUBBLE Zoom IP Network Camera, H.265, 3-Megapixel, 4.3X Optical Zoom, 802.3af PoE, IR LEDs, Indoor/Outdoor, Vandalproof, two-way audio
- Brand: LevelOne
- Category:
- SKU: FCS-5102
- EAN: 4015867202760
3MP, IP, 2048 x 1536px, 30 fps, 1/5~1/16000 sec, 1/2.8", Fast Ethernet, PoE 802.3af, IR LEDs
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
IPCam FCS-5102 Z 4x Fix Out |
FCS-5102 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £571.00 | ||
| Amazon | New | £623.84 |
Related Products
-
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras -
Category: Security Cameras
Description
The LevelOne FCS-5102 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP66 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 3-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5102 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE/FCC |
| Design | |
| Country of origin | Taiwan |
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Protection features | Vandal proof |
| LED indicators | Power |
| International Protection (IP) code | IP66 |
| Camera | |
| Adjustment shutter speed | Manual |
| White balance | Auto, Manual |
| Camera shutter speed | 1/5 - 1/16000 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2.8 |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 4.3x |
| Focal length range | 2.8 - 12 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Sharpness |
| Automatic gain control | Yes |
| Image stabilizer | Yes |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 2048 x 1536 pixels |
| Video formats supported | RAW |
| Supported graphics resolutions | 320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA) |
| Frame rate | 30 fps |
| Total megapixels | 3 MP |
| Audio | |
| Voice codecs | G.711 |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Signal-to-Noise Ratio (SNR) | 100 dB |
| Audio system | 2-way |
| Audio detection | Yes |
| Audio codecs | Mono, PCM |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Number of users | 16 user(s) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, SNMP, QoS |
| Storage | |
| Built-in HDD | No |
| Ports & interfaces | |
| Terminal block port | Yes |
| BNC output ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Interface | RJ-45 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | E-mail, Snapshot alert message |
| Video motion detection | Yes |
| Password protection type | User |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 8 W |
| DC-in jack | Yes |
| DC output voltage | 12 |
| Certificates | |
| Certification | CE/FCC |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Package type | Box |
| Width | 88.8 mm |
| Depth | 284.1 mm |
| Height | 83.6 mm |
| Diameter | 8 cm |
| Weight | 814 g |
| Package width | 120 mm |
| Package height | 120 mm |
| Package depth | 350 mm |
| Package weight | 1.08 kg |
| Packaging data | |
| Package type | Box |
| Package width | 120 mm |
| Package height | 120 mm |
| Package depth | 350 mm |
| Package weight | 1.08 kg |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Package type | Box |
| Resource CD | Yes |
| Manual | Yes |
| Technical details | |
| Removable IR-cut filter | Yes |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Browser supported | Internet Explorer 8.0+ |
| Data transfer rate | 16 Mbit/s |
| Audio codecs | Mono, PCM |
| Logistics data | |
| Master (outer) case width | 408 mm |
| Master (outer) case length | 425 mm |
| Master (outer) case height | 490 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 85258900 |
