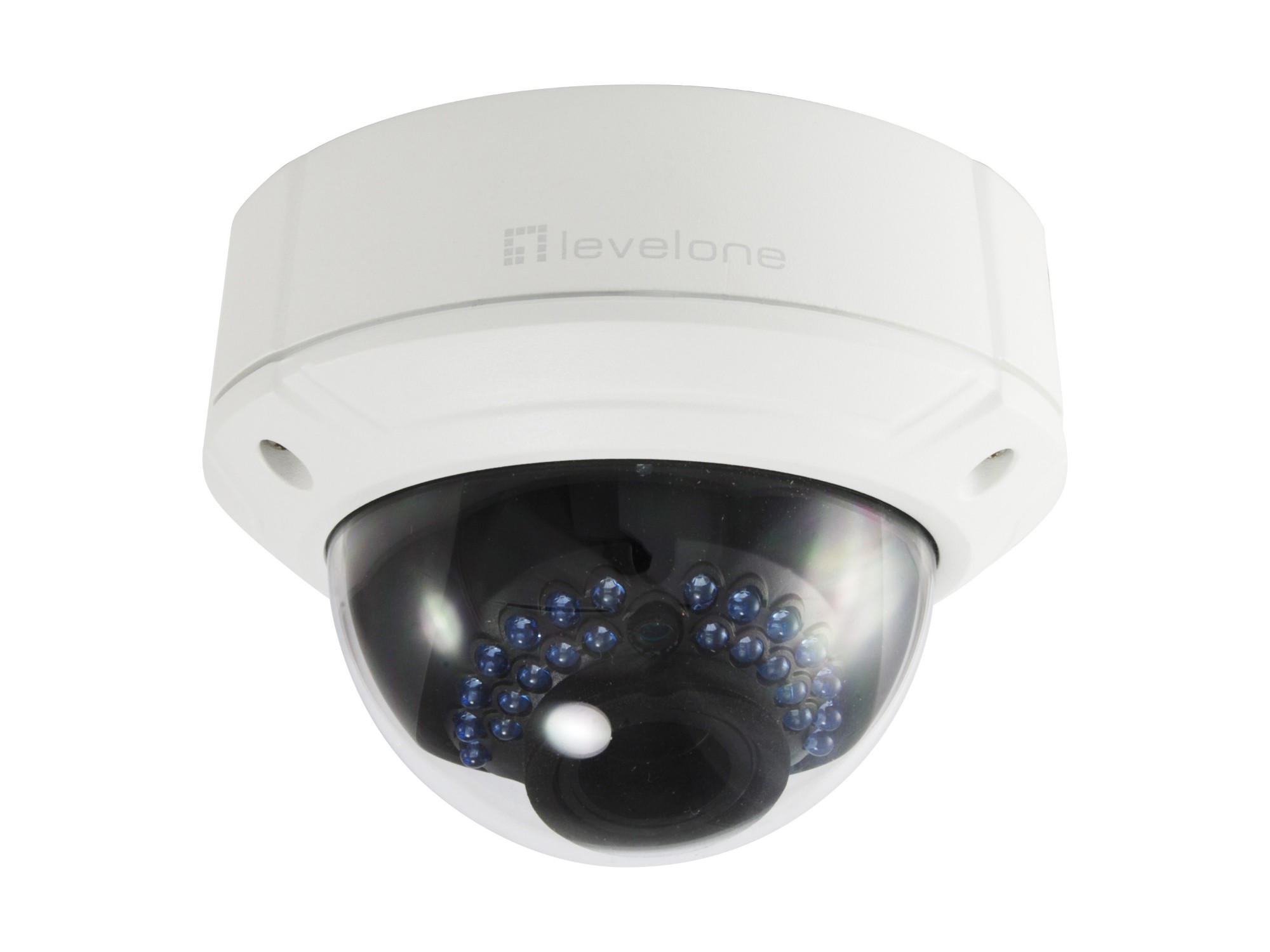

LevelOne GEMINI Zoom Dome IP Network Camera, 4-Megapixel, H.265, IR LEDs, 802.3af PoE, 4.3X Optical Zoom
- Brand: LevelOne
- Category:
- SKU: FCS-3411
- EAN: 4015867207727
4MP, IR LED, PoE, 4.3x, IP67, 1/3" CMOS, 2.7 mm - 13.5 mm, F1.6, RJ-45, 2560 x 1440px max, 1000 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Gemini Zoom Dome Ip Network |
FCS-3411 |
Related Products
Description
The LevelOne FCS-3411 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3411 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Certification | CF/FCC |
| Design | |
| Country of origin | China |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0.01 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, horizontal | 98° |
| Lens viewing angle, vertical | 51° |
| Lens viewing angle, diagonal | 115° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Zoom capability | Yes |
| Optical zoom | 4.3x |
| Focus adjustment | 1.6 |
| Focal length range | 2.7 - 13.5 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Gain control type | Auto |
| Bit rate | 32 Kbps - 8 Mbps |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 2560 x 1440 pixels |
| Video formats supported | MPEG4 |
| Supported graphics resolutions | 320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Number of users | 32 user(s) |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP,SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| User access level | Administrator, Operator, User |
| Storage | |

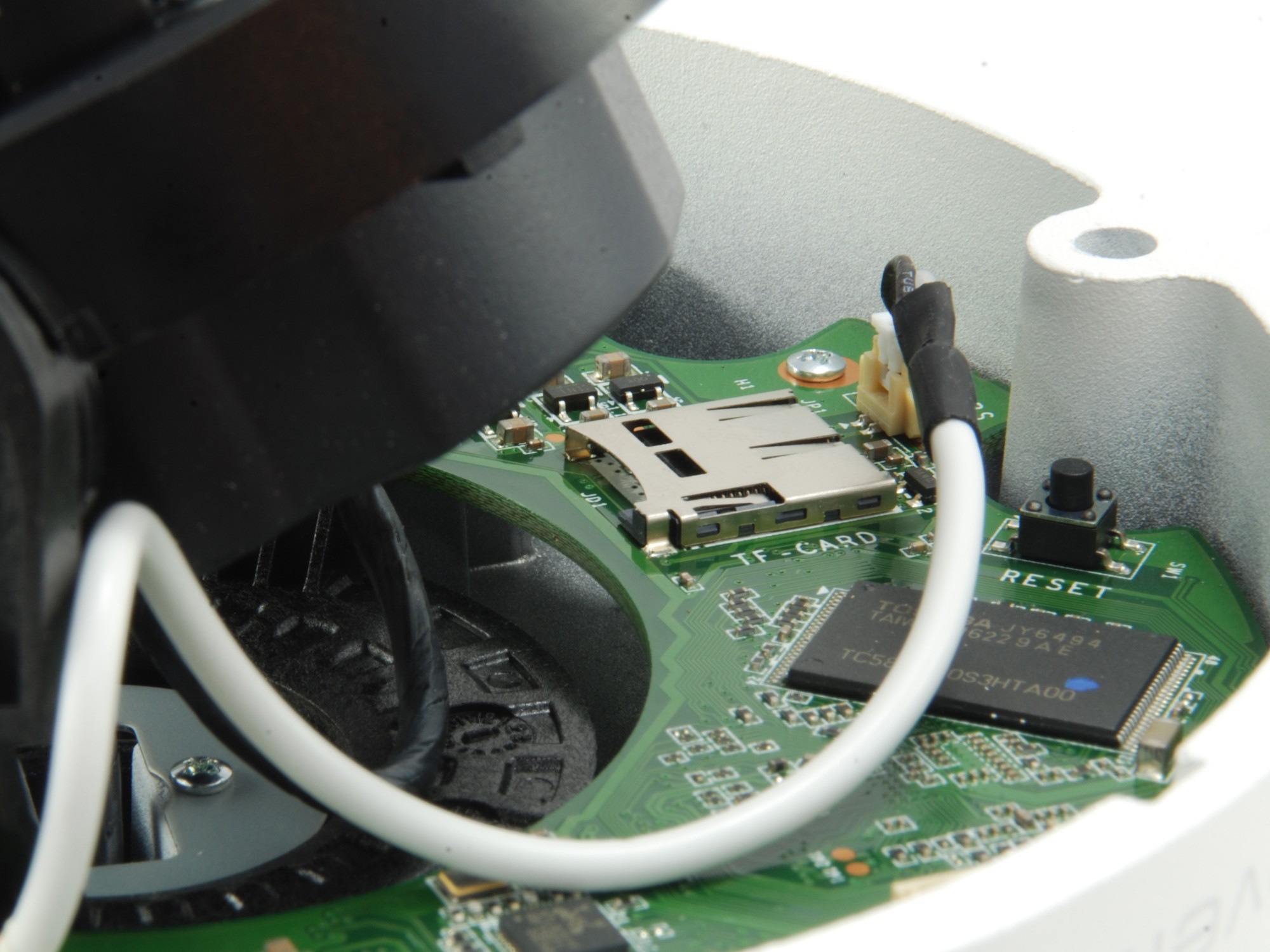

| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SDHC, SDXC |
| Ports & interfaces | |

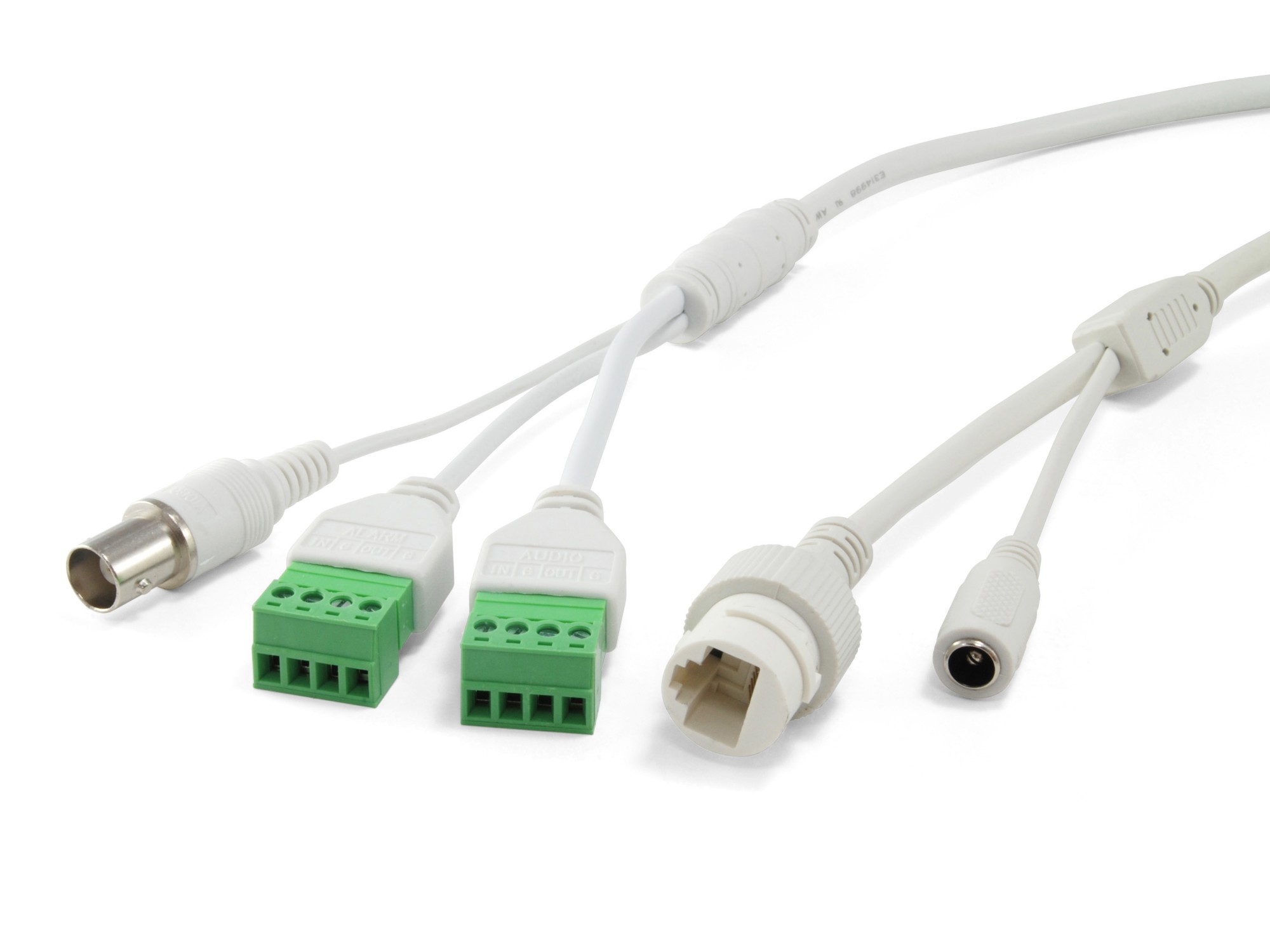

| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Digital watermark | Yes |
| Anti-flicker | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 10 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| Power over Ethernet (PoE) | Yes |
| Certificates | |
| Certification | CF/FCC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Package type | Box |
| Width | 140 mm |
| Depth | 99.9 mm |
| Height | 140 mm |
| Weight | 1 kg |
| Package width | 430 mm |
| Package height | 590 mm |
| Package depth | 335 mm |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Package type | Box |
| Resource CD | Yes |
| Other features | |
| Browser supported | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Logistics data | |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 590 mm |
| Master (outer) case height | 355 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 85258900 |
