LevelOne GEMINI PT Dome IP Network Camera, 4-Megapixel, 802.3af PoE, 150Mbps Wireless 802.11n, IR LEDs, two-way audio
- Brand: LevelOne
- Category:
- SKU: FCS-4103
- EAN: 4015867201817
1/3" CMOS, F2.0, RJ-45, DC, Audio In/Out, 10m IR, 4MP, 2.4 GHz ~ 2.4835 GHz, PoE, 500 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4-MPIXEL PT NETWORK CAMERA POE |
FCS-4103 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £656.00 | ||
| Amazon | New | £656.00 | ||
| Amazon | New | £656.00 |
Related Products
-
Category: Security Cameras -
Category: Security Cameras
Description

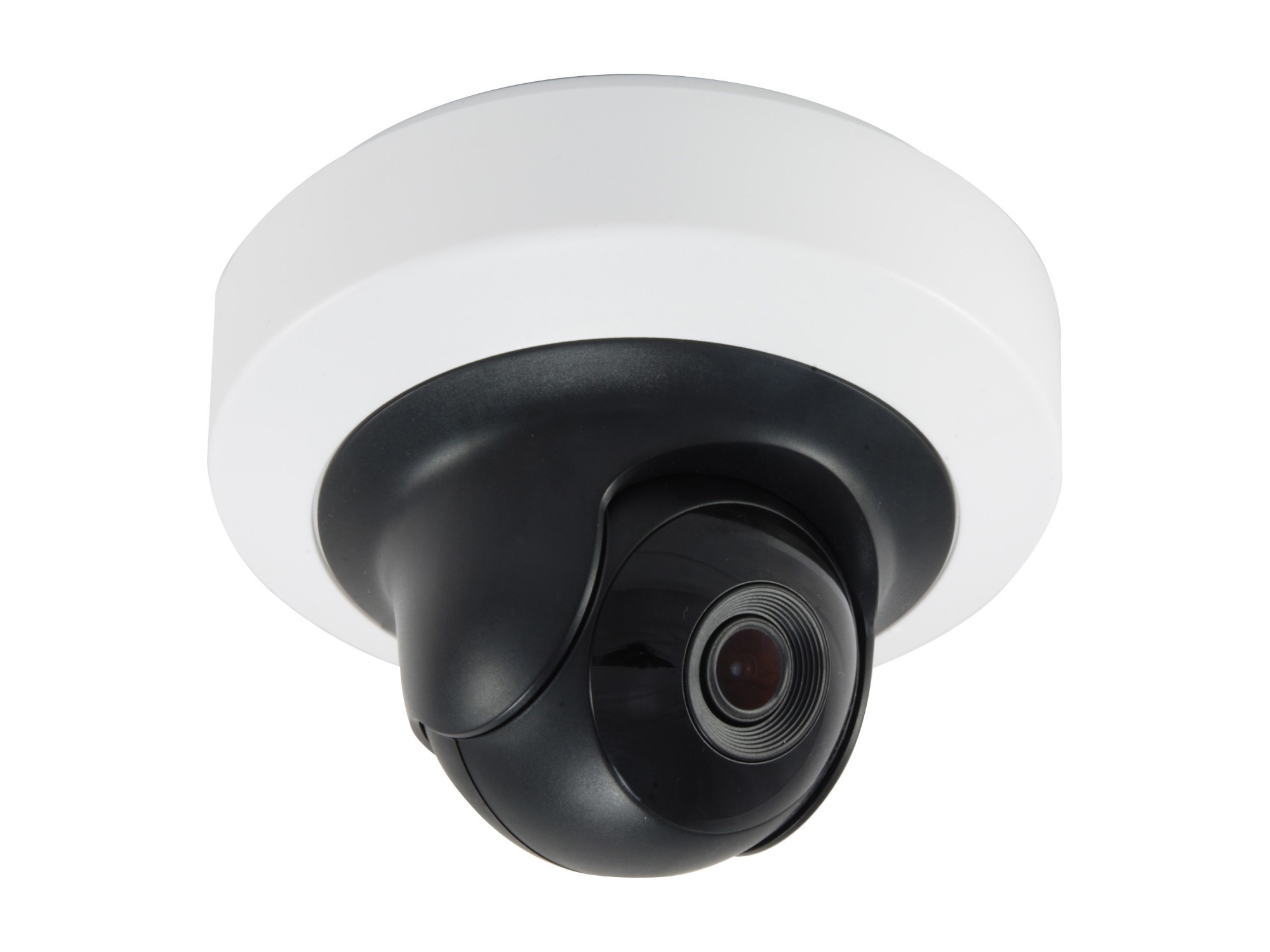

The LevelOne FCS-4301 is a 4-Megapixel wireless IP surveillance camera, with motorized Pan and Tilt functionality which allows it to change viewing directions. 802.1n wireless connection to the network allows for a fast, flexible, secure and cost-effective installation, with real-time streaming to most devices. The camera also offers a choice of wired PoE connection, enabling it to run both power and data through the same Cat.5 cable.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired & Wireless |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE/FCC, ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI,ISO-9001 |
| Design | |
| Country of origin | China |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| LED indicators | Power |
| Camera | |
| Field of view (FOV) angle | 83° |
| Tilt angle range | 0 - 75° |
| Pan range | -90 - 90° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Lens system | |
| Number of lenses | 1 |
| Focus adjustment | 2.0 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Video | |
| Full HD | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Flip & mirror | Yes |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.264, H.264+, M-JPEG |
| Maximum resolution | 2688 x 1520 pixels |
| Video formats supported | MP4 |
| Supported graphics resolutions | 352 x 288, 640 x 360, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520 |
| Frame rate | 30 fps |
| Total megapixels | 4 MP |
| Audio | |
| Voice codecs | G.711, G.722.1, G.726 |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Frequency band | 2.4 - 2.4835 GHz |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 150 Mbit/s |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | SD, SDHC, SDXC |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired & Wireless |
| Security | |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS |
| Active tampering alarm | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 5 W |
| DC-in jack | Yes |
| Certificates | |
| Certification | CE/FCC, ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI,ISO-9001 |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Weight & dimensions | |
| Package type | Box |
| Width | 119.9 mm |
| Depth | 87.1 mm |
| Height | 119.9 mm |
| Diameter | 12 cm |
| Weight | 500 g |
| Package width | 140 mm |
| Package height | 145 mm |
| Package depth | 150 mm |
| Package weight | 600 g |
| Packaging content | |
| Number of cameras | 1 |
| Package type | Box |
| Resource CD | Yes |
| Mounting kit | Yes |
| Technical details | |
| Audio input | Yes |
| Removable IR-cut filter | Yes |
| Other features | |
| Video compression formats | H.264, H.264+, M-JPEG |
| Browser supported | Internet Explorer 9+ |
| Data transfer rate | 16 Mbit/s |
| Logistics data | |
| Master (outer) case width | 370 mm |
| Master (outer) case length | 503 mm |
| Master (outer) case height | 313 mm |
| Master (outer) case gross weight | 24 kg |
| Products per master (outer) case | 30 pc(s) |
| Harmonized System (HS) code | 85258900 |
