LevelOne GEMINI Fixed Dome IP Network Camera, H.265, 5-Megapixel, 802.3af PoE, Vandalproof, IR LEDs, two-way audio, Indoor/Outdoor
- Brand: LevelOne
- Category:
- SKU: FCS-3090
- EAN: 4015867202296
1/2.8" CMOS, F2.0, RJ-45, Audio In/Out, 1/3~1/10,000 sec, PoE, 500 g
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
FIXED DOME OUTDOOR CAMERA 5-MP |
FCS-3090 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £327.18 | ||
| Amazon | New | £296.00 |
Related Products
Description

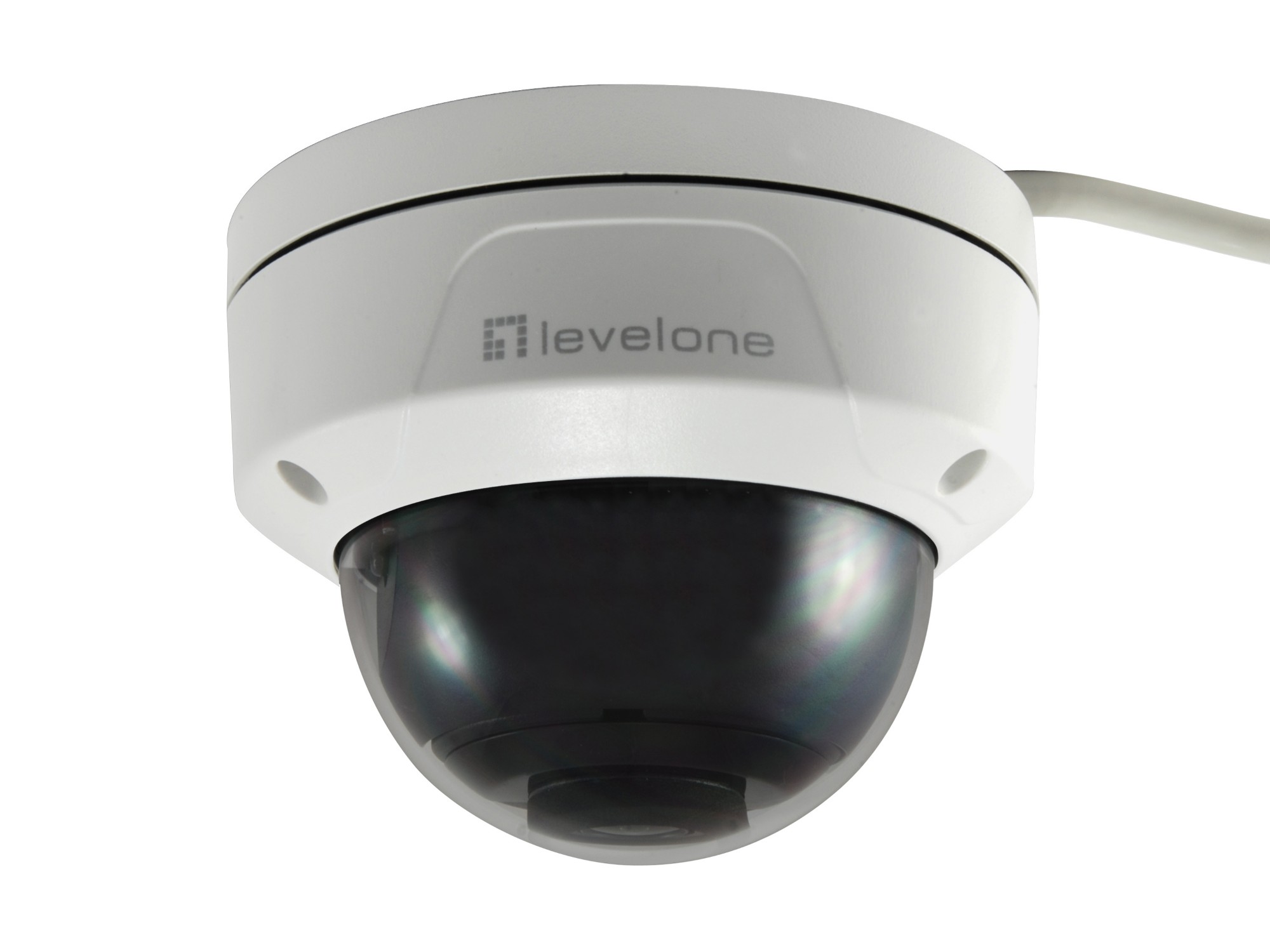

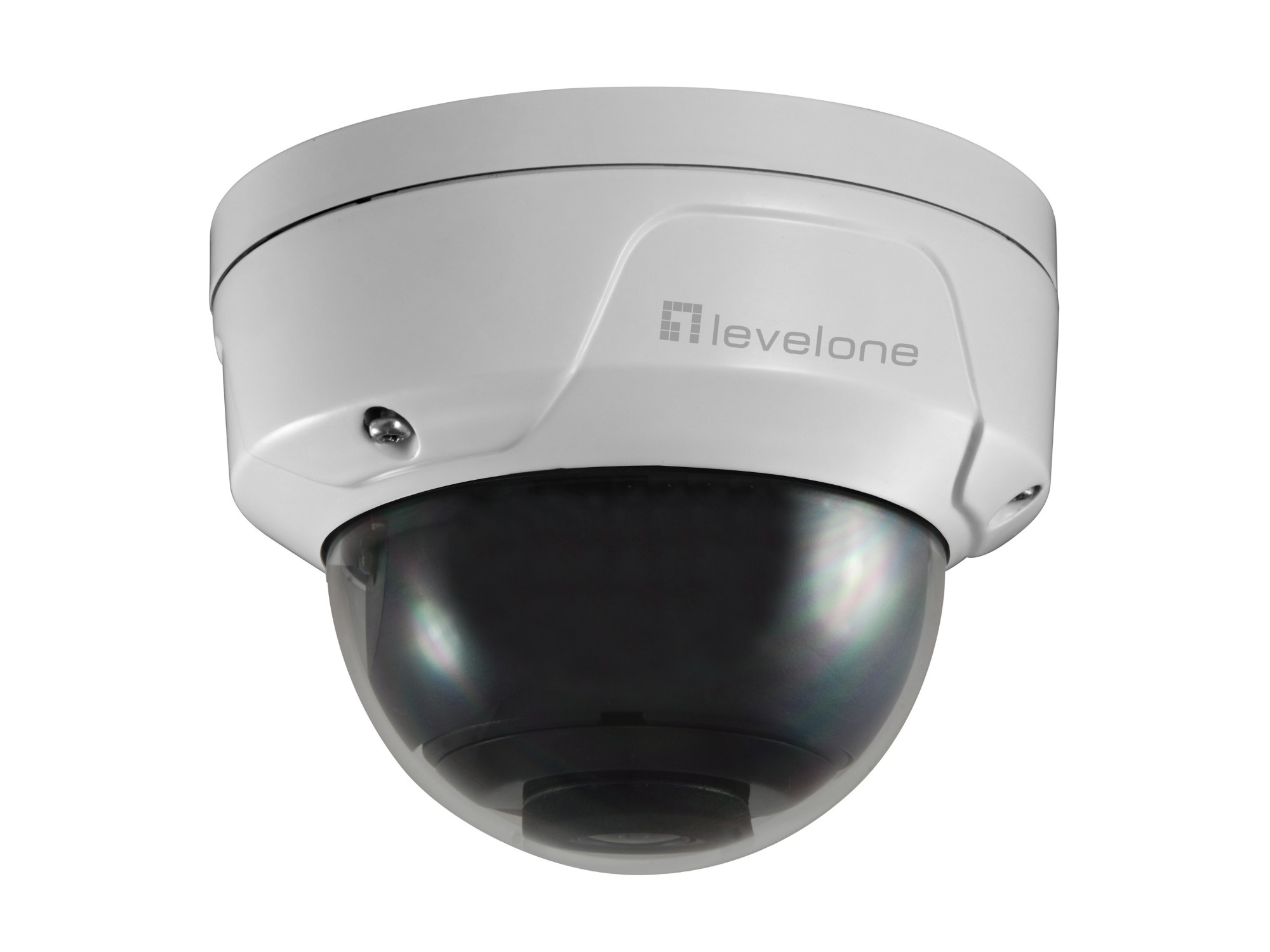

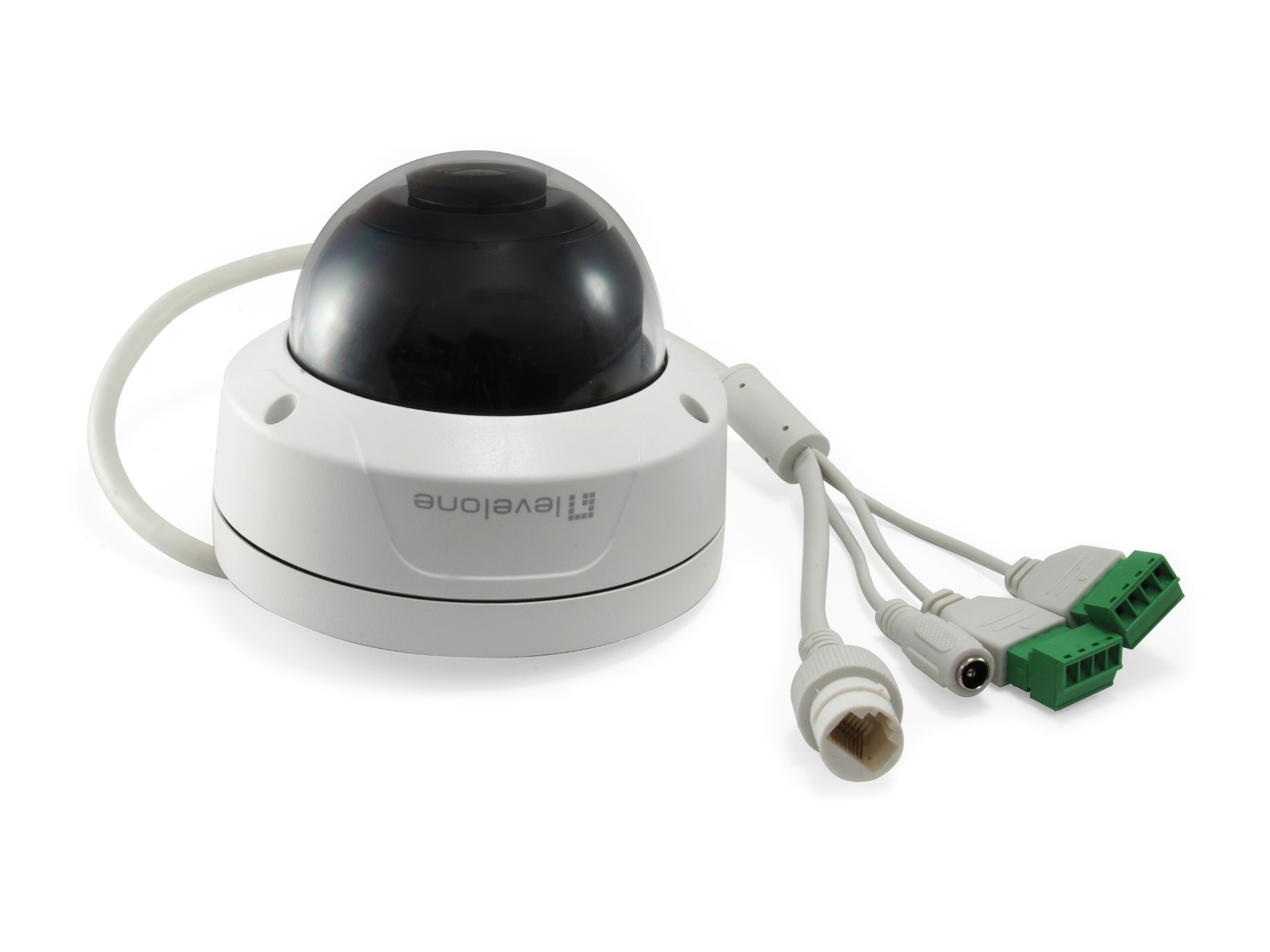

The LevelOne FCS-3090 Fixed Dome Outdoor Camera offers a highly reliable, cost-effective outdoor IP surveillance solution in a low-profile dome mounted casing, which is rated at IP67 and able to withstand outdoor operating conditions such as rain, snow, extreme heat, dust and humidity. The FCS-3090 offers 5-Megapixel resolution, and with 802.3af standard PoE, can use a single Cat.5 cable to run both power and data, making deployments easy and flexible. The dome mounting prevents malicious tampering with the camera, making it a secure and smart choice for all outdoor installations.
Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Certification | CF, FCC |
| Design | |
| Country of origin | China |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Camera | |
| Field of view (FOV) angle | 63.5° |
| Camera shutter speed | 1/3 ~ 1/10000 s |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Number of lenses | 1 |
| Focus adjustment | 2.0 |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 2560 x 1656 pixels |
| Video formats supported | AVI |
| Supported graphics resolutions | 2560 x 1656, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440 |
| Frame rate | 30 fps |
| Total megapixels | 5 MP |
| Audio | |
| Voice codecs | G.711, G.722.1, G.726 |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Number of users | 16 user(s) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |

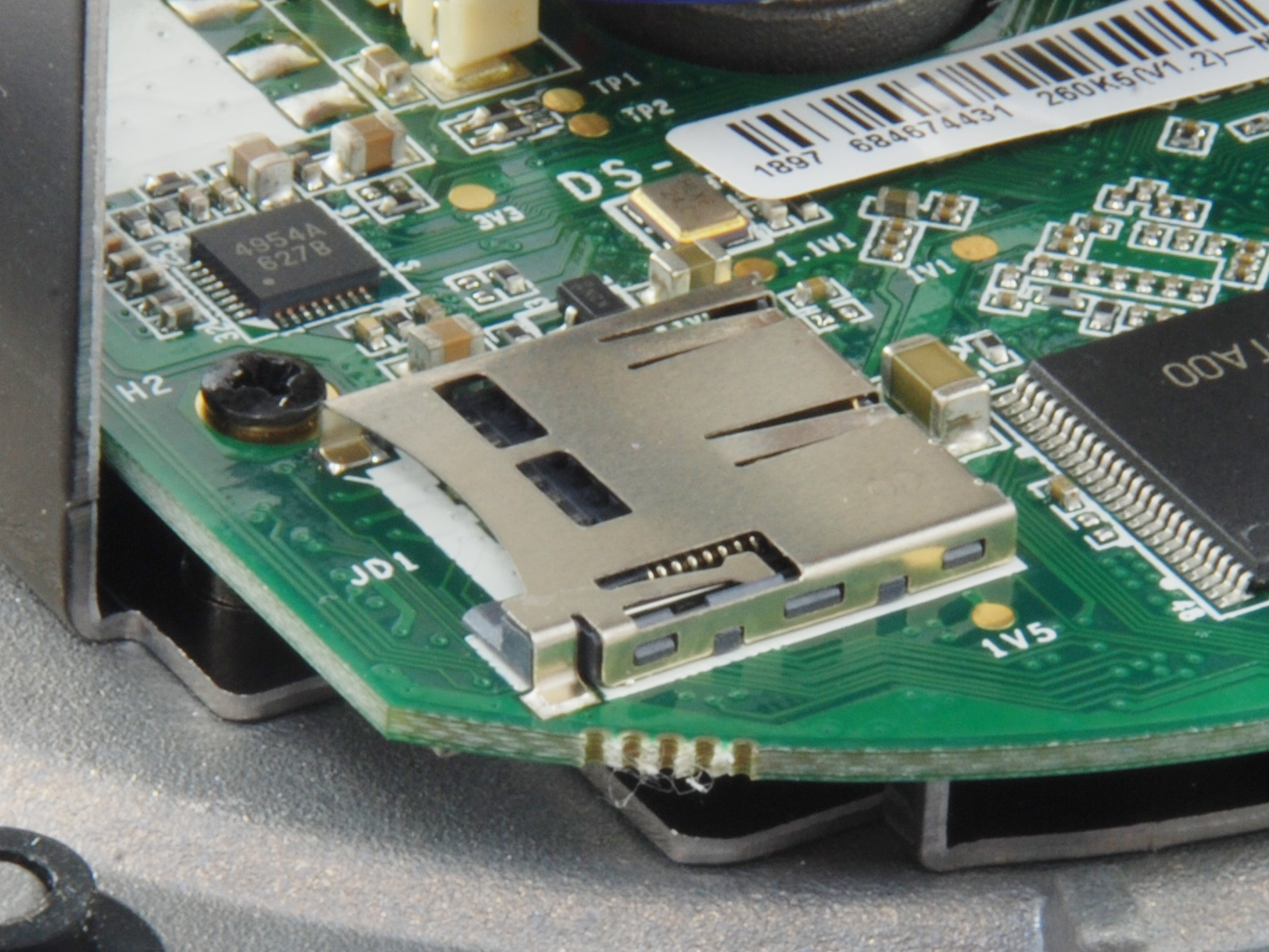

| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Intrusion, Missing object |
| IP address filtering | Yes |
| Management features | |
| Reset button | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 7.5 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 5.5 W |
| Certificates | |
| Certification | CF, FCC |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Weight & dimensions | |
| Package type | Box |
| Height | 82 mm |
| Diameter | 11.1 cm |
| Weight | 500 g |
| Package width | 134 mm |
| Package height | 108 mm |
| Package depth | 134 mm |
| Package weight | 500 g |
| Packaging content | |
| Number of cameras | 1 |
| Package type | Box |
| Resource CD | Yes |
| Technical details | |
| Removable IR-cut filter | Yes |
| Other features | |
| Video compression formats | H.264, H.265 |
| Logistics data | |
| Master (outer) case width | 345 mm |
| Master (outer) case length | 288 mm |
| Master (outer) case height | 568 mm |
| Products per master (outer) case | 24 pc(s) |
| Harmonized System (HS) code | 85258900 |
