LevelOne GEMINI Fixed Dome IP Network Camera, 6-Megapixel, H.265,802.3af PoE, Indoor/Outdoor
- Brand: LevelOne
- Category:
- SKU: FCS-3404
- EAN: 4015867207710 0846359052730
GEMINI Fixed Dome IP Network Camera, 6-Megapixel, H.265,802.3af PoE, Indoor/Outdoor
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Gemini Fixed Dome Ip Network |
FCS-3404 | |||
|
FCS-3404 overvågningskamera K |
527473 | |||
|
GEMINI Fixed Dome IP Network Camera; 6-Megapixel; H.265; 802.3af PoE; IR LEDs; Indoor/Outdoor |
FCS-3404 | |||
|
GEMINI Fixed Dome IP Network Camera - 6-Megapixel - H.265 - 802.3af PoE - IR LEDs - Indoor/Outdoor |
FCS-3404 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - LevelOne IPCam Dome Fix Out 6MP/H.265/IR/ 9W/PoE/IP67 |
FCS-3404 | |||
Related Products
Description

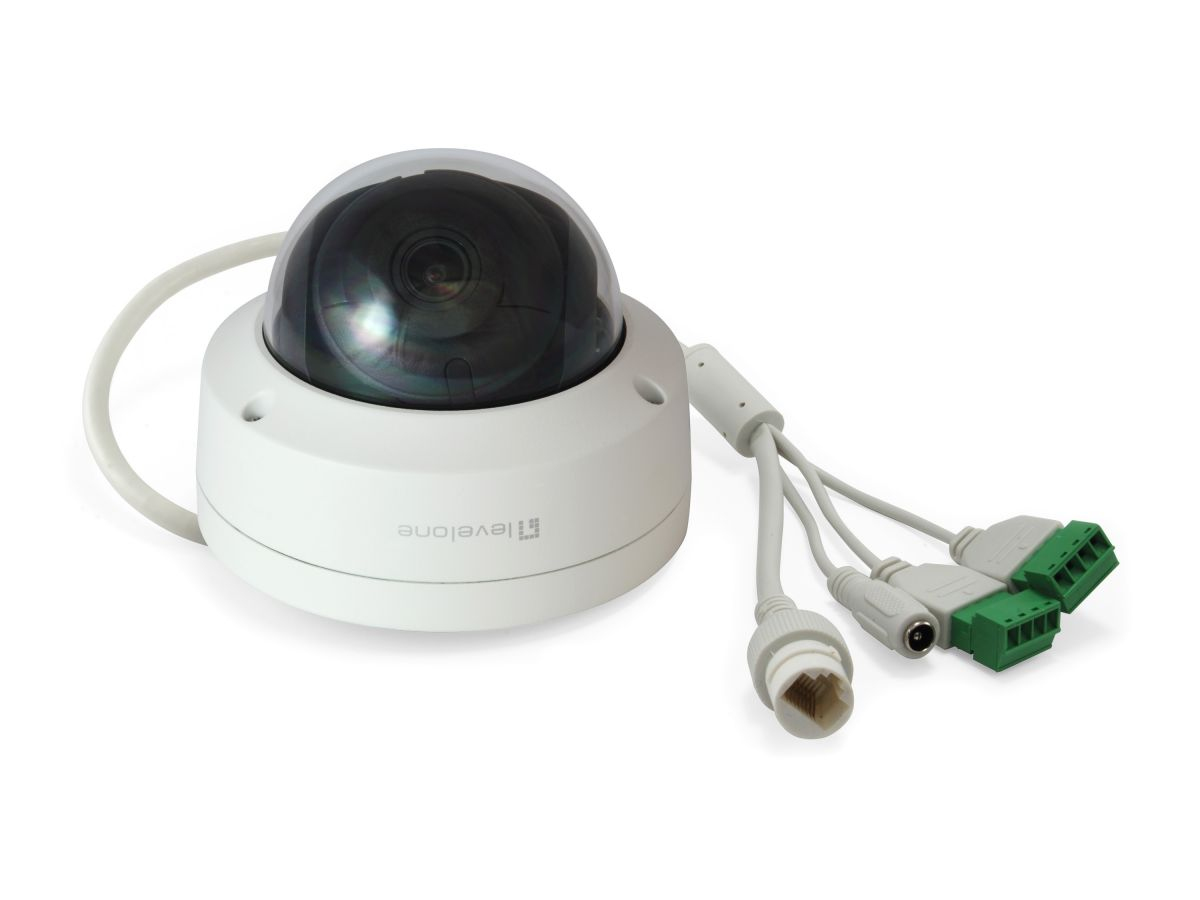

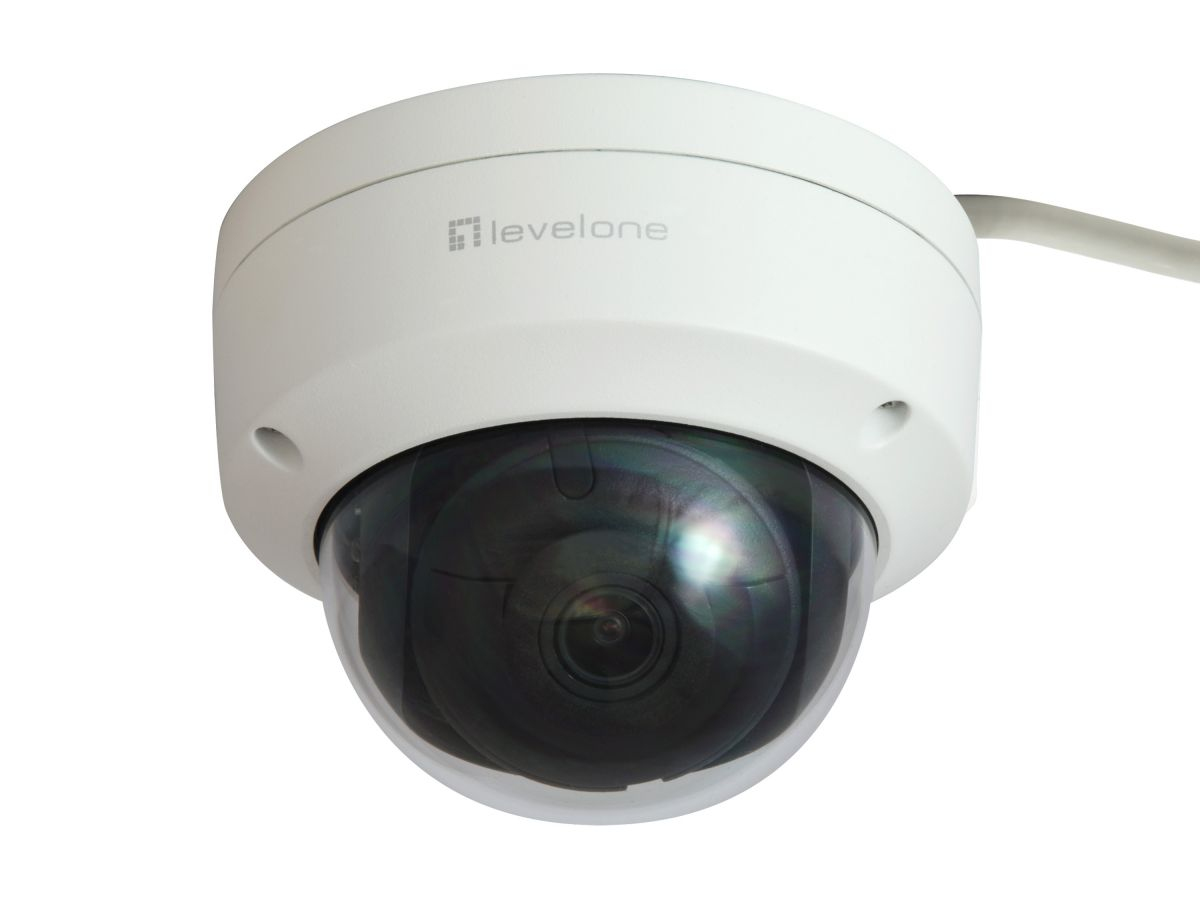

The LevelOne FCS-3404 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 6-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3404 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Design | |
| Weatherproof | Yes |
| Country of origin | China |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Lens viewing angle, horizontal | 107° |
| Lens viewing angle, vertical | 57° |
| Lens viewing angle, diagonal | 128° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 1.6 |
| Zoom capability | Yes |
| Digital zoom | 8x |
| Fixed focal length | 2.8 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
| Privacy masking | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3200 x 1800 pixels |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1512, 2688 x 1520, 3200 x 1800 |
| Total megapixels | 6 MP |
| Audio | |
| Voice codecs | G.711, G.722.1, G.726, MP2L2, PCM |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Audio system | 2-way |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
| Storage | |
| Maximum memory card size | 128 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Terminal block port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Intrusion, Line crossing detection, Missing object, Vehicle detection |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Heartbeat | Yes |
| Digital watermark | Yes |
| Anti-flicker | Yes |
| Power | |
| Power source type | DC, PoE |
| Power consumption (max) | 7.5 W |
| Power consumption (Power over Ethernet (PoE)) | 9 W |
| DC output voltage | 12 |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Package type | Box |
| Width | 82 mm |
| Depth | 110 mm |
| Height | 110 mm |
| Weight | 500 g |
| Package width | 108 mm |
| Package height | 134 mm |
| Package depth | 134 mm |
| Package weight | 800 g |
| Packaging data | |
| Package type | Box |
| Package width | 108 mm |
| Package height | 134 mm |
| Package depth | 134 mm |
| Package weight | 800 g |
| Sustainability | |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Package type | Box |
| Manual | Yes |
| Technical details | |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Logistics data | |
| Master (outer) case width | 568 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 590 mm |
| Master (outer) case gross weight | 21 kg |
| Products per master (outer) case | 24 pc(s) |
| Pallet gross height | 143 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Customs product code (TARIC) | 8525890000 |
| Harmonized System (HS) code | 852589 |
