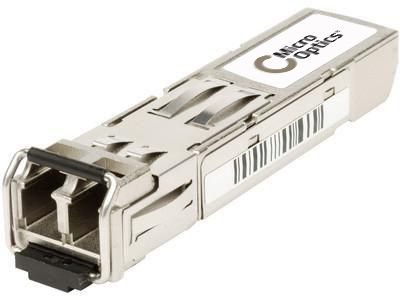

Lanview MO-C-S85123-3CLM network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
- Brand: Lanview
- Category:
- SKU: MO-C-S85123-3CLM
- EAN: 5711045396571
SFP 1 Gbps, MMF, 550 m, LC, DDMI support, Compatible Cisco GLC-SX-MMD
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Cisco GLC-SX-MMD Compile |
MO-C-S85123-3CLM | |||
|
- SFP (mini-GBIC) transceiver module (equivalent to: Cisco GLC-SX-MM, Cisco GLC-SX-MMD) - 1GbE - 1000Base-SX - for Cisco 38XX; ASA 55XX; Catalyst ESS9300; Integrated Services Router 11XX |
MO-C-S85123-3CLM |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
Cisco GLC-SX-MMD Compatible SFP 850nm MMF 550m LC 850nm 550m DDMI **100% Cisco Compatible** |
MO-C-S85123-3CLM | |||
Description
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | Cisco GLC-SX-MM, GLC-SX-MMD, GLC-SX-MM=, MO-SFP2132CS |
| Brand compatibility | Cisco |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | Cisco GLC-SX-MM, GLC-SX-MMD, GLC-SX-MM=, MO-SFP2132CS |
| Brand compatibility | Cisco |
| Form factor | SFP |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 10 g |
| Package depth | 68 mm |
| Package width | 108 mm |
| Package height | 25 mm |
| Package weight | 34 g |
| Technical details | |
| Package width | 108 mm |
| Package height | 25 mm |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Compatible products | Cisco GLC-SX-MM, GLC-SX-MMD, GLC-SX-MM=, MO-SFP2132CS |
| Cabling technology | 10/100/1000 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package type | Window box |
| Package depth | 68 mm |
| Package width | 108 mm |
| Package height | 25 mm |
| Package weight | 34 g |
| Packaging content | |
| Package type | Window box |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
