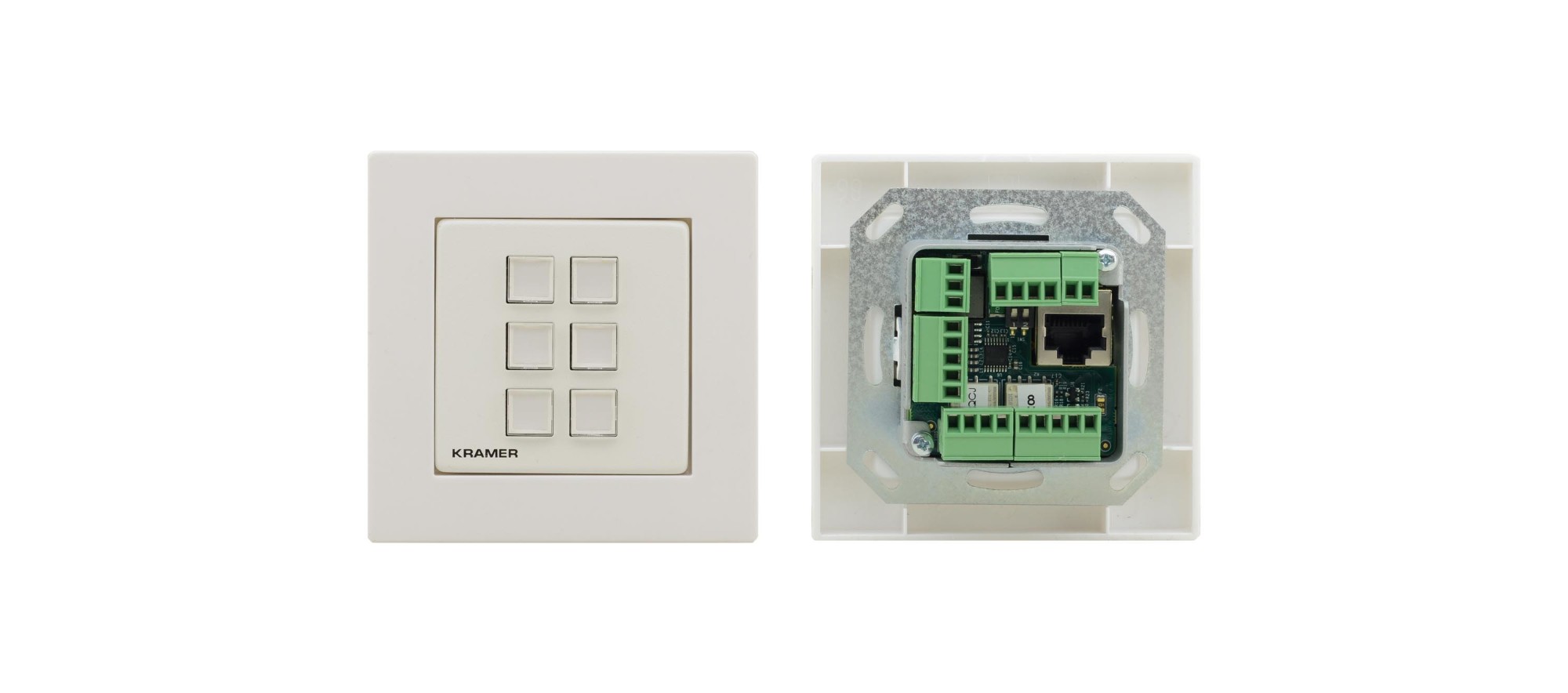

Kramer Electronics RC-206/EU-80/86(W) push-button panel White

Kramer Electronics RC-206/EU-80/86(W) push-button panel White

6–Button I/O Control Keypad, EU

Trade Prices

Distributor Product SKU Stock Updated Price
Videnda Distribution

EU & UKsize Control Keypad with EU & UK White Frames (RC-206/EU80/86(W))

30-804925390 Register free see stock

Description

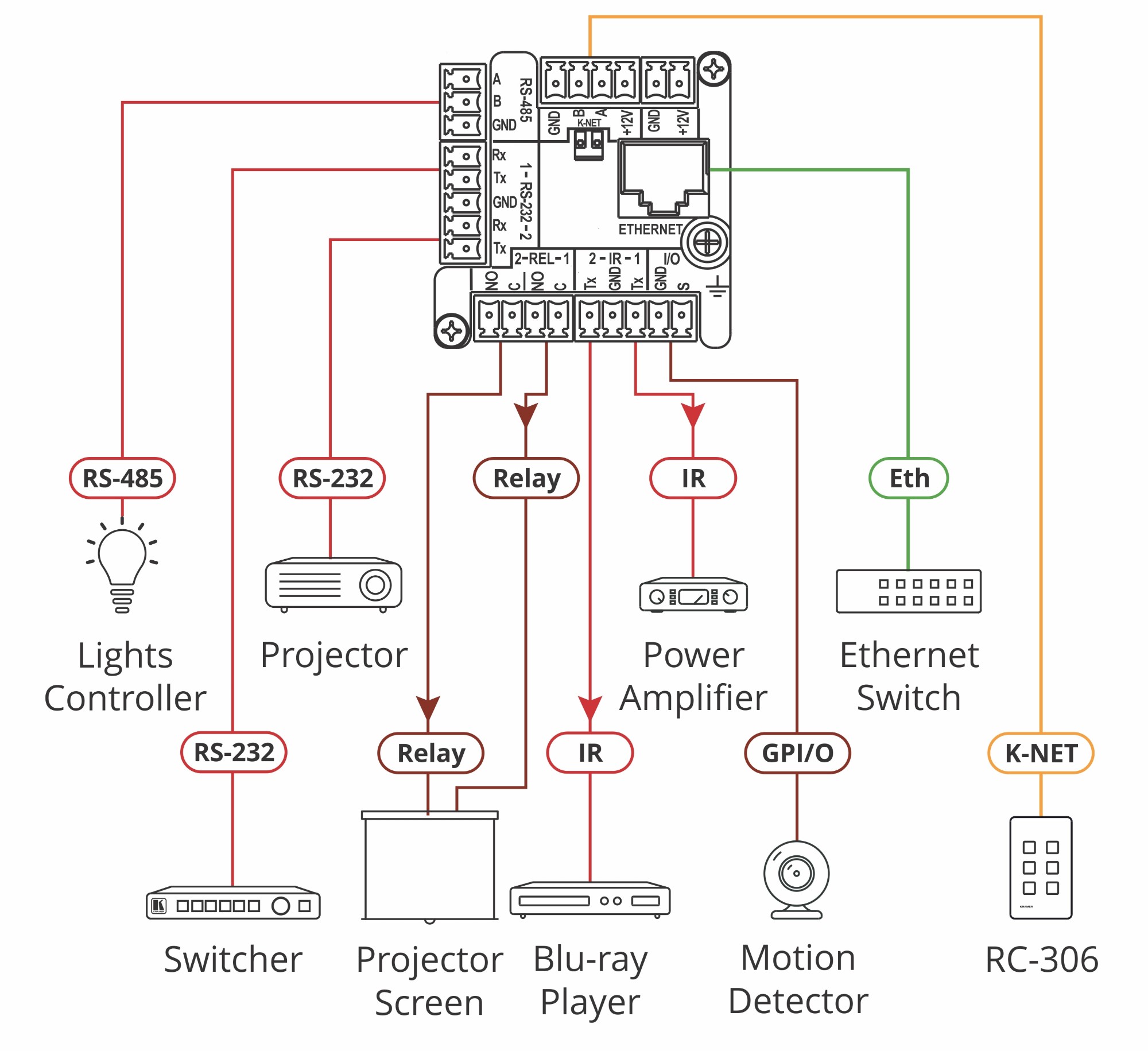

RC−206 is a compact 6−button control keypad that fits US, European and UK standard 1−gang wall junction boxes. Easy to deploy, RC−206 fits decoratively within a room design and is perfectly suited for use as a user interface keypad within a Kramer Control system. Using K−Config, tap into the rich, built−in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end−user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades. Multiple keypads can be linked together side−by−side or at a distance, via a single K–NET™ cable carrying both power and communication, providing uniform design and user experience.

Specifications

Technical details
CertificationCE, UL, RoHS, WEEE
Number of buttons6 buttons
Connector(s)RJ-45, RS-232, RS-485, 2 x Relay, GPI/O, Mini USB
Weight & dimensions
Width80 mm
Depth47 mm
Height80 mm
Weight100 g
Package width136 mm
Package weight700 g
Package height100 mm
Package depth232 mm
Power
Input voltage12 V
Maximum current2 A
Power source typeDC
Design
Product colourWhite
