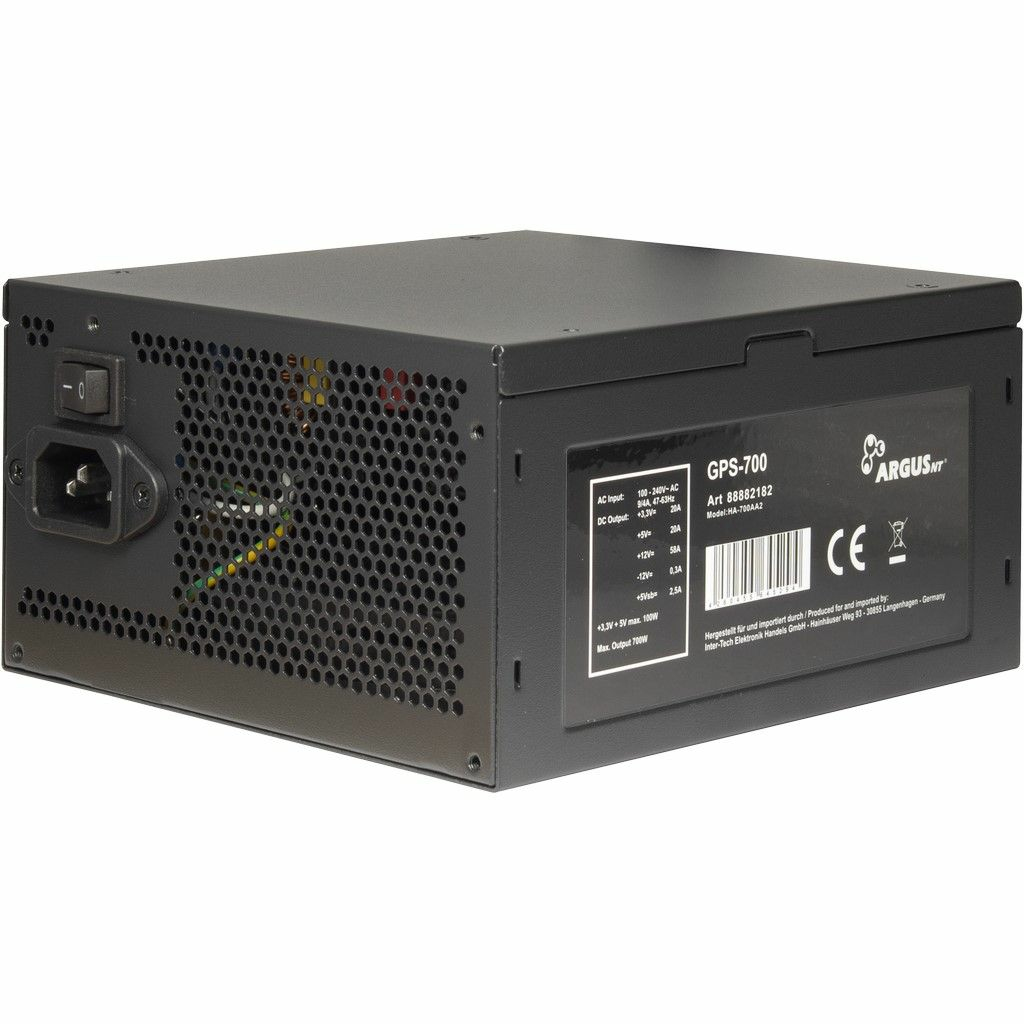

Inter-Tech ArgusNT GPS-700 power supply unit 700 W 20+4 pin ATX ATX Black
- Brand: Inter-Tech
- Category:
- SKU: 88882182
- EAN: 4260455645294
ARGUS GPS-700, 1x 140mm, 86 x 150 x 160mm, 80PLUS Gold, 1.97kg
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £147.00 | ||
| Amazon | New | £141.33 | ||
| Amazon | New | £111.71 | ||
| Amazon | New | £138.26 |
Description
The GPS series from Argus stands for powerful and reliable power supplies in the levels 600W, 700W and 800W. Whether for upgrading existing systems or for configuring new ones, thanks to 80PLUS® Gold 230V EU certification and state-of-the-art components, the GPS series will keep you up to date. To secure the built-in hardware and the power supply unit itself, we did not make any compromises and have equipped the power supply units of the GPS series with a total of five protective circuits (OPP, SCP, OVP, OCP and NLP).

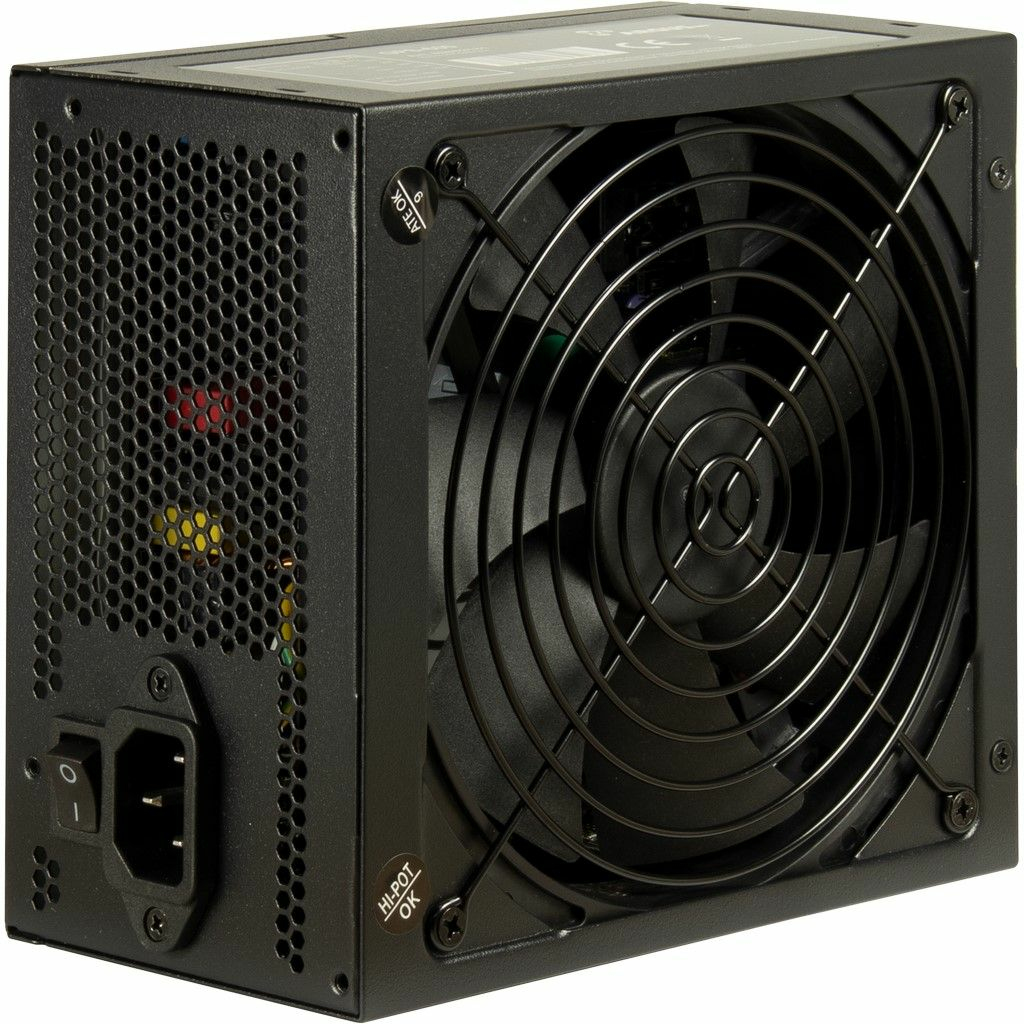

The entire GPS series is equipped with a smooth-running 140mm fan and an intelligent fan control, or IFC for short. The IFC ensures that the fan of the power supply only starts cooling when the internal temperature of the power supply exceeds 65°C. If the internal temperature falls below 65°C, the fan is switched back to idle mode - this keeps the noise level of the power supply unit extremely low.
When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions - saving space and time when laying. The GPS-700 has four PCIe 6+2pin and six S-ATA connections available. With 58A on the 12V line, there is more than enough power available for potent hardware. We round off the overall package with a 60-month manufacturer's guarantee for the entire GPS series.
The entire GPS series is equipped with a smooth-running 140mm fan and an intelligent fan control, or IFC for short. The IFC ensures that the fan of the power supply only starts cooling when the internal temperature of the power supply exceeds 65°C. If the internal temperature falls below 65°C, the fan is switched back to idle mode - this keeps the noise level of the power supply unit extremely low.
When it comes to the variety of connections, we also kept an eye on the greatest possible efficiency and, with the exception of the 20+4pin connection, designed all other cable strands as flat ribbon versions - saving space and time when laying. The GPS-700 has four PCIe 6+2pin and six S-ATA connections available. With 58A on the 12V line, there is more than enough power available for potent hardware. We round off the overall package with a 60-month manufacturer's guarantee for the entire GPS series.
Specifications
| Cooling | |
|---|---|
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Power | |
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 9/4.5A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 700 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 58 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
| Efficiency | 93.3% |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 2.4 |
| Noise level | 35.6 dB |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Cables included | AC |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.97 kg |
| Packaging data | |
| Cables included | AC |
| Package type | Box |
| Package weight | 2.31 kg |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Harmonized System (HS) code | 84733020 |
