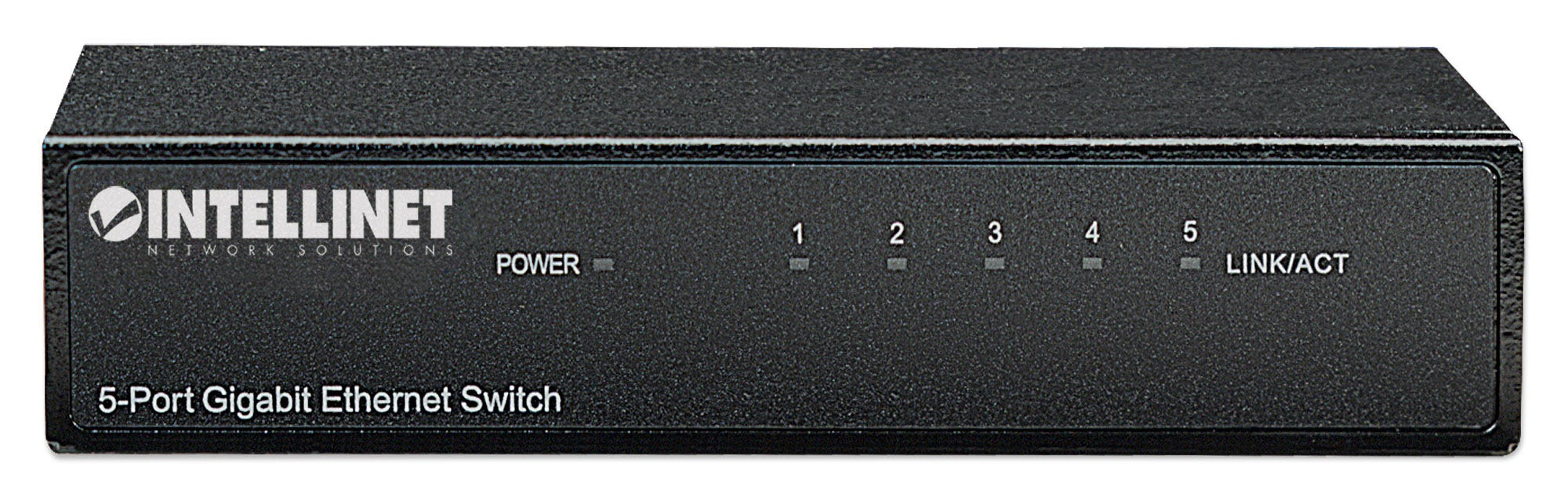

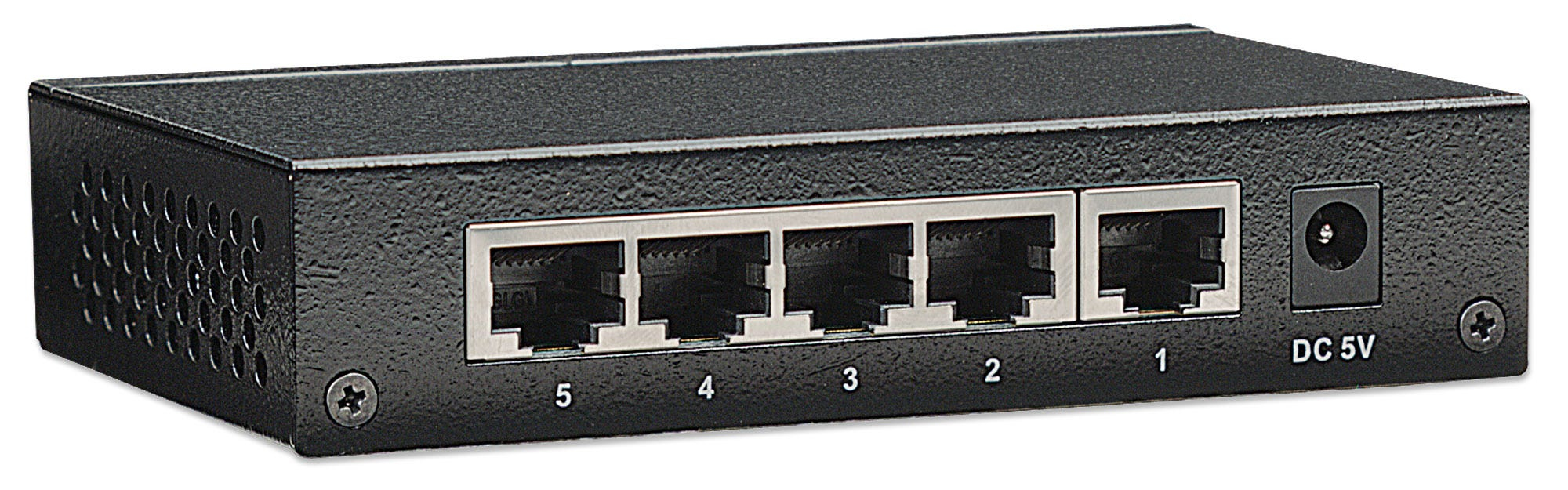

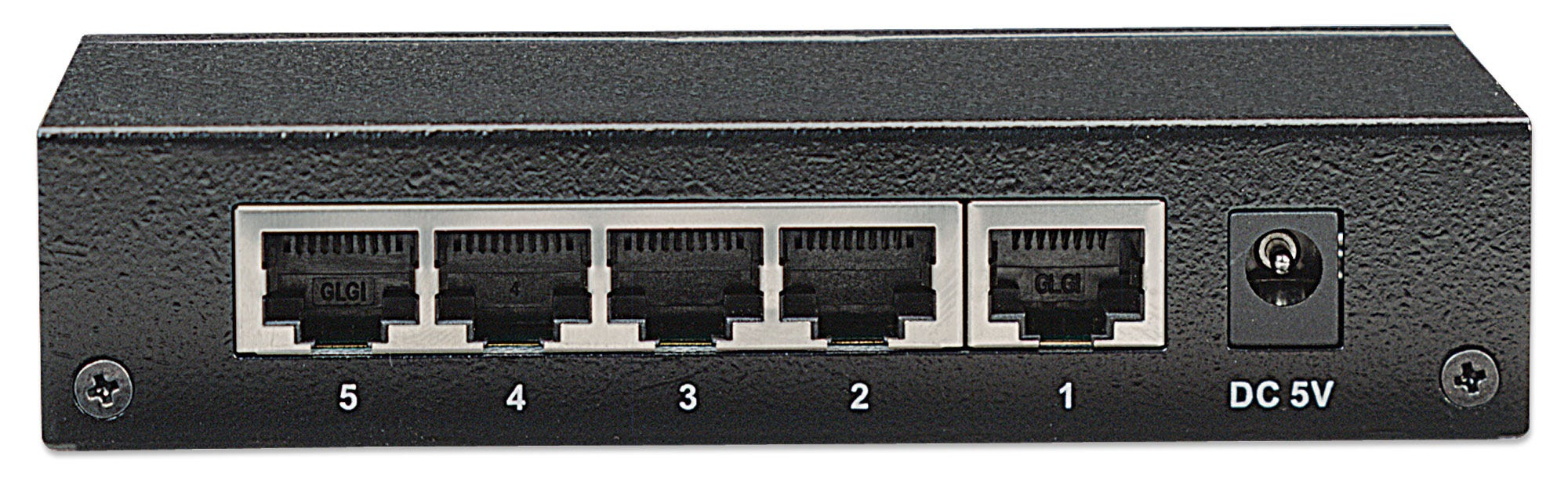

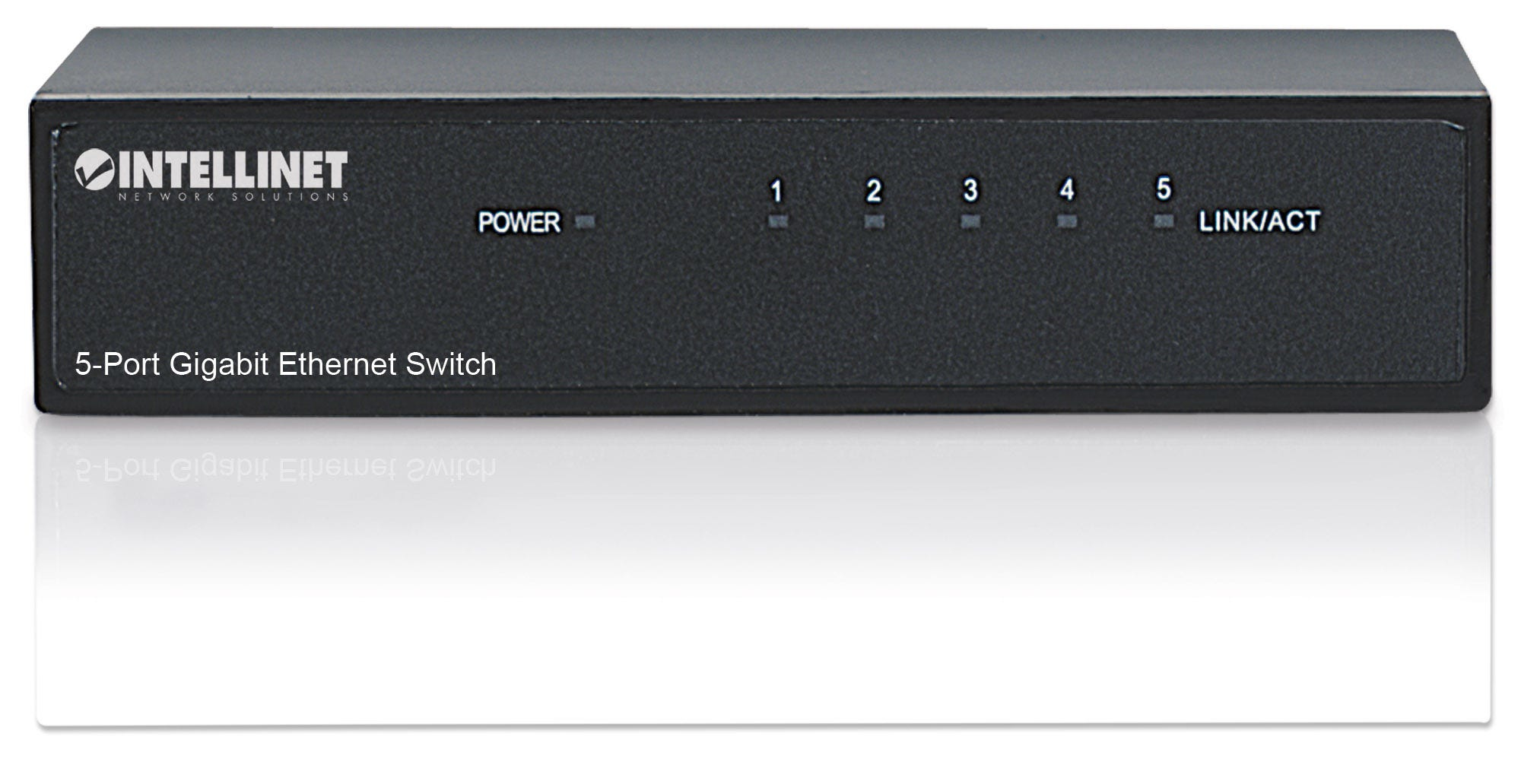

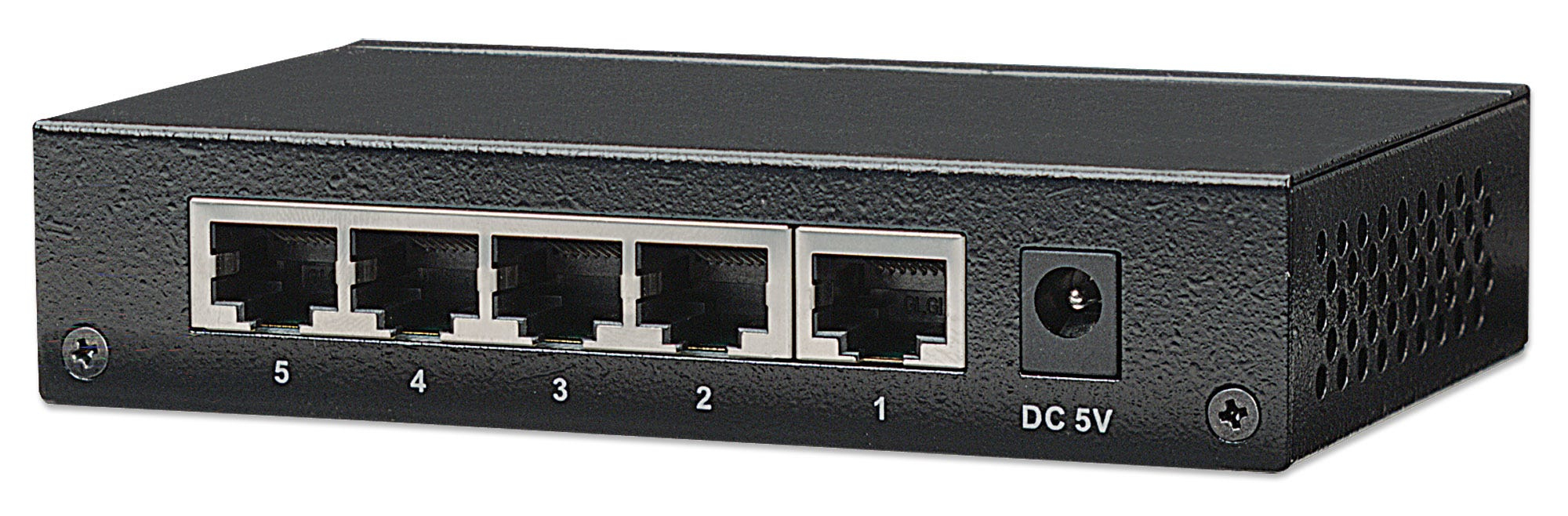

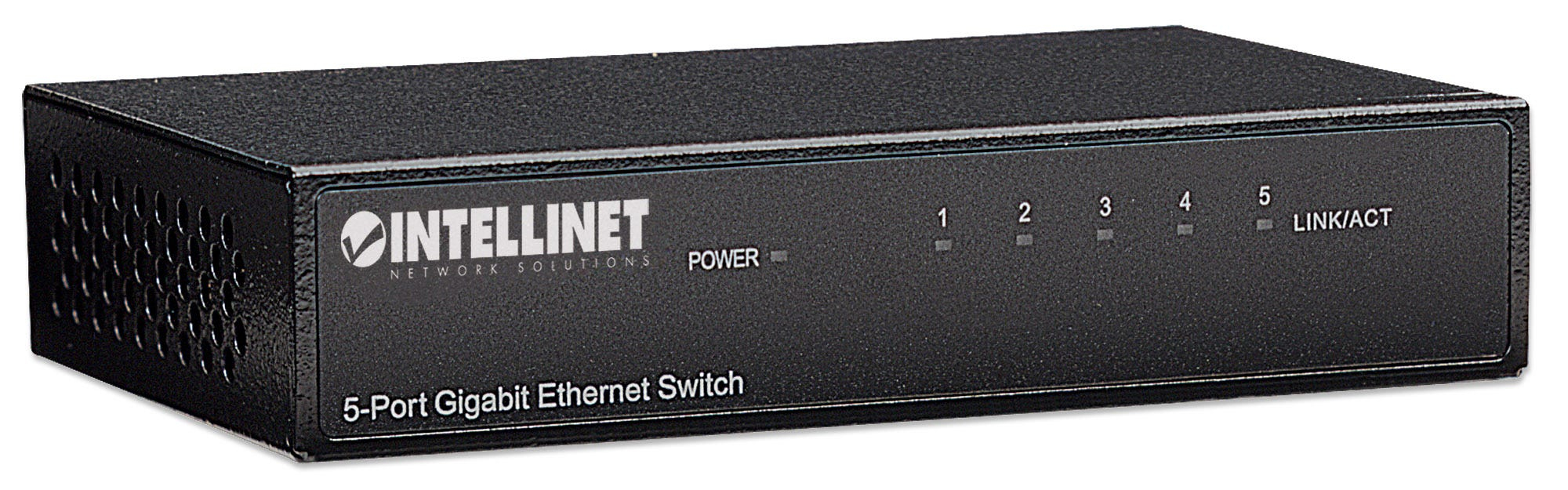

Intellinet 5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
- Brand: Intellinet
- Category:
- SKU: 530378
- EAN: 7666235303786 0766623530378 08 ...3530378 0809186268545 0830553079525 0803982925305 0754262023634 1320010373024 0078667271149 0807030493013 5054484180227 0851975727726 0086000202750 0801940104847 0807320383321 6213759738009 0809385663509 0780320041883 0806296616914more
5-Port Gigabit Ethernet Switch, Desktop Size, Metal Housing, IEEE 802.3az (Energy Efficient Ethernet)
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £62.18 |
Description
Easy to install, with auto-learning capabilities. _x000D_
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes five Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the five ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, flow control further ensures that your connections remain active even under extremely busy conditions.
_x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs. _x000D_
_x000D_
High-Speed Performance _x000D_
This desktop switch includes five Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications. _x000D_
_x000D_
Auto Features _x000D_
This network LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the five ports on this network LAN switch automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. _x000D_
_x000D_
Reliable Operation _x000D_
The Intellinet Network Solutions Gigabit Ethernet Switch supports flow control when operating in half duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store and forward switching method, flow control further ensures that your connections remain active even under extremely busy conditions.
Specifications
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Packet buffer memory | 0.112 MB |
| MAC address table | 1024 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Certification | FCC Class B, CE, RoHS |
| Power | |
| Power supply included | Yes |
| Input current | 1 A |
| DC input voltage | 5 V |
| Power connector | DC-in jack |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 78 mm |
| Height | 28 mm |
| Weight | 310 g |
| Packaging content | |
| Manual | Yes |
| Performance | |
| Packet buffer memory | 0.112 MB |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Memory | |
| Packet buffer memory | 0.112 MB |
| Certificates | |
| Certification | FCC Class B, CE, RoHS |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
