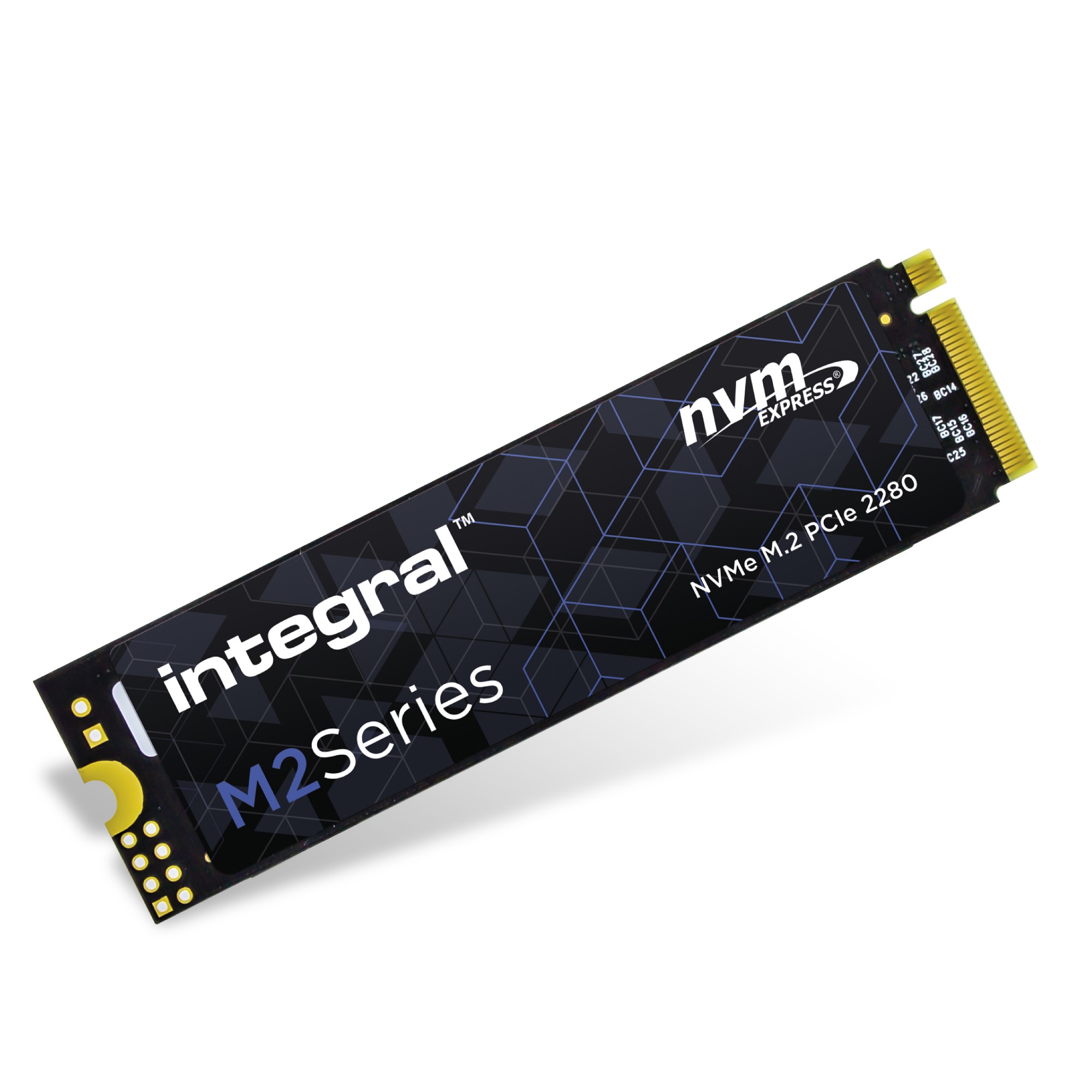

Integral 512GB SSD M.2 2280 NVME 1.4 PCIe Gen3 x4 R-3450MB/s W-2400MB/s TLC TBW 340 M2
- Brand: Integral
- Category:
- SKU: INSSD512GM280NM2
- EAN: 5055288447356
512GB SSD M.2 2280 NVME 1.4 PCIe Gen3 x4 R-3450MB/s W-2400MB/s TLC TBW 340 M2
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
512GB SSD M.2 2280 NVME 1.4 PCIe Gen3 x4 R-3450MB/s W-24000MB/s TLC TBW 340 M2 INTEGRAL |
INSSD512GM280NM2 | |||
|
512GB SSD NVME M.2 2280 |
ASM304511 | |||
|
512Gb M2 Series M.2 2280 Pcie |
INSSD512GM280NM2 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
512GB SSD M.2 2280 NVME 1.4 PCIe Gen3 x4 R-3450MB/s W-24000MB/s TLC TBW 340 M2 INTEGRAL |
INTINSSD512GM280NM2 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £35.09 | ||
| Amazon | New | £30.84 | ||
| Amazon | New | £45.02 |
Description
The M2 Series M.2 PCIe NVMe SSDs are up to seven times faster in performance when compared to SATA SSDs and are compatible with most computing hardware and software that support the NVME standard, including small form factor machines (e.g Intel NUC), Ultrabooks and enthusiast desktops
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 512 GB |
| Memory type | 3D TLC |
| Data transmission | |
| Read speed | 3450 MB/s |
| Write speed | 2400 MB/s |
| Random write (4KB) | 156000 IOPS |
| Random read (4KB) | 188000 IOPS |
| Data transfer rate | 8 Gbit/s |
| Endurance | |
| Mean time between failures (MTBF) | 1500000 h |
| Features | |
| Interface | PCI Express 3.1 |
| Component for | PC/Laptop |
| NVMe | Yes |
| TBW rating | 256 |
| SSD capacity | 512 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 3450 MB/s |
| TRIM support | Yes |
| Write speed | 2400 MB/s |
| Protection features | Shock resistant |
| Memory type | 3D TLC |
| Random write (4KB) | 156000 IOPS |
| Random read (4KB) | 188000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | No |
| Data transfer rate | 8 Gbit/s |
| Certification | CE, FCC |
| SSD form factor | M.2 |
| Power | |
| Power consumption (write) | 2970 W |
| Power consumption (read) | 2822 W |
| Power consumption (idle) | 1.056 W |
| Operating voltage | 3.3 V |
| Certificates | |
| Certification | CE, FCC |
| Performance | |
| Interface | PCI Express 3.1 |
| Component for | PC/Laptop |
| NVMe | Yes |
| TBW rating | 256 |
| SSD capacity | 512 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 3450 MB/s |
| TRIM support | Yes |
| Write speed | 2400 MB/s |
| Memory type | 3D TLC |
| Random write (4KB) | 156000 IOPS |
| Random read (4KB) | 188000 IOPS |
| Mean time between failures (MTBF) | 1500000 h |
| Hardware encryption | No |
| Data transfer rate | 8 Gbit/s |
| Design | |
| Component for | PC/Laptop |
| Protection features | Shock resistant |
| Certification | CE, FCC |
| SSD form factor | M.2 |
| Weight & dimensions | |
| Width | 22 mm |
| Weight | 10 g |
| Height | 2.25 mm |
| Depth | 80 mm |
| Package width | 115 mm |
| Package depth | 132 mm |
| Package height | 57 mm |
| Package weight | 17 g |
| Packaging data | |
| Package width | 115 mm |
| Package depth | 132 mm |
| Package height | 57 mm |
| Package weight | 17 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Interface | PCI Express 3.1 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Protection features | Shock resistant |
| Operating relative humidity (H-H) | 5 - 95% |
| Hardware encryption | No |
| SSD form factor | M.2 |
| Compliance certificates | RoHS |
| Other features | |
| Compliance certificates | RoHS |
