Integral 1TB-1024GB SSD M.2 2230 NVME 1.3 PCIe Gen3 x4 R-3400MB/s W-3000MB/s TLC TBW 750 (single-sided chips)
- Brand: Integral
- Category:
- SKU: INSSD1TM2230G3
- EAN: 5055288450004
1TB-1024GB SSD M.2 2230 NVME 1.3 PCIe Gen3 x4 R-3400MB/s W-3000MB/s TLC TBW 750 (single-sided chips)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
1TB-1024GB SSD M.2 2230 NVME 1.3 PCIe Gen3 x4 R-3400MB/s W-3000MB/s TBW 720 INTEGRAL (single-sided chips) |
INSSD1TM2230G3 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
1TB-1024GB SSD M.2 2230 NVME 1.3 PCIe Gen3 x4 R-3400MB/s W-3000MB/s TBW 720 INTEGRAL (single-sided chips) |
INTINSSD1TM2230G3 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £89.81 | ||
| Amazon | New | £69.95 | ||
| Amazon | New | £97.99 | ||
| Amazon | New | £109.95 | ||
| Amazon | New | £79.95 |
Description
The Integral Memory M.2 2230 NVMe Gen3 x4 PCIe SSD’s compact 2230 form factor is designed to upgrade even the most space limited devices including the Valve Steam Deck, ASUS ROG Ally, Microsoft Surface Pro and other ultra-thin tablets and laptops, achieving impressive read speeds of up to 3400MB/s, and write speeds reaching 3000MB/s. Drastically reducing operating system boot times with significantly lower power consumption than traditional hard disk drives (HDD), these latest NVMe Gen3 2230 SSDs are the ideal solution for supercharging your handheld games console, as well as for upgrading work and home PCs and laptops. Coupled with the latest in error detection and correction and end-to-end data protection the 2230 Gen3 delivers best in class performance.
Specifications
| Hard drive | |
|---|---|
| SSD capacity | 1 TB |
| Memory type | TLC |
| Data transmission | |
| Read speed | 3400 MB/s |
| Write speed | 3000 MB/s |
| Endurance | |
| Mean time between failures (MTBF) | 1000000 h |
| Features | |
| Interface | PCI Express 3.0 |
| Component for | Universal |
| NVMe | Yes |
| NVMe version | 1.3 |
| TBW rating | 750 |
| SSD capacity | 1 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 3400 MB/s |
| TRIM support | Yes |
| Write speed | 3000 MB/s |
| Memory type | TLC |
| Mean time between failures (MTBF) | 1000000 h |
| Hardware encryption | No |
| Certification | UKCA, CE, FCC, RoHS |
| SSD form factor | M.2 |
| Compatible products | Steam Deck, PCs, NUCs, ROG Ally, Microsoft Surface Pro Series, Dell, HP, Lenovo Ultrabook's & Tablet |
| Power | |
| Power consumption (write) | 3.21 W |
| Power consumption (read) | 2.85 W |
| Operating voltage | 3.3 V |
| Certificates | |
| Certification | UKCA, CE, FCC, RoHS |
| Performance | |
| Interface | PCI Express 3.0 |
| Component for | Universal |
| NVMe | Yes |
| NVMe version | 1.3 |
| TBW rating | 750 |
| SSD capacity | 1 TB |
| S.M.A.R.T. support | Yes |
| Read speed | 3400 MB/s |
| TRIM support | Yes |
| Write speed | 3000 MB/s |
| Memory type | TLC |
| Mean time between failures (MTBF) | 1000000 h |
| Hardware encryption | No |
| Compatible products | Steam Deck, PCs, NUCs, ROG Ally, Microsoft Surface Pro Series, Dell, HP, Lenovo Ultrabook's & Tablet |
| Design | |
| Component for | Universal |
| Certification | UKCA, CE, FCC, RoHS |
| SSD form factor | M.2 |
| Weight & dimensions | |

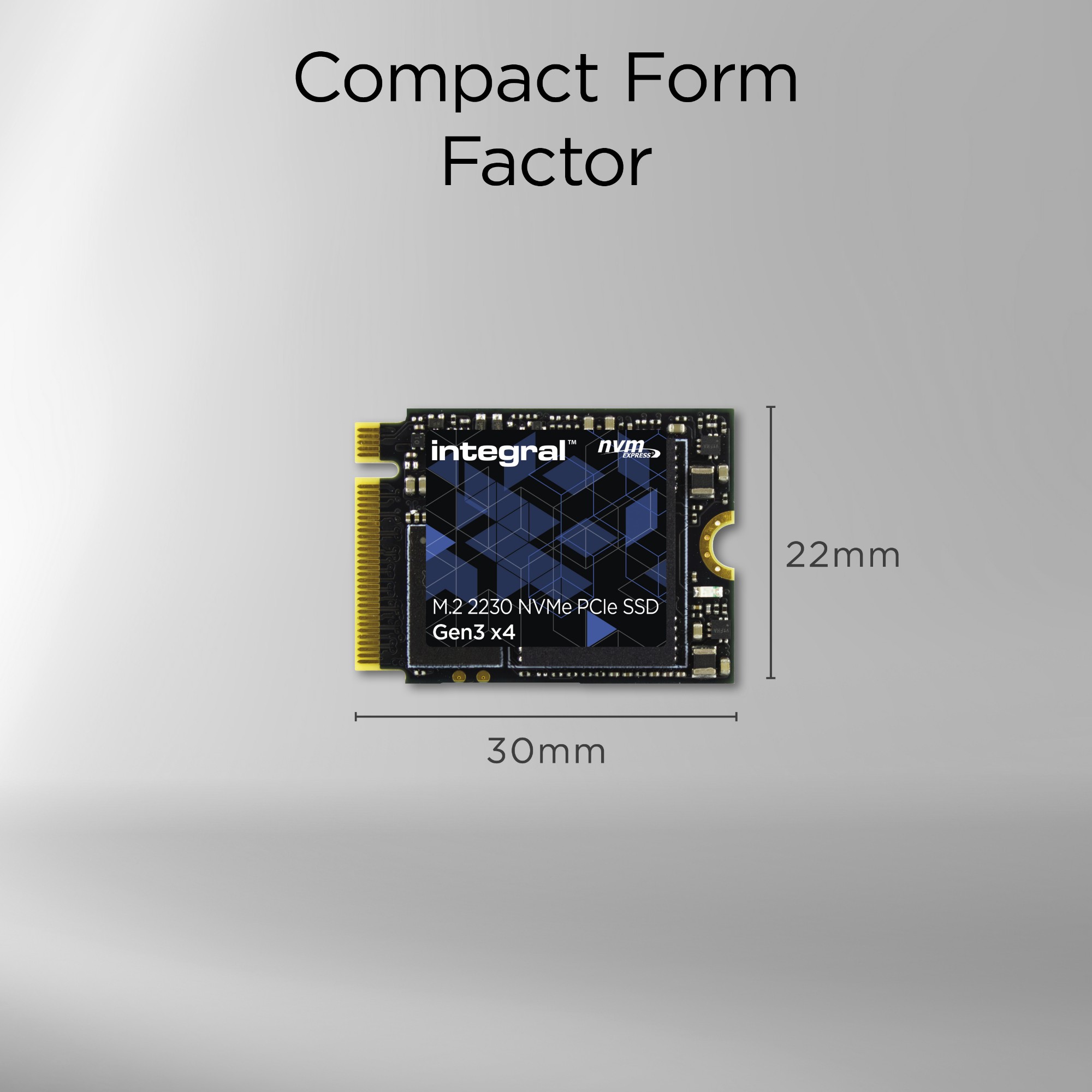

| Width | 22 mm |
| Weight | 2 g |
| Height | 30 mm |
| Depth | 0.8 mm |
| Package width | 55 mm |
| Package depth | 90 mm |
| Package height | 12 mm |
| Package weight | 9 g |
| Packaging data | |
| Package width | 55 mm |
| Package depth | 90 mm |
| Package height | 12 mm |
| Package weight | 9 g |
| Master (outer) case width | 190 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 130 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -45 - 85 °C |
| Technical details | |
| Interface | PCI Express 3.0 |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Storage temperature (T-T) | -45 - 85 °C |
| Hardware encryption | No |
| SSD form factor | M.2 |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Other features | |
| Compatible products | Steam Deck, PCs, NUCs, ROG Ally, Microsoft Surface Pro Series, Dell, HP, Lenovo Ultrabook's & Tablet |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Master (outer) case width | 190 mm |
| Master (outer) case length | 300 mm |
| Master (outer) case height | 130 mm |
