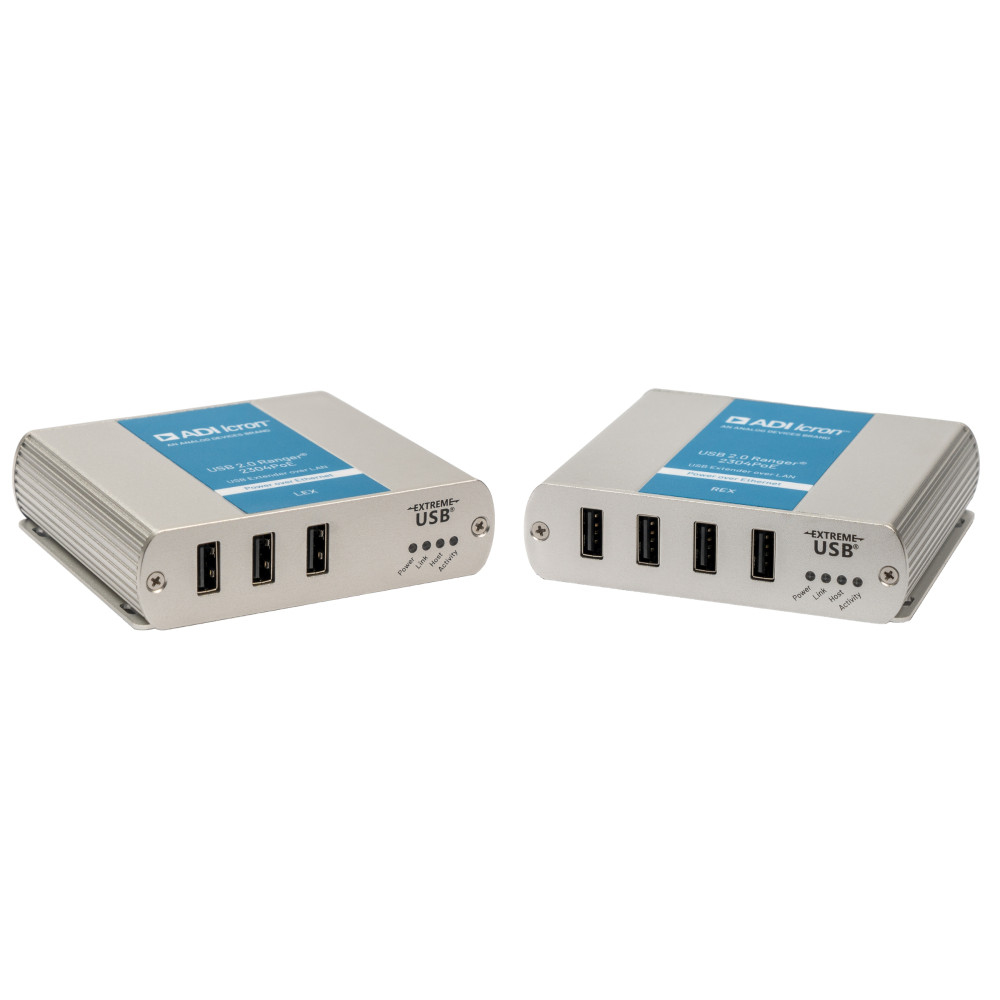

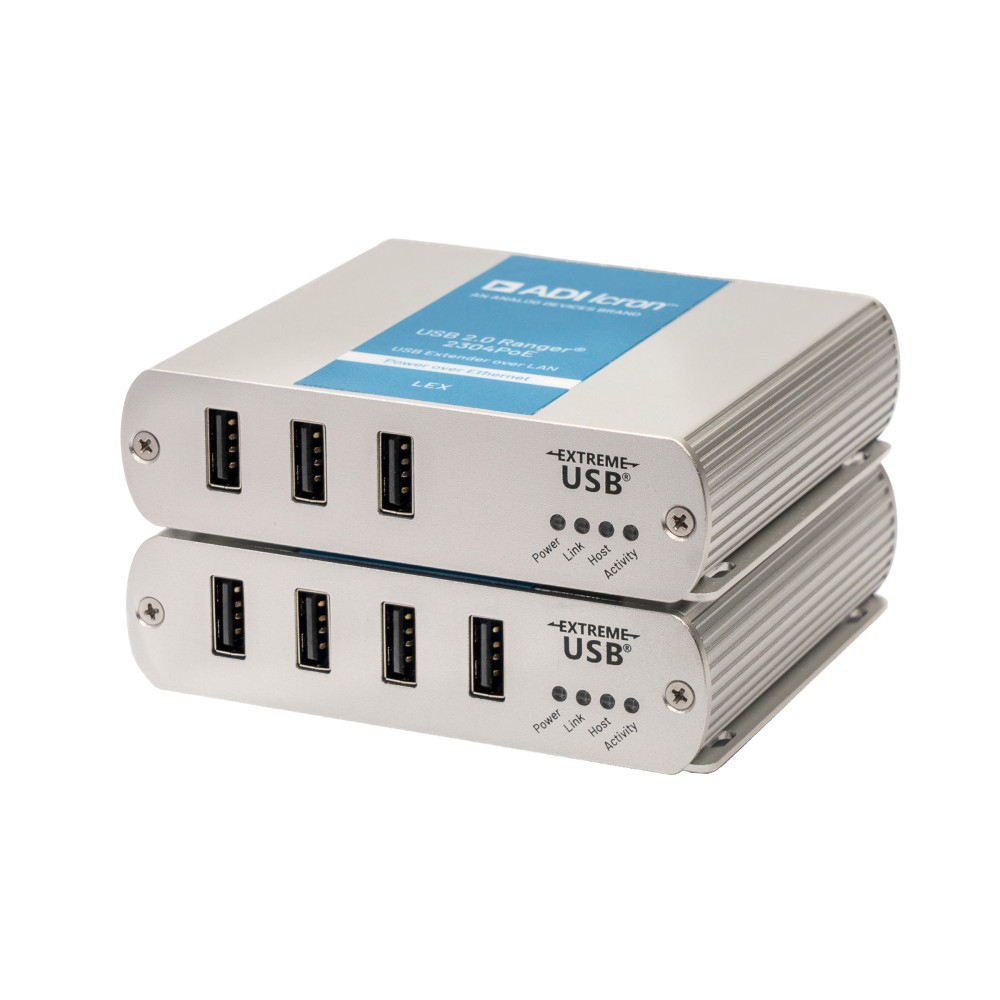

Icron USB 2.0 Ranger 2304PoE Network transmitter & receiver Grey 10, 100, 1000 Mbit/s
- Brand: Icron
- Category:
- SKU: 00-00465
- EAN:
3-Port LEX and 4-Port REX USB 2.0 Extender System, Power over Ethernet, USB A/B cable
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
00-00465 |
ICRON0000465 | |||
|
00-00465 |
ICRON0000465 |
Description
The USB 2.0 Ranger® 2304PoE enables you to connect and extend all USB 2.0 device types to hosts across a Power over Ethernet enabled Gigabit Ethernet Local Area Network (LAN) using existing cabling. This ExtremeUSB® extender system features 4-ports on the REX and three additional ports on the LEX eliminating the need to connect an external USB hub. Perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB 2.0 Ranger® 2304PoE allows users to extend USB 2.0/1.1 connections over a Power over Ethernet (PoE) GigE LAN or single CAT 5e/6/7 cable up to 100m. Extending over a PoE capable LAN reduces installation time and provides IT visibility.
This 4-port USB 2.0 LAN extender supports data rates at up to 480Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.
In addition to the standard 4-ports on the REX, the LEX comes with three USB A ports eliminating the need to connect an external USB hub to the host ideal and is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
The USB 2.0 Ranger® 2304PoE allows users to extend USB 2.0/1.1 connections over a Power over Ethernet (PoE) GigE LAN or single CAT 5e/6/7 cable up to 100m. Extending over a PoE capable LAN reduces installation time and provides IT visibility.
This 4-port USB 2.0 LAN extender supports data rates at up to 480Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.
In addition to the standard 4-ports on the REX, the LEX comes with three USB A ports eliminating the need to connect an external USB hub to the host ideal and is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
Specifications
| Performance | |
|---|---|
| Plug and Play | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Number of devices supported | 30 |
| Network | |
| Networking standards | IEEE 802.3at |
| Ports & interfaces | |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| DC-in jack | Yes |
| USB 2.0 ports quantity | 4 |
| Design | |
| Housing material | Aluminium |
| LED indicators | Activity, Link, Power, Host |
| Product colour | Grey |
| Power | |
| Power plug type | Type A |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Output voltage | 24 V |
| Output current | 1 A |
| Total Power over Ethernet (PoE) budget | 25.5 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Transmitter width | 10 cm |
| Transmitter depth | 8.6 cm |
| Transmitter height | 2.6 cm |
| Receiver width | 10 cm |
| Receiver depth | 8.6 cm |
| Receiver height | 2.6 cm |
| Cable length | 2 m |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | USB |
| Packaging data | |
| Package weight | 870 g |
| Technical details | |
| Plug and Play | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Activity, Link, Power, Host |
| Type | Network transmitter & receiver |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 480 Mbit/s |
| Cable types supported | Cat5e, Cat6, Cat7 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, RoHS |
| Colour | |
| Product colour | Grey |
| System requirements | |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, RoHS |
