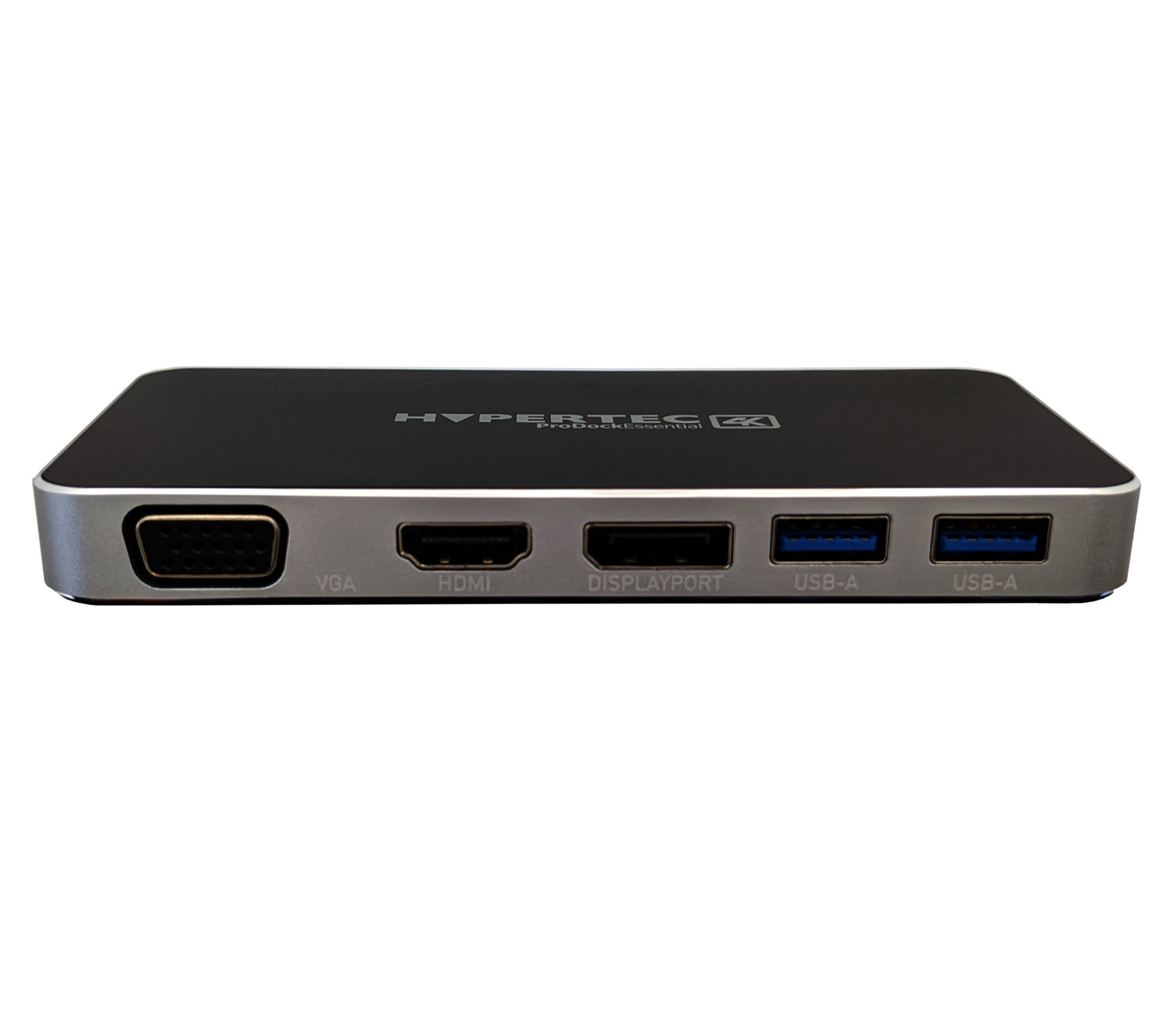

Hypertec ProDock EssentiaI 4K - Universal USB-C Dock with HDMI,VGA and DisplayPort
- Brand: Hypertec
- Category:
- SKU: HYP-USBCPD-E4K
- EAN: 5050914067182
ProDockEssential 4K - Universal USB-C Dock with HDMI, VGA and DisplayPort
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ProDock EssentiaI 4K - Universal USB-C Dock with HDMI,VGA and DisplayPort |
HYP-USBCPD-E4K |
Description
Experience simple and effective USB-C connectivity with the ProDockEssential 4K Universal USB-C Docking Station. This docking station offers a straightforward solution for charging, data transfer, and video display from USB-C devices. Users can choose from multiple video output options: 4K HDMI, 1080p VGA, or 4K DisplayPort, and can utilize all three simultaneously (up to 1080p at 60Hz).

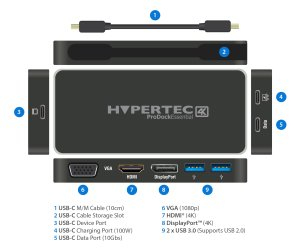

Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Country of origin | China |
| Product colour | Black |
| Brand compatibility | Any brand |
| Plug and Play | Yes |
| Charging function | Yes |
| Certification | RoHS, REACH |
| Display modes | Single, Dual, Triple, Extended, Duplicate |
| Maximum refresh rate | 60 Hz |
| USB data transfer rates | 5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Any brand |
| Plug and Play | Yes |
| Maximum operating temperature | 40 °C |
| Charging function | Yes |
| Warranty period | 1 year(s) |
| Power | |
| Power source type | USB |
| Input current | 4.3 A |
| AC input voltage | 20 V |
| Power supply | 100 W |
| USB cable length | 0.1 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mac compatibility | Yes |
| Mobile operating systems supported | Android |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Weight | 93 g |
| Width | 63 mm |
| Depth | 127 mm |
| Height | 14 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Country of origin | China |
| Product colour | Black |
| Certification | RoHS, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package dimensions (WxDxH) | 133 x 20 x 150 mm |
| Packaging content | |
| Cables included | USB Type-C |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | RoHS, REACH |
| Other features | |
| USB data transfer rates | 5000 Mbit/s |
| USB ports quantity | 5 |
| USB port | Yes |
| Package dimensions (WxDxH) | 133 x 20 x 150 mm |
| Maximum operating temperature | 40 °C |
