Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
USB Kit: 1D, PDF417, 2D ivory scanner (3320g-4), 2.9m (9.5�) straight USB Type A, cable (52-52559-N-3-FR), documentation |
3320G-4USB-0 | |||
|
Vuquest 3320g - Barcode scanner - handheld - 2D imager - decoded - USB |
1T71547 | |||
|
Vuquest 3320g, 2D, USB-kit |
3320G-4USB-0 | |||
|
VUQUEST USB KIT 1D PDF417 2D IV View on Xvantage |
1T71547 | |||
| Ingram Micro CS |
VUQUEST USB KIT 1D PDF417 2D IV |
1T71547 | |||
|
3320g, 2D, multi-IF, kit (USB), light grey |
hw3320g4kit-usb | |||
|
Vuquest 3320g Desktop Barcode Scanner - Cable Connectivity - Ivory - 1D, 2D - Imager |
STD10108824 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - Vuquest 3320g 2D USB-kit |
3320G-4USB-0 | |||
Description

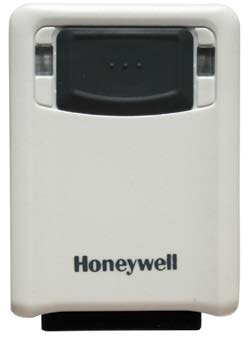

The Honeywell Vuquest3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner’s sleek and elegant design also blends seamlessly in retail environments.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | PDF417 |
| Optical sensor resolution | 838 pixels |
| Yaw reading angle | -65 - 65° |
| Sensor type | Photo diode |
| Scanner type | 1D/2D |
| Pitch reading angle | -45 - 45° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP53 |
| Product colour | Ivory |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP53 |
| Product colour | Ivory |
| Power | |
| Power consumption | 450 mA |
| Power source type | DC |
| Power consumption (typical) | 2.3 W |
| Power consumption (standby) | 0.45 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 51 mm |
| Depth | 73 mm |
| Height | 26 mm |
| Weight | 77 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP53 |
| Product colour | Ivory |
| Harmonized System (HS) code | 84716070 |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
