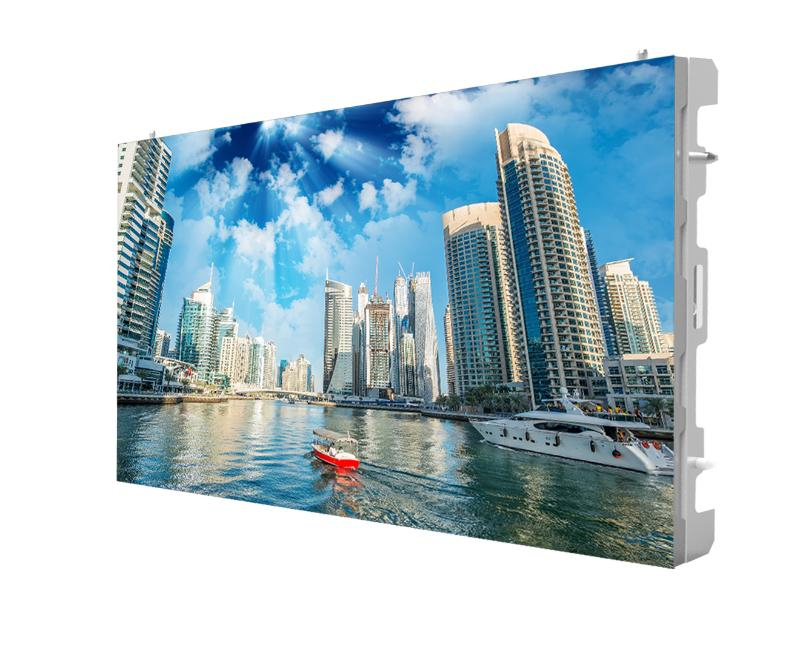

Hikvision DS-D4215FI-CWFH/III video wall display LED Indoor

P1.5, SMD Triad LED, 384 × 216, 0.2025 m², 409600 dots/m², 800 cd/m², 5000:1, 3840 Hz, 160°/160°, 110-220 VAC, 5.4 kg

Trade Prices

Distributor Product SKU Stock Updated Price
Mentor (UK)

Full-Colour LED Display

 DS-D4215FI-CWFH/III Register free see stock

Description

DS-D4215FI-CWFH is the new generation small pixel pitch indoor full-color LED display. LED video wall features in seamlessness, high brightness/contrast, wide viewing angle, and accurate color restoration, achieving good visual effect. It is widely used in places such as monitoring center, command center, conference room, report hall, and exhibition hall.

Specifications

Display
Display technologyLED
Display resolution384 x 216 pixels
HD type4K Ultra HD
Pixel pitch1.5625 x 1.5625 mm
Display brightness800 cd/m²
Display number of colours281 trillion colours
Colour temperature (min)3000 K
Colour temperature (max)10000 K
Contrast ratio (typical)5000:1
Native refresh rate3840 Hz
Viewing angle, horizontal160°
Viewing angle, vertical160°
Grayscale depth16 bit
Panel life100000 h
Display pixel density409600 dot/m²
Display area0.2025 m²
Color uniformity≤ ± 0.003Cx
LED backlightYes
Display refresh rates supported3840 Hz
Design
Placement supportedIndoor
OrientationHorizontal
Wall mountableYes
VESA mountingNo
Front maintenanceYes
International Protection (IP) codeIP60
Product colourGrey
PurposeCommercial
LED typeSurface-mounted device (SMD)
Module component2x4
Frame materialAluminium
Power
AC input voltage110 - 220 V
AC input frequency60 Hz
Display power consumption (max)450 W/m²
Display power consumption (average)150 W/m²
Operational conditions
Operating temperature (T-T)-10 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)10 - 80%
Storage relative humidity (H-H)10 - 80%
Weight & dimensions
Width600 mm
Depth50.9 mm
Height337.5 mm
Weight5.4 kg
Packaging data
Package width796 mm
Package depth192 mm
Package height484 mm
Package weight9.6 kg
