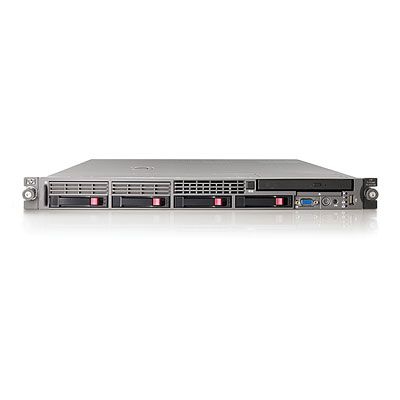

Hewlett Packard Enterprise ProLiant DL360 G5 4M Base Model server

  • Brand: HPE
  • Category:
  • SKU: 399524-B21
  • EAN: 3662655005426 0882780150355 57 ...0150355 5711045862663more

Trade Prices

Distributor Product SKU Stock Updated Price
Direct Hardware Supply

HP PROLIANT DL360 G5 BASE MODEL SERVER

 399524-B21 Register free see stock

Related Products

Description

Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the DL360 is optimized for space constrained installations. Quad-core and Dual-core Xeon processors, DDR2 Fully Buffered DIMMs, Serial Attached SCSI (SAS) and PCI Express technology provide a high performance system ideal for the full range of scale out applications. What's more, the DL360 G5 steps up the fault tolerant in an ultra dense platform with redundant power, redundant fans, mirrored memory or online spare memory, embedded RAID capability, and full-featured remote Lights-Out management.

Features

Specifications

Processor
Motherboard chipsetIntel 5000P
Multi processor capable descriptionUpgradeable to quad or dual processing; Future upgradeable to Xeon Series 5300 Quad-Core, or 5100 Dual-Core processors
Hard drive
Disk subsystem controllerPerformance Models: HP Smart Array P400i/256MB BBWC Controller (RAID 0/1/1+0/5/6) Available upgrades: 512MB memory battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6; Base Models: HP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5) Available upgrades: 512MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6, or battery-backed write cache for RAID 0/1/1+0/5/6; Entry Models: HP Smart Array E200i/64MB Controller (RAID 0/1/1+0) Available upgrades: 128MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5.
Memory
Memory slots8 DIMM slots
Maximum internal memory32 GB
Internal memory typeDDR2-SDRAM
Memory upgrade32 GB
Optical drive
Optical drive type-
Graphics
Maximum graphics adapter memory32 MB
Graphics adapterES1000
Networking
Networking featuresTwo Embedded NC373i Multifunction Gigabit Server Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI and RDMA through optional ProLiant Essentials Licensing Kits
Ports & interfaces
I/O portsKeyboard: 1; Mouse: 1; Serial: 1; Video: 1; USB 2.0 Ports: 2 rear, 1 front, 1 internal; Network RJ-45: 2; iLO 2 remote management port: 1
Expansion slotsTwo PCI-Express expansion slots: (1) full-length, full-height slot; (1) low-profile slot; Front or rear accessible video port
Performance
Compatible operating systemsMicrosoft Windows 2000 Server; Microsoft Windows Server 2003; Novell NetWare; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; Solaris 10 32/64-bit; VMware Virtualization Software
Power
Power availabilityRated Steady-State Power: 700W
Power management700 W, Optional (1+ 1 redundant) power supply
Power supply type700 W, Optional (1+ 1 redundant) power supply
Power requirementsInput voltage 100 to 240 VAC, 50/60 Hz
Design
Rack mountingThe HP ProLiant DL360 quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000*, 9000, 10000 and HP series) with an adjustment range to fit a rack depth of 21.25" to 37.75".
Optical drive type-
Chassis typeRack (1U)
Operational conditions
Non-operating relative humidity (non-condensing)5 - 95%
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Relative humidity10 - 90%
Operating temperature (T-T)10 - 35 °C
Sound emission
Acoustic pressure emissions50 dB
Acoustic power emissions6.6 B/A
Video
Video card resolution1280 x 1024 x 16 M colors
Video RAM32 MB video standard
Video modes resolution1280 pixels
Software
Compatible operating systemsMicrosoft Windows 2000 Server; Microsoft Windows Server 2003; Novell NetWare; Red Hat Enterprise Linux; SUSE Linux Enterprise Server; Solaris 10 32/64-bit; VMware Virtualization Software
Management features
Security management descriptionPower-on password; Keyboard password; Diskette drive control; Diskette boot control; QuickLock, Network Server Mode; Removable CD and Diskette Drive Assembly; Serial interface control; Administrator's password; Disk configuration lock; Integrated Lights-Out has 12 customizable user accounts and SSL encryption; Integrated Lights-Out can be disabled via a Global Setting; iLO Advance Pack supports directory services integration and two-factor authentication
Manageability featuresHP Systems Insight Manager; SmartStart, ROM-Based Setup Utility (RBSU); Remote-Flash Redundant ROM; Integrated Management Log (IML); Server Health logging; Automatic Server Recovery-2 (ASR-2); System Insight Display (SID); Dynamic sector repairing and drive parameter tracking (with Smart Array controllers); Hot Spare Boot; Power Down Utility; Pre-Failure Warranty (covers processors, as well as SAS hard drives and memory)
Technical details
Internal mass storageHot Plug Serial Attached SCSI (SAS): 876 GB SAS (6 x 146 GB SAS); Hot Plug Serial ATA (SATA): 720 GB SATA (6 x 120 GB SATA)
Rack mountingThe HP ProLiant DL360 quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000*, 9000, 10000 and HP series) with an adjustment range to fit a rack depth of 21.25" to 37.75".
Chassis typeRack (1U)
Technical featuresMemory: Up to 32 GB of memory, supported by (8) slots of PC2-5300 Fully Buffered DIMMs (DDR2-667); 4:1 interleaving; memory mirroring; and online spare.
Drive baysUp to 6 SAS/SATA hot plug drive bays
Diskette driveYes
Weight & dimensions
Weight16.78 kg
Certificates
Compliance industry standardsACPI 1.0b Compliant; PCI 2.2 Compliant; WOL Support; Microsoft Logo certifications; PXE Support; USB 1.1 and 2.0 Compliant
Other features
Internal mass storageHot Plug Serial Attached SCSI (SAS): 876 GB SAS (6 x 146 GB SAS); Hot Plug Serial ATA (SATA): 720 GB SATA (6 x 120 GB SATA)
Dimensions (WxDxH)426.2 x 704.9 x 43.2 mm
Non-operating relative humidity (non-condensing)5 - 95%
Acoustic pressure emissions50 dB
Acoustic power emissions6.6 B/A
Video card resolution1280 x 1024 x 16 M colors
Disk subsystem controllerPerformance Models: HP Smart Array P400i/256MB BBWC Controller (RAID 0/1/1+0/5/6) Available upgrades: 512MB memory battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6; Base Models: HP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5) Available upgrades: 512MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6, or battery-backed write cache for RAID 0/1/1+0/5/6; Entry Models: HP Smart Array E200i/64MB Controller (RAID 0/1/1+0) Available upgrades: 128MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5.
Power availabilityRated Steady-State Power: 700W
Memory upgrade32 GB
I/O portsKeyboard: 1; Mouse: 1; Serial: 1; Video: 1; USB 2.0 Ports: 2 rear, 1 front, 1 internal; Network RJ-45: 2; iLO 2 remote management port: 1
Video RAM32 MB video standard
Video modes resolution1280 pixels
Technical featuresMemory: Up to 32 GB of memory, supported by (8) slots of PC2-5300 Fully Buffered DIMMs (DDR2-667); 4:1 interleaving; memory mirroring; and online spare.
Security management descriptionPower-on password; Keyboard password; Diskette drive control; Diskette boot control; QuickLock, Network Server Mode; Removable CD and Diskette Drive Assembly; Serial interface control; Administrator's password; Disk configuration lock; Integrated Lights-Out has 12 customizable user accounts and SSL encryption; Integrated Lights-Out can be disabled via a Global Setting; iLO Advance Pack supports directory services integration and two-factor authentication
Power management700 W, Optional (1+ 1 redundant) power supply
Multi processor capable descriptionUpgradeable to quad or dual processing; Future upgradeable to Xeon Series 5300 Quad-Core, or 5100 Dual-Core processors
Manageability featuresHP Systems Insight Manager; SmartStart, ROM-Based Setup Utility (RBSU); Remote-Flash Redundant ROM; Integrated Management Log (IML); Server Health logging; Automatic Server Recovery-2 (ASR-2); System Insight Display (SID); Dynamic sector repairing and drive parameter tracking (with Smart Array controllers); Hot Spare Boot; Power Down Utility; Pre-Failure Warranty (covers processors, as well as SAS hard drives and memory)
Drive baysUp to 6 SAS/SATA hot plug drive bays
Diskette driveYes
