HPE Networking Comware Switch 24p 10M/100M/1G 8p SFP 1G Combo 6p SFP28 10G/25G 5150HI

HPE Networking Comware Switch 24p 10M/100M/1G 8p SFP 1G Combo 6p SFP28 10G/25G 5150HI

  • Brand: HPE
  • Category:
  • SKU: S5T46A
  • EAN: 0190017788876
Networking Comware Switch 24p 10M/100M/1G 8p SFP 1G Combo 6p SFP28 10G/25G 5150HI

Trade Prices

Distributor Product SKU Stock Updated Price
EET

Networking Comware Switch 24P

 S5T46A Register free see stock

Related Products

Reasons To Buy

Simplified Management and Operations

The HPE Networking Comware Switch Series 5150 HI can be seamlessly managed with IMC to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
It supports SmartMC, an embedded network management tool with a web-based GUI to simplify operations and facilitate centralized management. It offers features such as configuration backup, software version management and seamless switch replacement.
RMON and sFlow™ provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.

Security with Comprehensive Control

HPE Networking Comware Switch Series 5150 HI supports flexible authentication methods including 802.1X, MAC Authentication and Encryption for greater device security and policy-driven app authentication. Per-user Access Control Lists (ACLs) provide identity-driven security and access control.
Dynamic ARP protection with functions such as ARP Detection and ARP packet validation blocks broadcast from unauthorized hosts and prevents eavesdropping or theft of network data.
Supports industry-standard MACsec 256 encryption for end-to-end data link layer security, providing increased MAC port binding and link group capacity.
Centralized security policy management and network protection with Intelligent Management Center (IMC) which leverages End User Admission Domination (EAD) integrated security policies, network access control and access right control policies to provide a comprehensive integrated security system.
Security with encryption of all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3, and other features including DHCP protection, IP source guard, dynamic ARP protection, and RADIUS/HWTACAS.

Performance with Quality of Service (QoS)

The HPE Networking Comware Switch Series 5150 HI is engineered with non-blocking architecture for low-latency switching. It supports advanced classifier-based Quality of Service (QoS) to group traffic, set priority levels, and rate limit selected traffic on a port, VLAN, or entire switch.
Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR), and SP+WRR.
Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.
Energy Efficient Ethernet and energy-saving green design initiatives support your sustainability efforts by automatically reducing power to idle ports and powering down unused ports.

Scalable L3 Access Switches

The HPE Networking Comware Switch Series 5150 HI delivers scalability and enhances reliability of the network with Intelligent Resilient Framework (IRF) technology. IRF stacking enables virtual resilient switching fabrics for simpler, flatter, and more agile networks.
Supports 10 GbE uplinks, static and RIP routing, PoE+, ACLs, and IPv6 for improved and cost‑effective network performance.
DRNI enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also simplifies network topology by virtualizing two physical devices into a logical device.
iNQA helps in measuring network packet loss performance, forward, reverse, and two-way packet loss, including lost number of messages and bytes, message loss, and byte loss rate.
Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network switch, delivering up to 90W of 802.3bt standards compliant power for cameras, phones, and wireless access points.

Description

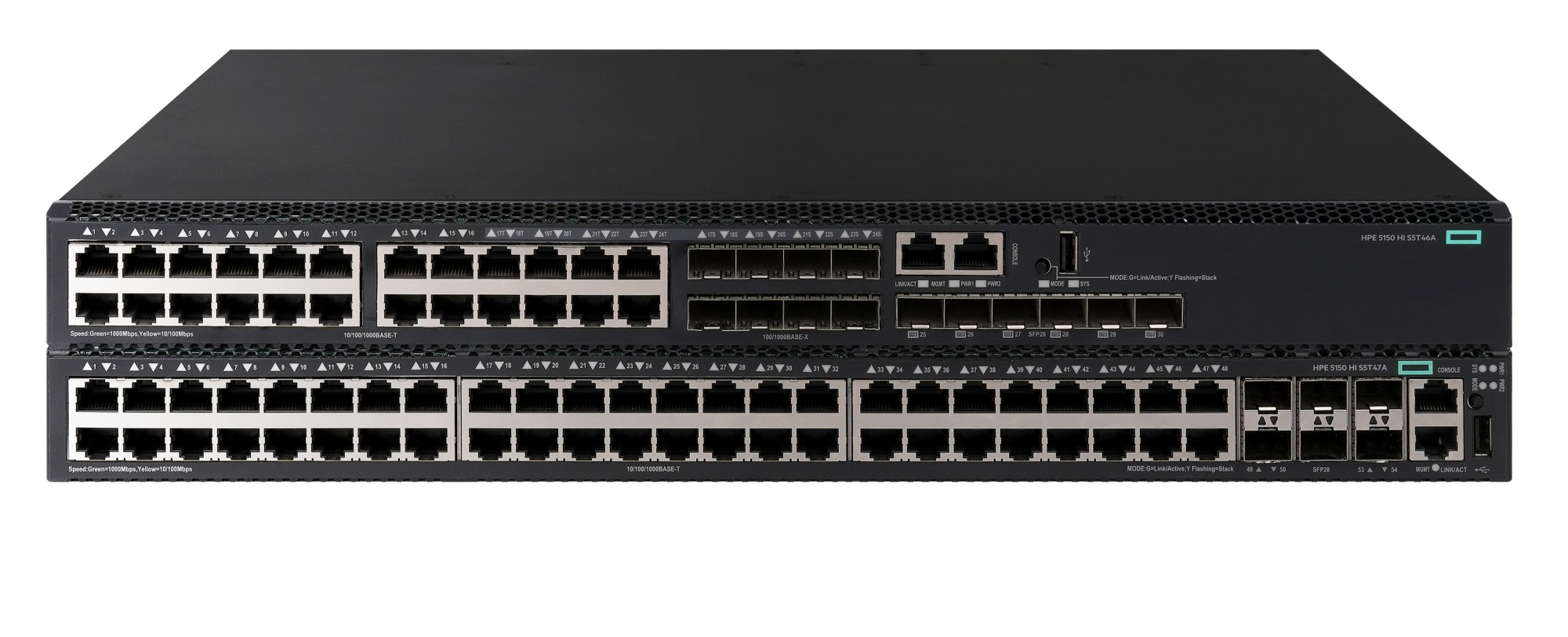

The HPE Networking Comware Switch Series 5150 HI is a family of stackable L3 access switches powered by HPE Comware 9 delivering scalability and resiliency for medium and large enterprise campus networks. With 24 and 48 MACsec-256 enabled 1 GbE downlink ports, 6x10/25 GbE uplinks, hot swappable dual power and fans, and up to 90 watts of 802.3bt PoE per port, this flexible series delivers security and performance for your clients, servers, and IoT devices. Intelligent Resilient Fabric (IRF) stacking up to 9 members adds scale and high availability while Intelligent Network Quality Analyzer (iNQA) supports real-time visibility into network health and performance. Network visibility, management, and operation tools for this series include standard CLI and the Smart Management Center (SmartMC), embedded and ready to use at no additional cost. The series integrates with HPE Aruba Networking IMC, delivering a centralized point of control for your entire network.

What is new supporting point:
Improved performance and scale: supports up to 396 Gpbs bandwidth, 9 member switch stacking, 32K MAC table, improved ARP, ACL, IPv4/v6 unicast and multicast scale.
High availability: Hot swappable dual power supplies and dual fans, mLAG for link level aggregation and redundancy.
6 built-in 10/25 G uplink ports offers competitive platform TCO.
Comprehensive L3 routing and MPLS features, IPv4/v6 support, L3 multicast support.
Enhanced security: Trusted Platform Module (TPM) and secure boot, support industry-standard MACsec 256 encryption for end-to-end data link layer security on all ports.
Standard CLI and Smart Management Center (SmartMC) embedded and ready to use, delivering network visibility, management, and operations at no additional cost.

Specifications

Data transmission
Throughput259 Mpps
Packet buffer memory3 MB
Switching capacity348 Gbit/s
Protocols
Routing protocolsIS-IS, OSPF, RIP, VRRP
Design
StackableYes
Performance
Physical stacking (units)9
Processor frequency1600 MHz
Internal memory4096 MB
Flash memory4000 MB
Built-in processorYes
Packet buffer memory3 MB
StackableYes
Power
AC input voltage90 - 264 V
DC input voltage36 - 72 V
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Technical details
Physical stacking (units)9
StackableYes
Processor frequency1600 MHz
Built-in processorYes
Memory
Packet buffer memory3 MB
Internal memory4096 MB
Flash memory4000 MB
