HPE MSR30-20 DC Router wired router

  • Brand: HPE
  • Category:
  • SKU: JF235A
  • EAN: 8856314171644 0885631417164 40 ...1417164 4058154181508 0885631417225more

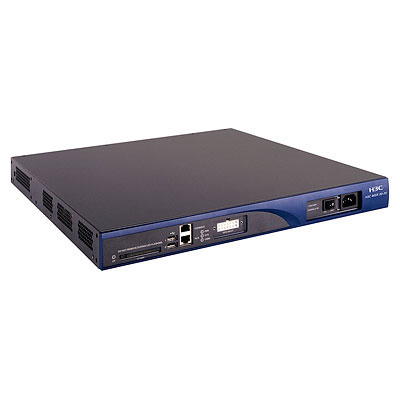

HP MSR30-20 DC Router

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK

JF235A - HP A-MSR30-20 DC Multi-Service Router

View on InTouch open_in_new 		1991612 Register free see stock

Related Products

Description

The HP MSR30 Router Series is a family of high-performance medium-to-large branch routers that deliver integrated routing, switching, security, wireless, and voice in a single box. With its integrated infrastructure and modular design, the MSR30 reduces complexity and simplifies your network while enabling faster time to service and enhanced performance.

The MSR30 increases flexibility and agility by delivering support for a wide range of virtualized applications on the Open Application Platform module. With 4G LTE and UC&C support, it offers dependable branch survivability and resiliency.

Specifications

Ports & interfaces
I/O ports4 SIC slots; 2 MIM slots; 2 RJ-45 autosensing 10/100/1000 WAN ports; Included
Networking
MAC address table30000 entries
Design
Form factorRack (1U)
Performance
Heat dissipation426 BTU/h
Power
Power over Ethernet (PoE) support375 W, maximum, depending on model
Power consumption (typical)125W
Input voltage100 - 240 VAC
Technical details
Form factorRack (1U)
Throughput300 Kpps
Telecom compliance (fax capability)FCC part 68; CS-03
Heat dissipation426 BTU/h
Weight & dimensions
Weight6.9 kg
System requirements
Memory and processorProcessor: RISC @ 533 MHz, 512 MB DDR SDRAM, 256 MB compact flash
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 to 90 %
Storage relative humidity (H-H)5 to 90 %
Certificates
SafetyUL 60950-1; AS/NZS 60950; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1-03; EN 60950-1/A11; FDA 21 CFR Subchapter J
Electromagnetic compatibilityEN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR 22 Class A; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-11:2004; EN 61000-4-8:2001
Other features
Throughput300 Kpps
MountingMounts in an EIA-standard 19 in. telco rack
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Input voltage100 - 240 VAC
Input frequency50 - 60 Hz
Dimensions (WxDxH)442 x 441.8 x 44.2 mm
Telecom compliance (fax capability)FCC part 68; CS-03
