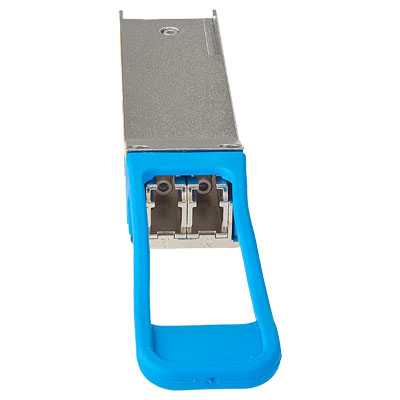

HPE BladeSystem c-Class network transceiver module 40000 Mbit/s QSFP+ 1310 nm
- Brand: HPE
- Category:
- SKU: 720190-B21
- EAN: 8877581615792 0887758161579
40GB, QSFP+, LC, LR4, 1310nm
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
BLADESYSTEM C-CLASS 40GB QSFP+ LC LR4 |
720190-B21 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £9,234.00 |
Description
Do you need high-performance QSFP+ transceivers for your BladeSystem? The HP BladeSystem c-Class QSFP+ Transceivers deliver a full-duplex optical module with four independent transmit and receive channels supporting data rates up to 4x10 Gb/s for high-density applications and improving performance.
Supports 4 lanes x 10.3 Gb/s.
Supports link distances up to 100m on OM3 MMF and 150m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
Can be used either for 40GbE or for aggregating 4x 10GbE links.
MPO connector (SR4) or LC connector (LR4).
Supports 4 lanes x 10.3 Gb/s.
Supports link distances up to 100m on OM3 MMF and 150m on OM4 MMF for SR4 and up to 10 km on SMF for LR4.
Less than 1.5 W maximum power dissipation for SR4/CSR4 and less than 3.5 W for LR4.
Can be used either for 40GbE or for aggregating 4x 10GbE links.
MPO connector (SR4) or LC connector (LR4).
Specifications
| Performance | |
|---|---|
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| SFP transceiver standard | LR4 |
| Compatible products | BladeSystem c-Class |
| Features | |
| Compatible products | BladeSystem c-Class |
| Network | |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ba |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Weight & dimensions | |
| Width | 131.8 mm |
| Depth | 18.4 mm |
| Height | 13.7 mm |
| Weight | 35 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Compatible products | BladeSystem c-Class |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
