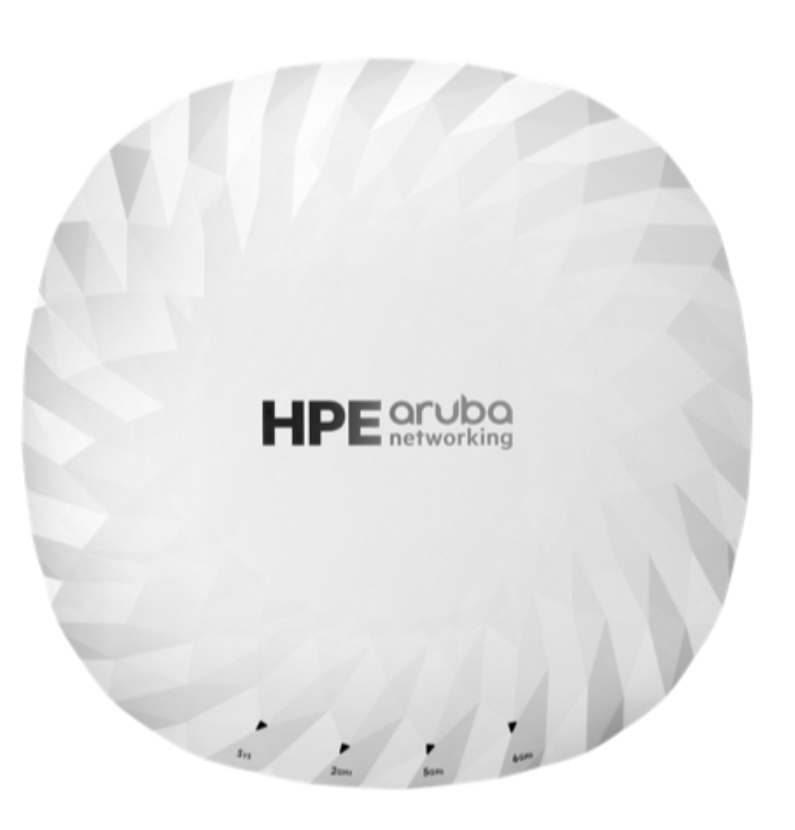

HPE Aruba Networking AP-745 (US) Tri Radio 4x4/2x2 Wi-Fi 7 Internal Antennas Campus Access Point
- Brand: HPE
- Category:
- SKU: S5R01A
- EAN: 0190017782775
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
ru Neworking p-745 (Us) |
S5R01A |
Related Products
-
Category: Networking Cables -
Category: Networking Cables -
Category: Networking Cables
-
Category: PoE Adapters
-
Category: PoE Adapters
-
Category: Network Antennas -
Category: Network Antennas
-
Category: Warranty & Support Extensions -
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
Reasons To Buy
Rightsized Wi-Fi 7 with AI-driven Management
The HPE Aruba Networking 740 Series Campus Access Points, part of the low power indoor (LPI) device class, take advantage of the increased capacity of the 6 GHz band using three dedicated radios, which translates into high speeds, wider channels for multi-gigabit traffic, and less interference.
Intelligent automation, AI insights, and unified infrastructure management, provided by HPE Aruba Networking Central, enhance wireless performance and help drive more efficient IT operations.
Supporting up to 160 MHz wide channels, the 740 series delivers up to 9 Gbps maximum tri-band aggregate data rate, using up to 4x4 MIMO radios (2x2: 2.4 GHz, 4x4: 5 GHz, and 4x4: 6 GHz).
Using powerful 4x4 MIMO radios, the 740 series can sustain 3- and 4-spatial stream data rates with supported clients.
Dynamic bandwidth adjustments support changing device density, enhanced roaming, and real-time channel assignments to mitigate co-channel interference and built-in filtering automatically reduces the impact of interference for better Wi-Fi experiences.
Simple and Flexible IoT Platform
The HPE Aruba Networking 740 Series Campus Access Points can serve as flexible IoT platforms that bolster network security and provide coverage for broad range of IoT devices without the need for network overlays for IoT devices.
HPE Aruba Networking Central IoT operations unifies visibility of IT and OT infrastructure within the network health dashboard by extending network monitoring, visibility, and insights to BLE, Zigbee, and other non-IP IoT devices.
A single, flexible, integrated IoT radio supports either BLE or 802.15.4/Zigbee operation to simplify deploying and managing IoT devices.
A USB port supports additional connectivity to a wider range of IoT devices.
A broad ecosystem of technology partners and certified solutions helps extend IoT capabilities and provide interoperability for easier installations and operations.
Location Services and Energy Saving
The HPE Aruba Networking 740 Series Campus Access Points help organizations deliver precision indoor location services by supporting FTM 802.11az for sub-1 meter accuracy.
Reduce energy use with the dynamic power save mode that enables the 740 series to sleep and then automatically wake up when connectivity demand arises, reducing power demands and lowering the energy footprint.
Intelligent power monitoring provides energy consumption insights as the access points continuously monitor and report hardware energy usage.
HPE Aruba Networking access points can also be configured to enable or disable capabilities based on available PoE power—ideal when wired switches have exhausted their PoE power budget.
Target wake time (TWT) establishes a schedule for when IoT clients need to communicate with an access point to help improve client power savings and reduce airtime contention.
Comprehensive Security Built-in
The HPE Aruba Networking 740 Series Campus Access Points offer enhanced security with dynamic segmentation to eliminate the time consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
Network protection with stronger encryption and authentication with WPA3, secure credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.
AI-powered classification of all Wi-Fi clients and IoT devices through HPE Aruba Networking Central uses deep packet inspection to provide behavioral context that help ensure devices are receiving proper policy enforcement and continuous monitoring.
To simplify policy enforcement, the 740 series uses the policy enforcement firewall (PEF) to encapsulate all traffic from the access point to the gateway (or mobility controller) for end-to-end encryption and inspection.
For enhanced device assurance, these APs include a built-in TPM for secure storage of credentials and keys, and boot code.
Description
What is new supporting point:
High performance compact Wi-Fi 7 access points with right-sized features ideal for high-density indoor deployments
AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences
Comprehensive triband coverage across 2.4 GHz, 5 GHz, and 6 GHz and delivers up to 9 Gbps maximum tri-band aggregate data rate
Seamlessly onboard IoT devices with flexible integrated IoT radio that can be configured for Bluetooth or 802.15.4/Zigbee operation
Fast 5 Gbps Ethernet wired connectivity and conveniently powered by PoE
Dynamic power save mode helps reduce energy consumption
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 5000 Mbit/s |
| Maximum data transfer rate | 9000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth | 0.08 GHz |
| Spread spectrum method | OFDM |
| Frequency band | 2.4/5/6 GHz |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Certification | UL2043 plenum rating; Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7; WPA2 and WPA3; WMM; Bluetooth SIG; Ethernet Alliance; FCC/ISED; CE marked; Low voltage directive 2014/35/EU; UL/IEC/EN 62368-1; EN60601-1-2 |
| Maximum data transfer rate | 9000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 |
| Wireless LAN features | |
| Frequency band | 2.4/5/6 GHz |
| Network | |
| Spread spectrum method | OFDM |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Bandwidth | |
| Bandwidth | 0.08 GHz |
| Channel bandwidth | 160 MHz |
| Ports & interfaces | |
| I/O ports | E0: One Ethernet wired network port (RJ‑45) U0: One USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro‑B USB physical jack) Kensington security slot |
| Internal RJ-45 ports quantity | 1 |
| WAN connection | Ethernet (RJ-45) |
| USB connector type | Micro-USB B |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000/2500Base-T |
| Security | |
| Cable lock slot | Yes |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth | 0.08 GHz |
| Spread spectrum method | OFDM |
| Frequency band | 2.4/5/6 GHz |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Ethernet LAN data rates | 5000 Mbit/s |
| Channel bandwidth | 160 MHz |
| Cabling technology | 10/100/1000/2500Base-T |
| Maximum data transfer rate | 9000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (6 GHz) | 2400 Mbit/s |
| BeamForming | Yes |
| Spatial streams | 4x4: 5 GHz and 6 GHz; 2x2: 2.4 GHz |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 |
| Protocols | |
| Supported network protocols | WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE), WMM, W-Fi agile multiband |
| Supported protocols | IEEE 802.15.4/Zigbee; WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE); WMM; W-Fi agile multiband; Bluetooth 5.4; 802.11 FTM support |
| Management features | |
| Access point management | On-premises; Public Cloud; as a Service; Virtual Private Cloud (VPC) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Certification | UL2043 plenum rating; Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7; WPA2 and WPA3; WMM; Bluetooth SIG; Ethernet Alliance; FCC/ISED; CE marked; Low voltage directive 2014/35/EU; UL/IEC/EN 62368-1; EN60601-1-2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Antenna | |
| Number of connectors | 2 |
| Antenna type | Internal |
| Polarization | Dual polarization |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Polarization | Dual polarization |
| Compliance certificates | Federal Communications Commission (FCC), ISED |
| Certificates | |
| Certification | UL2043 plenum rating; Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7; WPA2 and WPA3; WMM; Bluetooth SIG; Ethernet Alliance; FCC/ISED; CE marked; Low voltage directive 2014/35/EU; UL/IEC/EN 62368-1; EN60601-1-2 |
| Compliance certificates | Federal Communications Commission (FCC), ISED |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 252 mm |
| Weight | 1.7 kg |
| Height | 86.9 mm |
| Package width | 252 mm |
| Package depth | 267 mm |
| Packaging data | |
| Package type | Box |
| Package width | 252 mm |
| Package depth | 267 mm |
| Other features | |
| I/O ports | E0: One Ethernet wired network port (RJ‑45) U0: One USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro‑B USB physical jack) Kensington security slot |
| Polarization | Dual polarization |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 |
| Packaging content | |
| Package type | Box |
