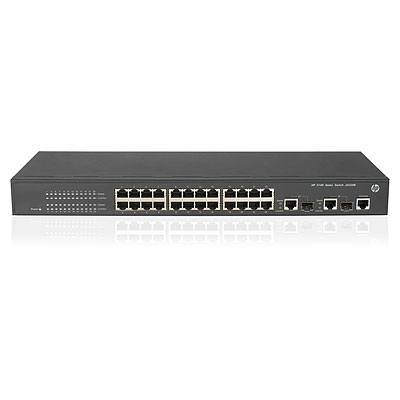

HPE A 3100-24 v2 EI Grey

  • Brand: HPE
  • Category:
  • SKU: JD320B
  • EAN: 0886112782498 0886112782504 40 ...2782504 4053162063150 0886111500925 0886112782443 3540260103952 8861115009256 0886112782450 5711045567704more
24 - Rj-45 10/100 ports, 8.8 Gbps, 6.5 million pps, 13 W, 3.5 kg

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK

HP 3100-24 v2 EI Switch

View on InTouch open_in_new 		2390299 Register free see stock
Alternative Suppliers
Memory Bank

3100-24 v2 EI Switch

 JD320B90076043 Register free see stock

Related Products

Description

HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mpbs-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping.

Specifications

Management features
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Combo SFP ports quantity2
SFP/SFP+ slots quantity2
Console portRS-232
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
Spanning tree protocolYes
Routing entries16
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
10G supportNo
Data transmission
Throughput6.5 Mpps
Packet buffer memory0.384 MB
Supported data transfer rates10/100 Mbps
Switching capacity8.8 Gbit/s
Maximum data transfer rate1 Gbit/s
Design
SafetyUL 60950; NOM-019-SCFI; EN 60950: 2000, ZB and ZC; IEC 60950: 1999, 2000, all; AS/NZS 60950: 2000
Product colourGrey
Rack mountingYes
CertificationFCC part 15; VCCI; EN 55022; CISPR 22; ICES-003; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; 2004/108/EC; FCC (CFR 47, Part 15)
Performance
Memory typeSDRAM
Internal memory128 MB
Flash memory16 MB
Packet buffer memory0.384 MB
Power
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)13 W
Power connectorDC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Other features
Latency6 µs
Connectivity technologyWired
Wi-FiNo
Power LEDYes
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation44 BTU/h
Weight & dimensions
Width160 mm
Depth440 mm
Height43.6 mm
Weight3.5 kg
Packaging content
User guideYes
Technical details
Product colourGrey
Rack mountingYes
Certificates
SafetyUL 60950; NOM-019-SCFI; EN 60950: 2000, ZB and ZC; IEC 60950: 1999, 2000, all; AS/NZS 60950: 2000
CertificationFCC part 15; VCCI; EN 55022; CISPR 22; ICES-003; ANSI C63.4 2003; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-11; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; 2004/108/EC; FCC (CFR 47, Part 15)
Memory
Packet buffer memory0.384 MB
Memory typeSDRAM
Internal memory128 MB
Flash memory16 MB
Indication
Power LEDYes
Packaging data
User guideYes
