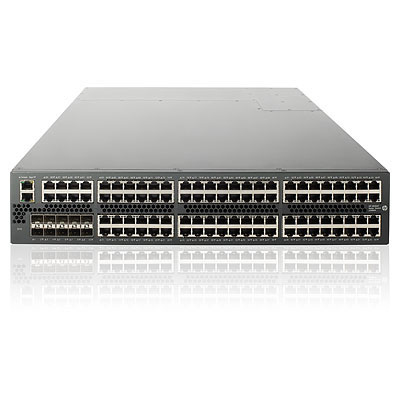

HPE 5830 CTO Built Switch

  • Brand: HPE
  • Category:
  • SKU: JG478A
  • EAN: 0887111004208
HP 5830 CTO Built Switch

Trade Prices

Distributor Product SKU Stock Updated Price
TD Synnex UK

HP 5830 CTO Built Switch

View on InTouch open_in_new 		2768252 Register free see stock

Related Products

Description

The HP 5830AF Switch Series is a family of high-density 1 GbE top-of-rack data center and campus switches that are a part of the HP FlexFabric solution module of the HP FlexNetwork architecture. The two models, the 5830AF-48G and 5830AF-96G switches, are ideally suited for deployments at the server access layer in medium-sized and large enterprise data centers and campus networks. The HP 5830AF-48G Switch delivers 48 1-GbE ports and up to four 10-GbE ports in a space-saving 1RU package, while the HP 5830AF-96G Switch provides an industry-leading 96 1-GbE ports and up to 10 10-GbE uplink ports in a 2RU form factor.

Specifications

Data transmission
MAC address table32000 entries
Sound emission
Acoustic pressure emissions58 dB
Design
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Form factorRack (1U)
Electromagnetic compatibilityVCCI Class A; EN 55022 Class A; ICES-003 Class A; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; FCC (CFR 47, Part 15) Subpart B Class A
Power
Input voltage100-240 VAC; -40 to -60 VDC (depending on power supply chosen)
Power supply slots open2
Technical details
Form factorRack (1U)
Fan tray slots1
Electromagnetic immunityETSI EN 300 386 V1.3.3; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-2; IEC 61000-4-2; EN 61000-4-3; IEC 61000-4-3; EN 61000-4-4; IEC 61000-4-4; EN 61000-4-5; IEC 61000-4-5; EN 61000-4-6; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-8; EN 61000-4-11; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Certificates
SafetyUL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Electromagnetic compatibilityVCCI Class A; EN 55022 Class A; ICES-003 Class A; ETSI EN 300 386 V1.3.3; AS/NZS CISPR22 Class A; EMC Directive 2004/108/EC; EN 55024:1998+ A1:2001 + A2:2003; FCC (CFR 47, Part 15) Subpart B Class A
Operational conditions
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)5 - 95%
Other features
Management platformIMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management; SNMP Manager; Telnet; RMON1; FTP; IEEE 802.3 Ethernet MIB
Input voltage100-240 VAC; -40 to -60 VDC (depending on power supply chosen)
Input frequency50 - 60 Hz
Power supply slots open2
Fan tray slots1
Electromagnetic immunityETSI EN 300 386 V1.3.3; EN 55024:1998+ A1:2001 + A2:2003; EN 61000-4-2; IEC 61000-4-2; EN 61000-4-3; IEC 61000-4-3; EN 61000-4-4; IEC 61000-4-4; EN 61000-4-5; IEC 61000-4-5; EN 61000-4-6; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-8; EN 61000-4-11; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Acoustic pressure emissions58 dB
