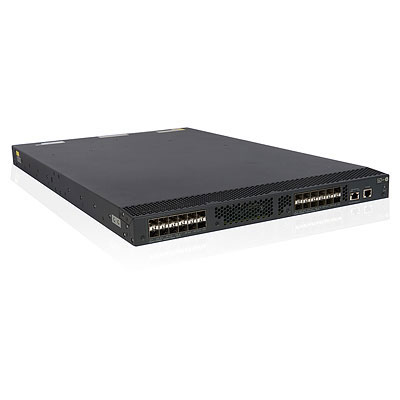

HP 5920AF-24XG Switch

  • Brand: HP
  • Category:
  • SKU: JG296A#0D1
  • EAN: 0886112827045
HP 5920AF-24XG Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast

HP 5920AF-24XG SWITCH FACTORY INTEGR

View on Webshop open_in_new 		JG296A#0D1 Register free see stock
Alternative Suppliers
Memory Bank

HP 5920AF-24XG SWITCH FACTORY INTEGR

 CLJG296A#0D1 Register free see stock

Related Products

Description

The HP 5920 Switch Series is made up of high-density 10GbE, ultra-deep packet buffering, top-of-rack (ToR) switches. These switches are part of the HP FlexNetwork architecture's HP FlexFabric solution module and are ideally suited for deployments at the server access layer of large enterprise data centers. The HP 5920 Switch Series is also designed for content delivery networks, especially when used to reduce network congestion at the I/O that is associated with the heavy use of server virtualization, as well as bursty multimedia, storage applications, and other critical services. With the increase in virtualized applications and server-to-server traffic, customers now require ToR switch innovations that will meet their needs for higher-performance server connectivity, convergence of Ethernet and storage traffic, the capability to handle virtual environments, and ultra-deep packet buffering all in a single device.

Specifications

Ports & interfaces
I/O ports24 fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port; 1 RJ-45 out-of-band management port
Data transmission
Switching capacity480 Gbps
Power
Power consumption (typical)366W
Input voltage100-240 VAC; -36 to -72 VDC (depending on power supply chosen)
Other features
Input voltage100-240 VAC; -36 to -72 VDC (depending on power supply chosen)
Management platformIMC - Intelligent Management Center; command-line interface; out-of-band management; SNMP Manager; Telnet; FTP
Latency10 Gbps Latency: < 1.7 µs (64-byte packets)
Dimensions (WxDxH)439.9 x 659.9 x 43.7 mm
Memory and processor256 MB flash, packet buffer size: 3.6 GB, 2 GB SDRAM
I/O ports24 fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port; 1 RJ-45 out-of-band management port
Operational conditions
Storage relative humidity (H-H)5 to 95 %
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 to 90 %
Heat dissipation1249 BTU/h
Weight & dimensions
Weight13 kg
