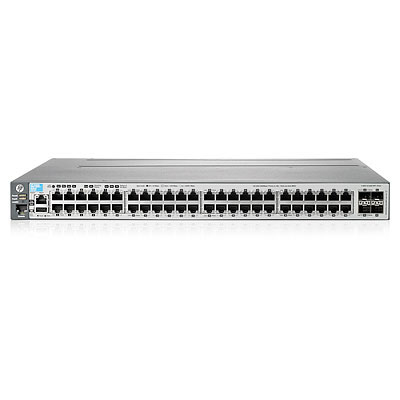

HP 3800-48G-4SFP+ Switch

  • Brand: HP
  • Category:
  • SKU: J9576A#B2C
  • EAN:
HP 3800-48G-4SFP+ Switch

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast

HP 3800-48G-4SFP+ SWITCH JMPCBL-ROW

View on Webshop open_in_new 		J9576A#B2C Register free see stock

Related Products

Description

The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry. Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.

Specifications

Ports & interfaces
I/O ports48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port; 1 RJ-45 out-of-band management port; 1 stacking module slot; Included
Data transmission
MAC address table65500 entries
Switching capacity176 Gb/s
Sound emission
Acoustic pressure emissionsPower: 36, Pressure: 25.4 dB
Design
SafetyEN 60950/IEC 60950; UL 60950; CAN/CSA 22.2 No. 60950; EN 60825
Form factorRack (1U)
Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Power
Power consumption (typical)186W
Input voltage100 - 127 / 200 - 240 VAC
Input current6/3 A
Power supply slots open2
Technical details
Form factorRack (1U)
Fan trays1 x J9582A
Fan tray slots1
Electromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Certificates
SafetyEN 60950/IEC 60950; UL 60950; CAN/CSA 22.2 No. 60950; EN 60825
Electromagnetic compatibilityFCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Other features
Input voltage100 - 127 / 200 - 240 VAC
Management platformHP PCM+; HP PCM; command-line interface; Web browser; configuration menu
Latency1000 Mb Latency: < 2.8 µs; 10 Gb/s Latency: < 1.9 µs
Dimensions (WxDxH)442.7 x 467.4 x 43.2 mm
Power supply type1 x J9581A
MountingMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Memory and processorHP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz; 4 GB flash; packet buffer size: 36 MB dynamic; 2 GB SDRAM
Input frequency50 - 60 Hz
Power supply slots open2
I/O ports48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 fixed 1000/10000 SFP+ ports; 1 RJ-45 serial console port; 1 RJ-45 out-of-band management port; 1 stacking module slot; Included
Fan trays1 x J9582A
Fan tray slots1
Electromagnetic immunityEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; 3 V/m; IEC 61000-4-4; 1.0 kV (power line), 0.5 kV (signal line); IEC 61000-4-5; 1 kV/2 kV AC; IEC 61000-4-6; 3 V; IEC 61000-4-8; 1 A/m, 50 or 60 Hz; IEC 61000-4-11; >95% reductions, 0.5 period; 30% reduction, 25 periods; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Acoustic pressure emissionsPower: 36, Pressure: 25.4 dB
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)15 to 90 @ 149°F
Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)15 to 95 @ 104°F
Operating altitude3 km
Heat dissipation635 BTU/h
Weight & dimensions
Weight7.26 kg
