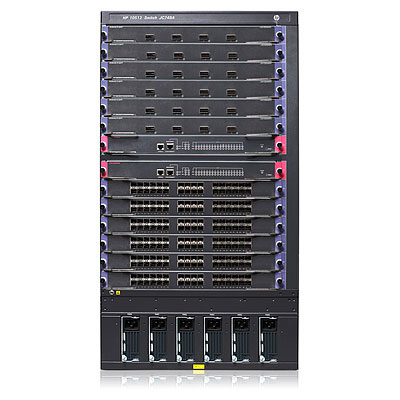

HP 10512 Switch Chassis

  • Brand: HP
  • Category:
  • SKU: JC748A#0D1
  • EAN: 0886112935986
HP 10512 Switch Chassis

Trade Prices

Distributor Product SKU Stock Updated Price
Westcoast

HP 10512 SWITCH CHASSIS FACTORY INTE

View on Webshop open_in_new 		JC748A#0D1 Register free see stock
Alternative Suppliers
Memory Bank

HP 10512 SWITCH CHASSIS FACTORY INTE

 CLJC748A#0D1 Register free see stock

Related Products

Description

The HP 10500 Switch Series is a next-generation modular enterprise campus core switch designed to enable the evolving needs of a cloud-connected and rich-media-capable infrastructure. It sets a benchmark for performance, reliability, and scalability with next-generation Clos architecture with 3-microsecond latency, and delivering ultra-high 1/10/40/100GbE port density. With HP Intelligent Resilient Fabric (IRF) technology, the HP 10500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.

Specifications

Ports & interfaces
I/O ports12 I/O module slots; Supports a maximum of 576 10GbE ports or 288 1/10GBASE-T ports or 576 Gigabit Ethernet ports or 96 40GbE ports, or a combination; Included
Data transmission
MAC address table512000 entries
Switching capacity11.5 Tb/s
Sound emission
Acoustic pressure emissions66 dB
Design
SafetyCAN/CSA 22.2 No. 60950-1; FCC Part 15, Subpart B; FDA 21 CFR Subchapter J; ROHS Compliance; IEC 60950-1:Second Edition; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1, 2nd Edition; EN60825-2:2004+A1:2007
Form factor18U height
Electromagnetic compatibilityVCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254
Power
Output power2500W
Input voltage100 - 120 / 200 - 240 VAC
Input current16/60 A
Power supply slots open6
Technical details
Form factor18U height
Fan trays1 x JC758A, JC773A
Fan tray slots2
Certificates
SafetyCAN/CSA 22.2 No. 60950-1; FCC Part 15, Subpart B; FDA 21 CFR Subchapter J; ROHS Compliance; IEC 60950-1:Second Edition; EN 60950-1:2006 + A11:2009; AS/NZS 60950-1; IEC 60825-1; UL 60950-1, 2nd Edition; EN60825-2:2004+A1:2007
Electromagnetic compatibilityVCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254
Other features
Input voltage100 - 120 / 200 - 240 VAC
Management platformIMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; terminal interface (serial RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB
Dimensions (WxDxH)440 x 660 x 797 mm
Power requirementsBased on common power supply 2,500 W (AC)
MountingMounts in an EIA-standard 19-inch rack or other equipment cabinet (hardware included); horizontal surface mounting only
Memory and processorDual Core MIPS @ 1.2 GHz; 512 MB flash; 8 GB DDR2 SDRAM
Input frequency50 - 60 Hz
Power supply slots open6
I/O ports12 I/O module slots; Supports a maximum of 576 10GbE ports or 288 1/10GBASE-T ports or 576 Gigabit Ethernet ports or 96 40GbE ports, or a combination; Included
Fan trays1 x JC758A, JC773A
Fan tray slots2
Acoustic pressure emissions66 dB
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 to 95 %
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 to 95 %
Operating altitude4 km
Weight & dimensions
Weight75.4 kg
