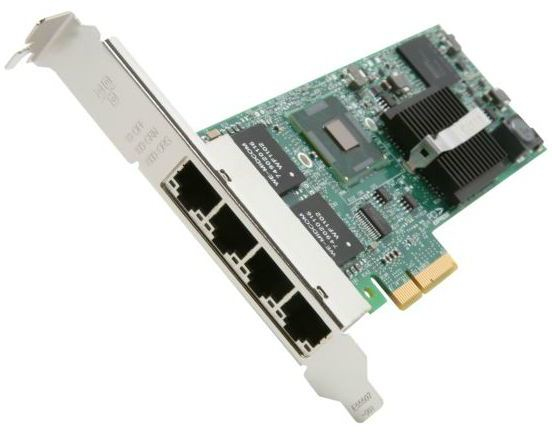

Fujitsu S26361-F4610-L504 network card Internal Ethernet 1000 Mbit/s
- Brand: Fujitsu
- Category:
- SKU: S26361-F4610-L504
- EAN: 4053162444133 4053026551755
4x1Gbit Cu Intel I350-T4 PCIe x4 card
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
PLN CP 4X1GI CU INEL |
S26361-F4610-L504 | |||
|
S26361-F4610-L504 |
FUJ-S26361-F4610-L504 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £192.31 |
Related Products
-
Category: Servers -
Category: Servers -
Category: Servers
-
Category: Servers
-
Category: Servers -
Category: Servers -
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers -
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers -
Category: Servers
-
Category: Servers -
Category: Servers
-
Category: Servers -
Category: Servers -
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
-
Category: Servers
Description
Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet
ports for 10/100/1000BaseT.
Virtualization support and Wake-on-LAN with selectable port are just some of the features from
which you will benefit. Optimal support for your virtualization is provided by the support for Virtual
Machine Device Queues (VMDq), Single Root I/O virtualization and sharing specification (SR-IOV).
SR-IOV requires corresponding support in the system BIOS and in the operating system. PCI-SIG
SR-IOV defines extensions of the PCI Express (PCIe) specification and enables PCI hardware resources
to be shared with several system images or Virtual Machines.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Intel® I350-AM4 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1as, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Wake-on-LAN ready | Yes |
| Supported network protocols | iSCSI |
| LAN controller | Intel® I350 |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Flow control support | Yes |
| Technical details | |
| Wake-on-LAN ready | Yes |
| Harmonized System (HS) code | 85176990 |
| Design | |
| Chipset | Intel® I350-AM4 |
| Internal | Yes |
| LED indicators | Yes |
| Component for | Server |
| Power | |
| Power consumption (typical) | 5 W |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Protocols | |
| Supported network protocols | iSCSI |
| Performance | |
| Wake-on-LAN ready | Yes |
| Other features | |
| Chipset | Intel® I350-AM4 |
| Flow control support | Yes |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
