Fujitsu ESPRIMO D738/E94+ Intel® Core™ i5 i5-9400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black

Fujitsu ESPRIMO D738/E94+ Intel® Core™ i5 i5-9400 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro SFF PC Black

  • Brand: Fujitsu
  • Category:
  • SKU: VFY:D0738P15AMGB
  • EAN: 4065221301660
Intel Core i5-9400 (9MB Cache, 2.9GHz), 8GB DDR4-SDRAM, 256GB SSD, Intel UHD Graphics 630, LAN, Windows 10 Pro 64-bit

Trade Prices

Alternative Suppliers
Memory Bank

FUJITSU D738 E94 CI5 9400 8GB 256GB NVMe K/B MOUSE W10P

VFY:D0738P15AMGB Register free see stock

Retail Prices

Merchant Product Condition Updated Price
Amazon New £600.93

Description

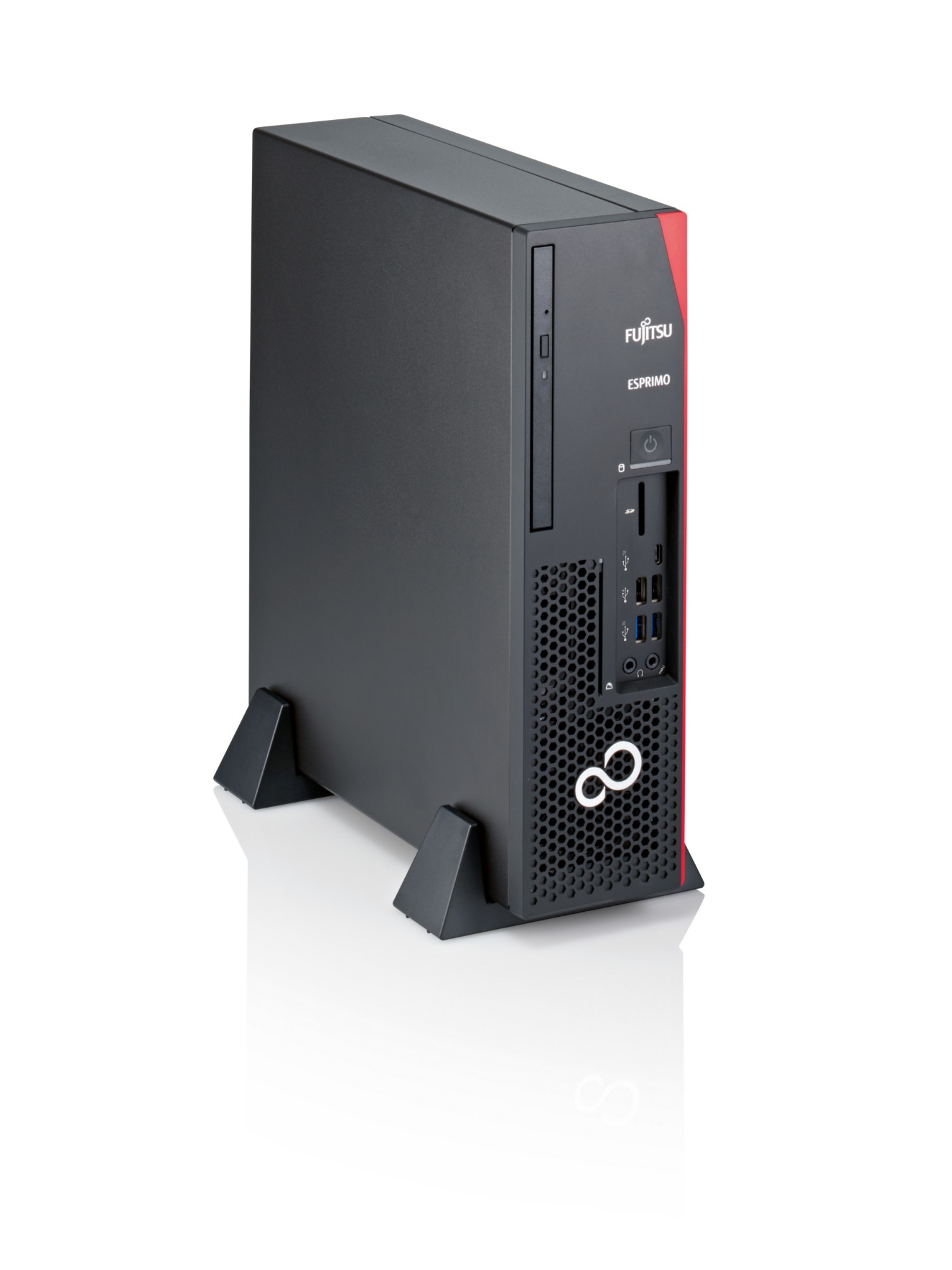

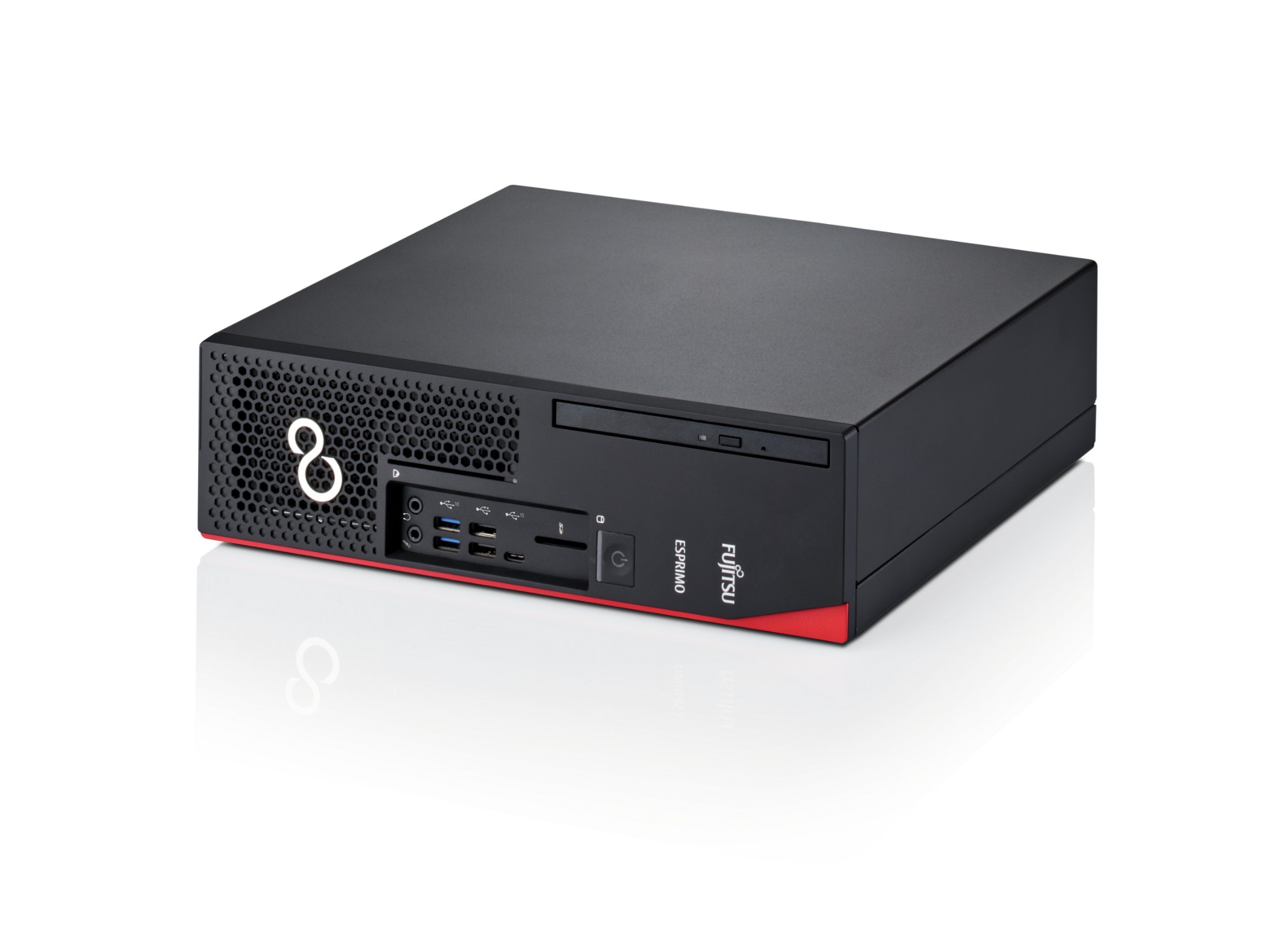

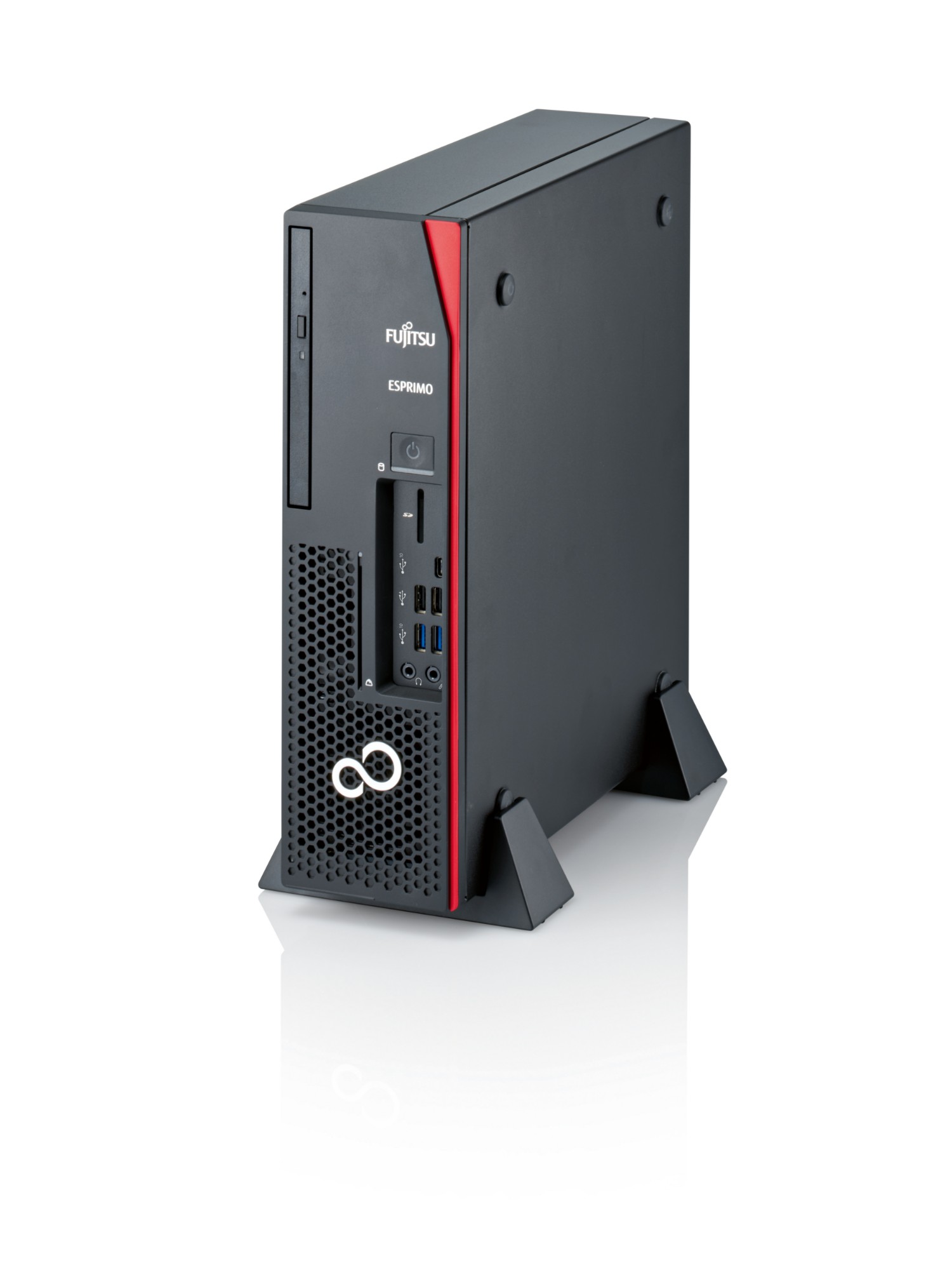

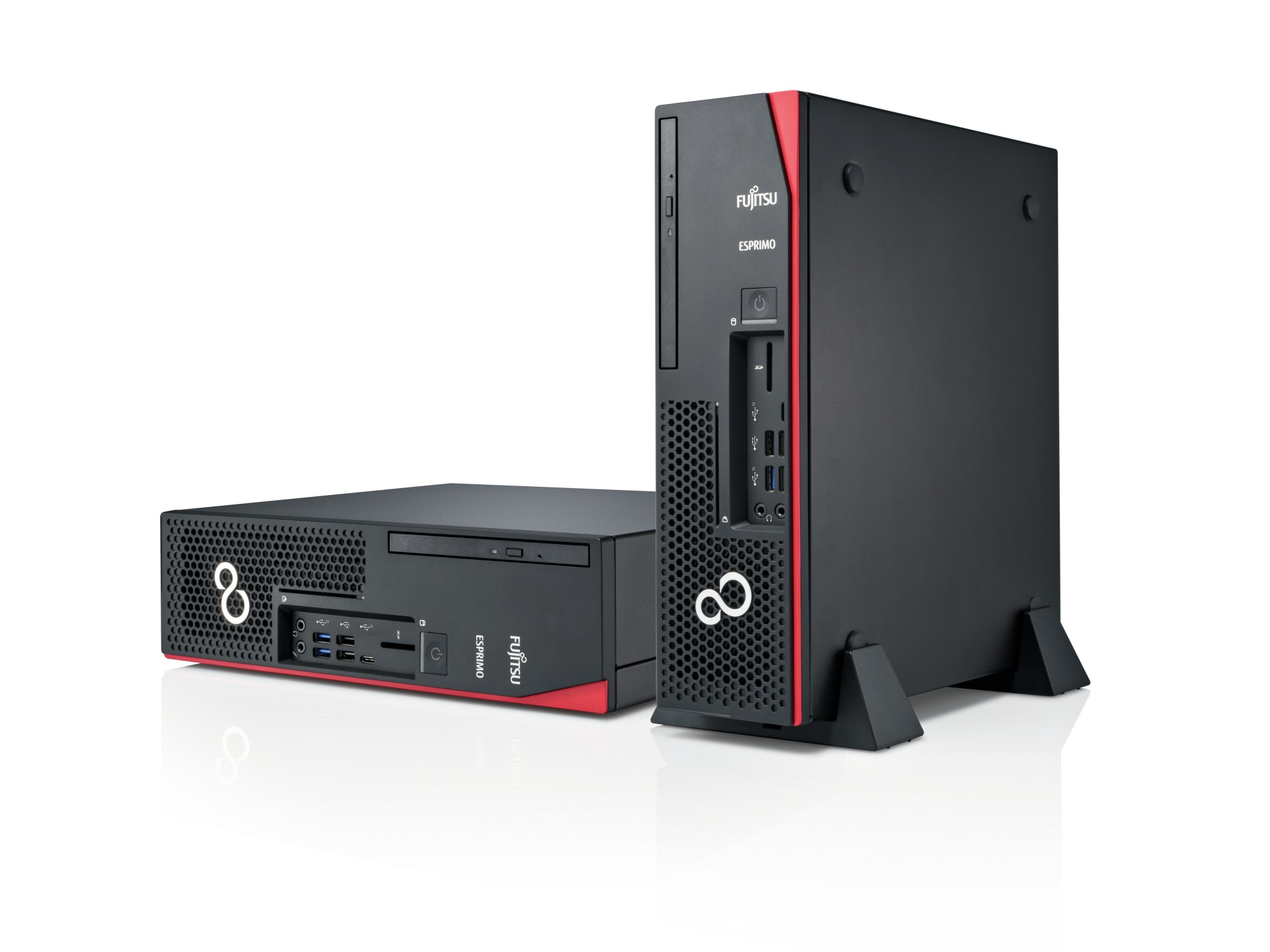

Small form factor PC in a more compact and space-saving design
The new FUJITSU ESPRIMO D738 Desktop PC provides advanced expandability features in a smaller housing. With up to 9th Gen Intel® Core™ processors, a switched monitor outlet and a power supply with 94% efficiency ensure best energy efficiency coupled with high performance. To meet the system upgrade requirements, it offers high flexibility with space for up to three mass storage drives. Optional Intel® Standard Manageability helps keep administration and rollout costs low. Optional security functions, such as the integrated cabinet lock, EraseDisk and SmartCard reader help secure your valuable business data and hardware components.

Ultimate usability
Benefit from a wide range of features which ease your workaday life
ON/OFF switch, I/Os in front for easy access control and use of the system (audio, USB Type C, optional SD card reader, SmartCard reader and ODD)

Quiet system
Pleasant working environment due to an extremely quiet system
Innovative hardware design with optimized cooling concept ensures silent operations

Always Available Office PC - stay connected and save power
Be ready for instant communication and a significantly reduced energy bill
Innovative Low Power Active Mode and energy-efficient integrated power supply

Advanced system management
Simple system administration for complex IT infrastructures
Intel® Standard manageability technology (ISM) optional and DeskView manageability suite

Low carbon footprint
Another example of Fujitsu’s commitment to environmental protection and sustainability
Low power active function and energy-efficient power supply; less cables due to onboard LED/on/off switch, USB and audio connectors; less raw material used in printed circuit board (PCB) -reduction of up to 20% in PCB when compared to a 10 liter system

Specifications

Processor
Processor generation9th gen Intel® Core™ i5
Processor operating modes64-bit
Processor lithography14 nm
Processor codenameCoffee Lake
Bus typeDMI3
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Tjunction100 °C
Thermal Design Power (TDP)65 W
PCI Express configurations1x8+2x4, 1x16, 2x8
Maximum number of PCI Express lanes16
Memory bandwidth supported by processor (max)41.6 GB/s
Processor cache typeSmart Cache
Processor cache9 MB
Processor frequency2.9 GHz
Processor modeli5-9400
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency4.1 GHz
System bus rate8 GT/s
Processor socketLGA 1151 (Socket H4)
Processor threads6
Processor cores6
PCI Express slots version3.0
Processor familyIntel® Core™ i5
Memory
Internal memory8 GB
Maximum internal memory64 GB
Memory slots4x DIMM
Internal memory typeDDR4-SDRAM
Memory clock speed2666 MHz
Storage
Storage mediaSSD
Optical drive typeDVD Super Multi
SSD capacity256 GB
Number of SSDs installed1
Card reader integratedYes
Total storage capacity256 GB
SSD form factorM.2
Graphics
Discrete graphics cardNo
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card base frequency350 MHz
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card OpenGL version4.5
On-board graphics card DirectX version12.0
On-board graphics card ID0X3E98/x92
On-board graphics card familyIntel® UHD Graphics
On-board graphics cardYes
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics 630
On-board GPU manufacturerIntel
Optical drive
Optical drive typeDVD Super Multi
Network
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB 2.0 ports quantity4
PS/2 ports quantity2
Microphone inYes
Line-outYes
Line-inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DVI portYes
DisplayPorts quantity2
DC-in jackYes
Expansion slots
PCI Express slots version3.0
Technical details
Intel 64Yes
Cable lock slot typeKensington
Product typePC
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Product colourBlack
Chassis typeSFF
Audio systemHigh Definition Audio
Placement supportedHorizontal/Vertical
Cable lock slotYes
Audio output channels5.1 channels
Motherboard chipsetIntel Q370
Compliance certificatesRoHS
Design
Volume8 L
Cable lock slot typeKensington
Product colourBlack
Chassis typeSFF
Placement supportedHorizontal/Vertical
Cable lock slotYes
Intel® vPro™ Platform EligibilityNo
Performance
Embedded options availableNo
Audio chipRealtek ALC671
Password protectionYes
Password protection typeBIOS, Supervisor, User
Product typePC
Audio systemHigh Definition Audio
Audio output channels5.1 channels
Motherboard chipsetIntel Q370
Harmonized System (HS) code84715000
Software
Operating system architecture64-bit
Operating system installedWindows 10 Pro
Processor special features
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® OS GuardYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel Stable Image Platform Program (SIPP)No
Intel® Secure KeyYes
Intel® InTru™ 3D TechnologyYes
Intel Clear Video TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Idle StatesYes
Execute Disable BitYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Enhanced Halt StateYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Thermal solution specificationPCG 2015C
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Scalability1S
Processor package size37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)Yes
CPU configuration (max)1
Intel Virtualization Technology (VT-x)Yes
Intel TSX-NI version0.00
Intel Stable Image Platform Program (SIPP) version0.00
Intel Secure Key Technology version1.00
Intel Identity Protection Technology version1.00
Processor ARK ID134898
Intel 64Yes
Intel® Turbo Boost Technology2.0
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® vPro™ Platform EligibilityNo
Power
Power supply input frequency50 - 60 Hz
Power supply input voltage100 - 240 V
Power supply280 W
Operational conditions
Operating relative humidity (H-H)5 - 85%
Operating temperature (T-T)10 - 35 °C
Certificates
Compliance certificatesRoHS
Weight & dimensions
Volume8 L
Width313 mm
Depth286 mm
Height89 mm
Weight5 kg
Packaging content
Display includedNo
Logistics data
Harmonized System (HS) code84715000
Other features
On-board graphics cardYes
Processor manufacturerIntel
Harmonized System (HS) code84715000
