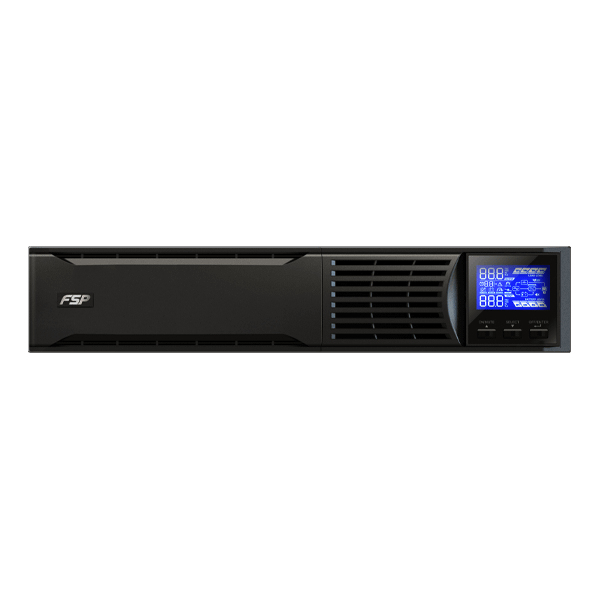

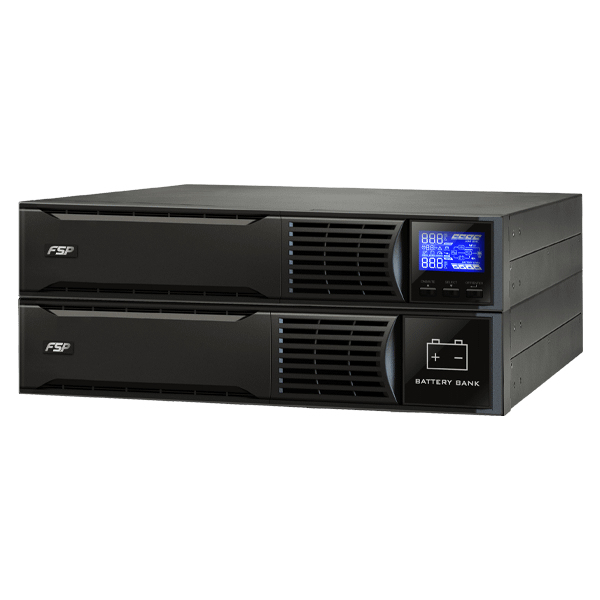

FSP Eufo 3k uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 8 AC outlet(s)
- Brand: FSP
- Category:
- SKU: PPF24A1500
- EAN: 4711140486147
3000 VA, 2700 W, 208 - 240 V, 3:1, 438 x 630 x 88 mm, 29.3 kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Eufo 3K Line-Interactive 3 |
PPF24A1500 |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,182.38 | ||
| Amazon | New | 3461 hours ago | £928.04 |
Related Products
-
Category: Uninterruptible Power Supplies (UPSs) -
Category: Uninterruptible Power Supplies (UPSs)
Description
FSP Eufo Series rating is from 1.1KVA to 3.0KVA and implemented protect functions for power failures, surge overvoltage and brownout. Rack & Tower with easy-shift LCD design is flexible for installation. Moreover, this series built/in Efficiency corrective Optimizer (ECO) that the efficiency is up to 98% for more energy saving. The application is suitable for networking, telecom, server and mission/critical applications.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 1.5% |
| Output power | 2700 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.99 |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Efficiency (Battery mode) | 92% |
| Total Harmonic Distortion (THD) (linear load) | 2% |
| Total Harmonic Distortion (THD) (non-linear load) | 5% |
| Charging current | 1.5 A |
| Efficiency (Line Mode) | 95% |
| Efficiency (ECO mode) | 97% |
| Performance | |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of phases | 1 |
| Response time | 6 ms |
| LED indicators | Yes |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Output voltage regulation | 1.5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Response time | 6 ms |
| Output power | 2700 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.99 |
| Noise level | 45 dB |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Output power capacity | 3 kVA |
| Efficiency (Battery mode) | 92% |
| Total Harmonic Distortion (THD) (linear load) | 2% |
| Total Harmonic Distortion (THD) (non-linear load) | 5% |
| Efficiency (Line Mode) | 95% |
| Efficiency (ECO mode) | 97% |
| Input frequency | 50/60 Hz |
| Power source type | AC |
| Detachable power cord | Yes |
| Number of phases | 1 |
| Charging current | 1.5 A |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

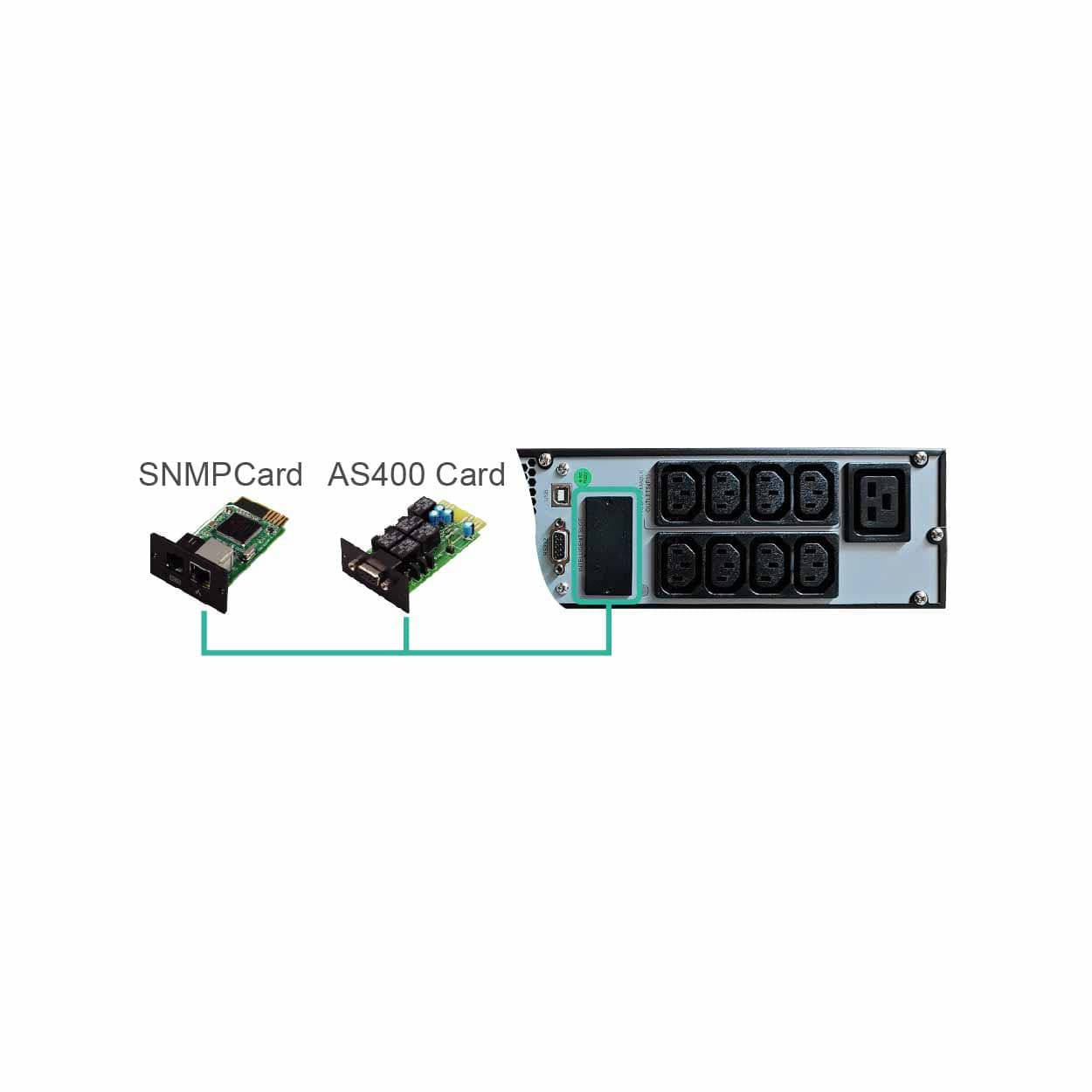

| SmartSlot | Yes |

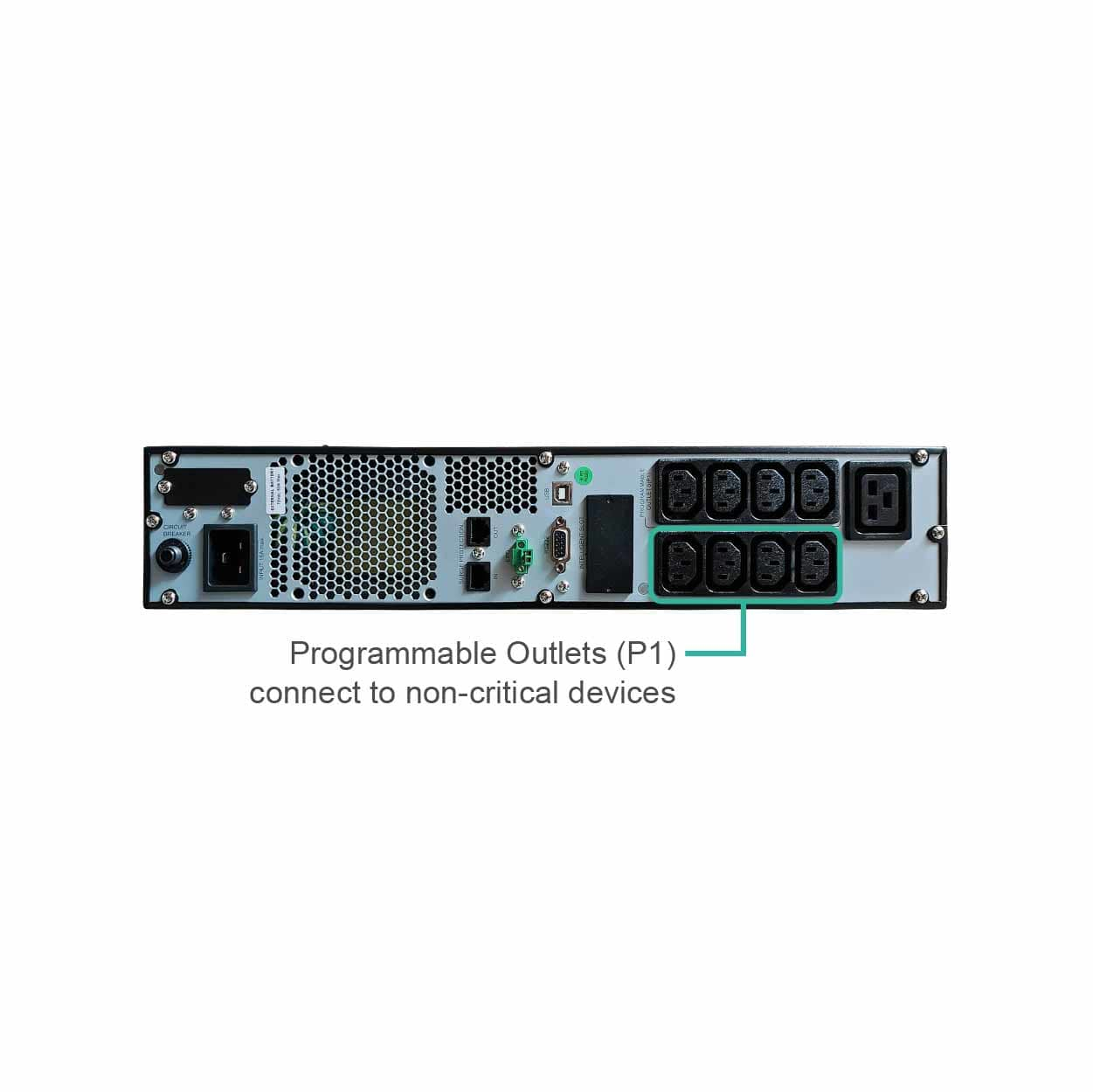

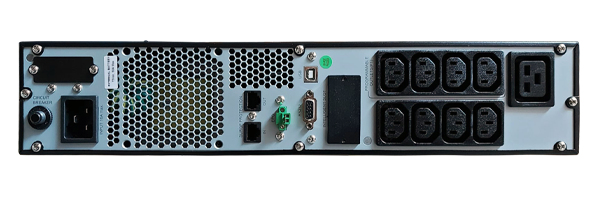

| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| USB port type | USB Type-B |
| Battery | |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Number of battery cells | 6 |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
| Battery recharge time(90%) | 4 h |
| Charging current | 1.5 A |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Active |
| Built-in fan | Yes |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE, EAC |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Weight & dimensions | |
| Weight | 29.3 kg |
| Width | 438 mm |
| Height | 88 mm |
| Depth | 630 mm |
| Packaging data | |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Software CD | Yes |
| Other features | |
| Number of phases | 1 |
| Packaging content | |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
| Software CD | Yes |
