EnGenius Managed AP Outdoor Dual Band 11ax 574+1200Mbps 2T2R 2.5GbE PoE.at(+) 4x5dBi RP-SMA IP67
- Brand: EnGenius
- Category:
- SKU: EWS850-FIT
- EAN: 0655216010987 4713361936234
Wi-Fi, 2.4/5 GHz, PoE, QoS, 1x RJ-45, VLAN, IP67
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Managed/Standalone Outdoor Dual Band 11ax 2x2 2.5Gb Access point |
EWS850-FIT |
Description

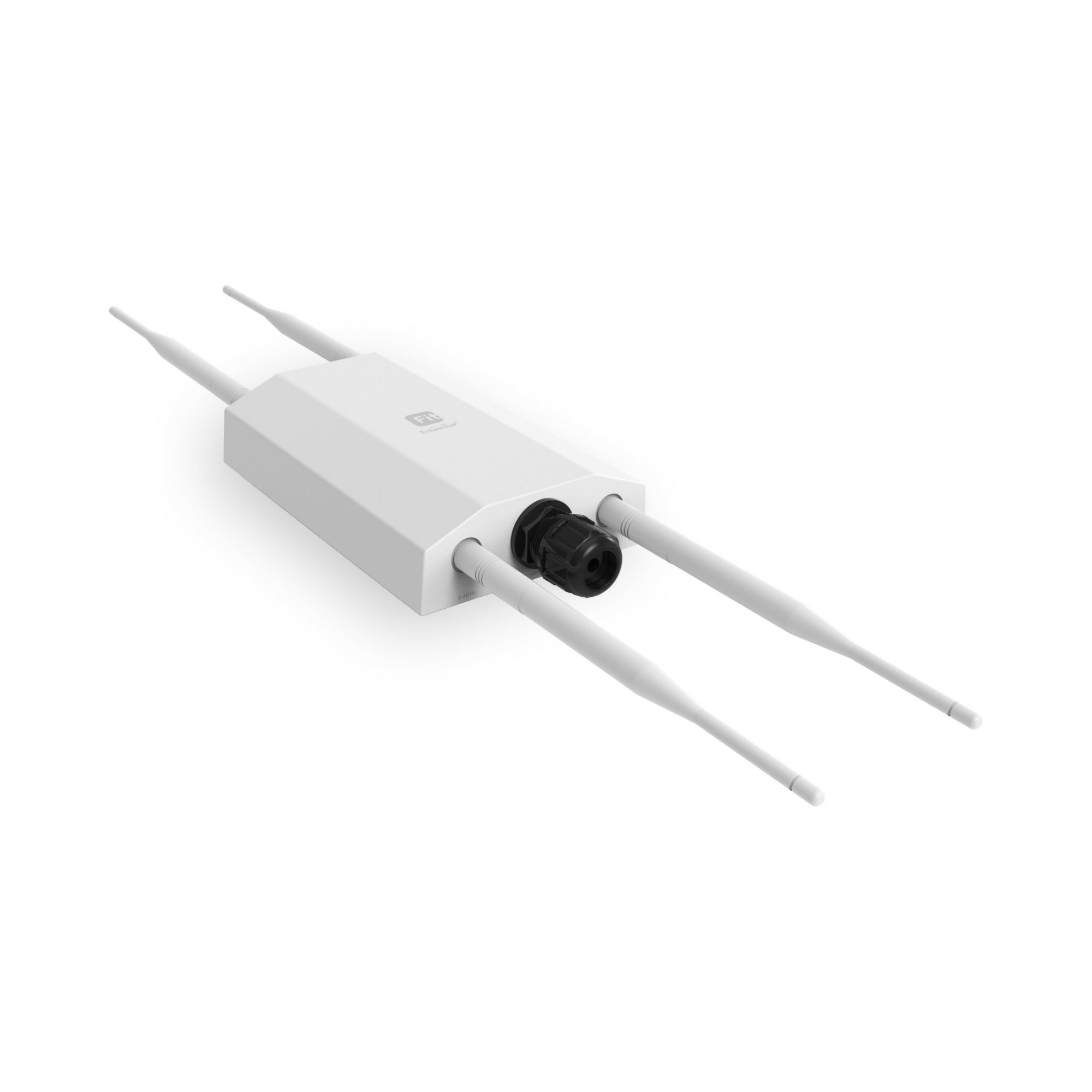

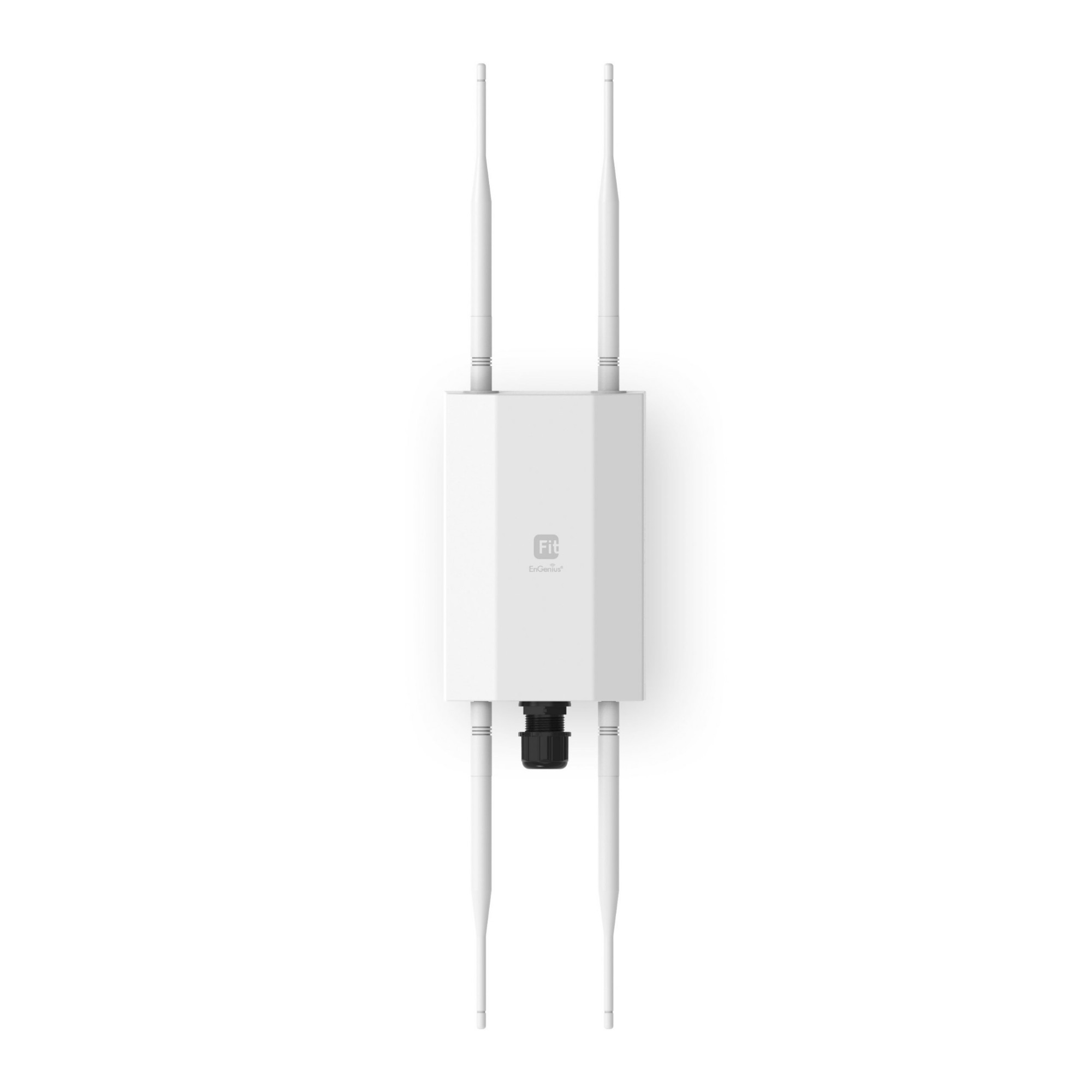

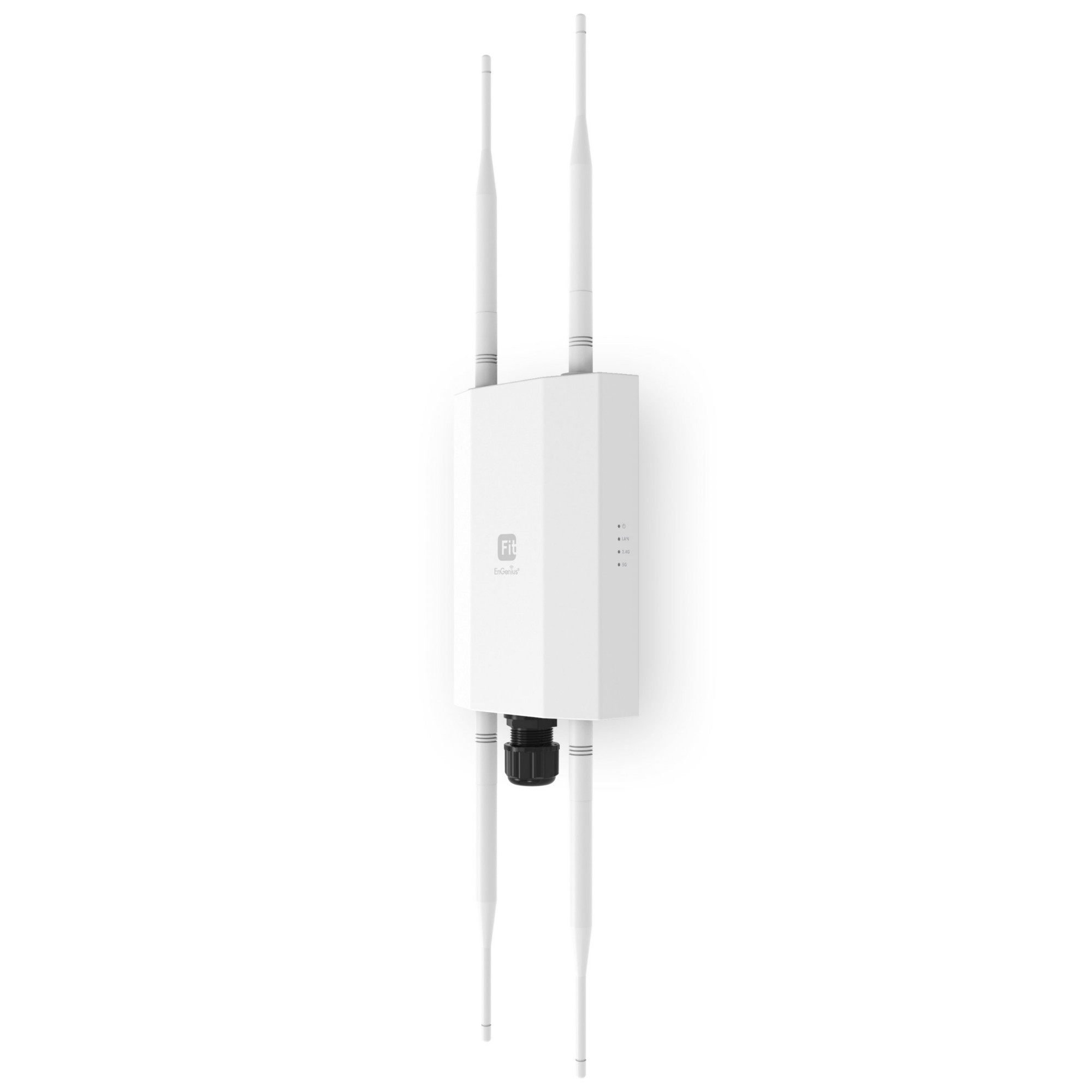

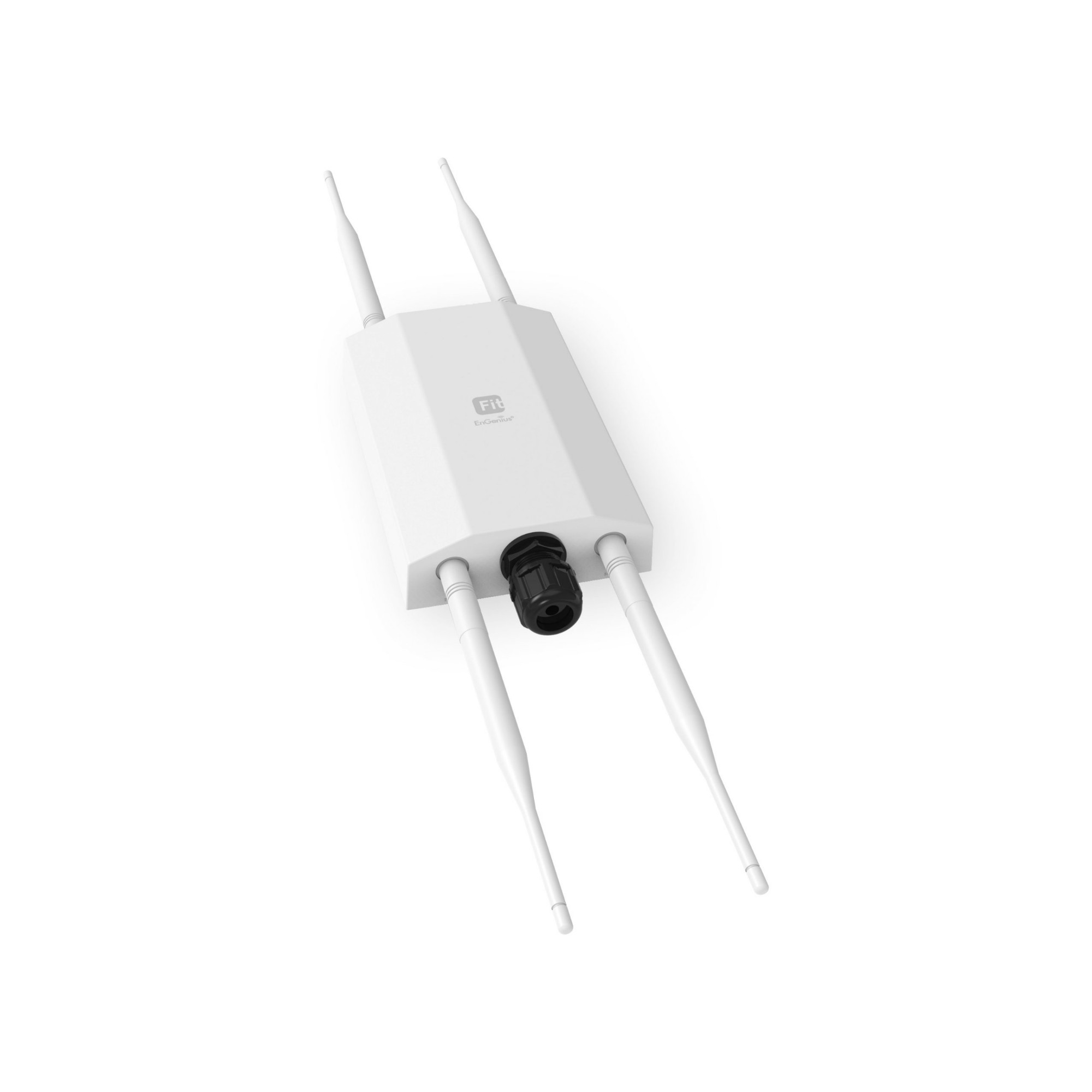

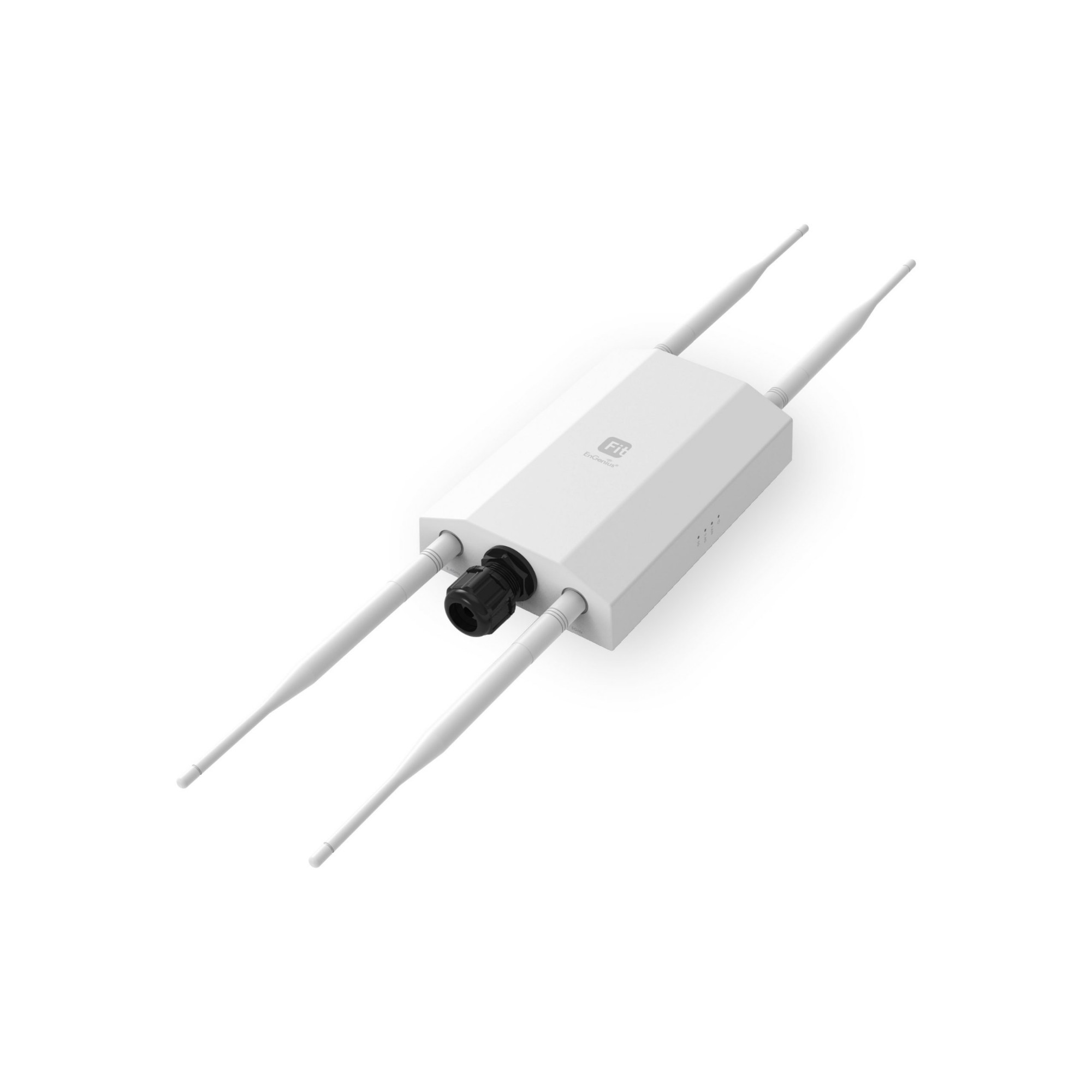

The EnGenius Fit Managed EWS850-FIT, a Wi-Fi 6 (802.11ax) 2x2 IP67 dual-band outdoor wireless access point designed for small business environments and provides maximum speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps (5 GHz frequency). This IP67-rated weatherproof and ruggedized wireless AP can be deployed outdoors. Select cloud or on-premises management options based on network architecture, administrative permissions, and technical aptitude. Business-class features optimize network efficiency ensuring secure, reliable, and high performance while r
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | DSSS |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Certification | FCC, CE, IC |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A53 |
| Processor frequency | 1800 MHz |
| Network | |
| Spread spectrum method | DSSS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Spread spectrum method | DSSS |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Virtual LAN features | Tagged VLAN |
| BeamForming | Yes |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A53 |
| Processor frequency | 1800 MHz |
| Security | |
| Number of SSID supported | 8 |
| Security algorithms | SNMP, SNMPv2, SNMPv3, WPA2-AES, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 15.9 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| DC voltage range | 48 - 54 V |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Pole, Wall |
| Product colour | White |
| LED indicators | LAN, Power, WLAN |
| Certification | FCC, CE, IC |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5 dBi |
| Antenna connector type | SMA |
| Antenna direction type | Omni-directional |
| Antenna features | Detachable antenna |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC, CE, IC |
| Indication | |
| LED indicators | LAN, Power, WLAN |
| Weight & dimensions | |
| Width | 124 mm |
| Depth | 190 mm |
| Weight | 700 g |
| Height | 52.5 mm |
| Package width | 284 mm |
| Package depth | 144 mm |
| Package height | 234 mm |
| Package weight | 1.77 kg |
| Packaging data | |
| Quick start guide | Yes |

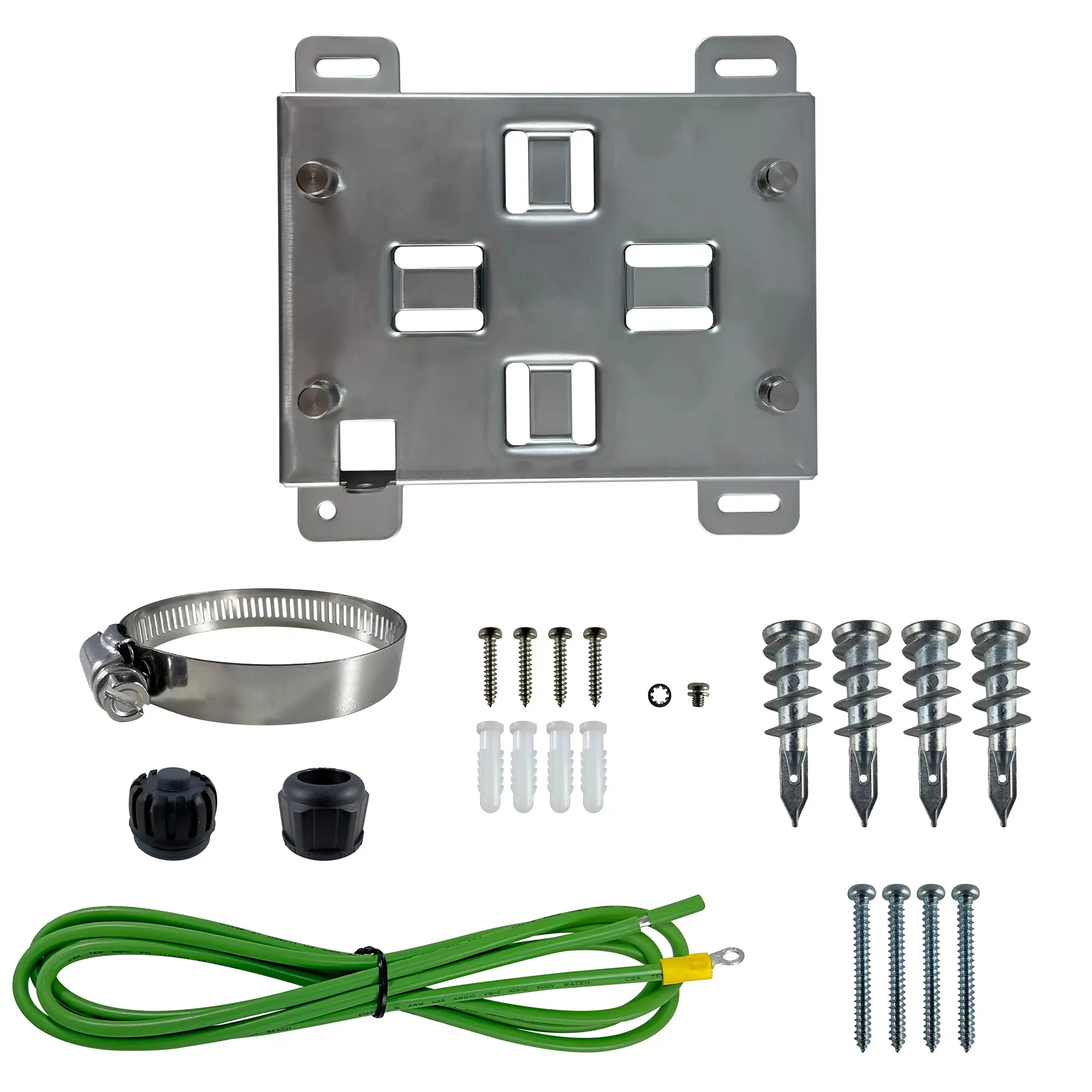

| Mounting kit | Yes |
| PoE adapter included | Yes |
| Package width | 284 mm |
| Package depth | 144 mm |
| Package height | 234 mm |
| Package weight | 1.77 kg |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Antenna included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Logistics data | |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 310 mm |
| Master (outer) case gross weight | 11.9 kg |
| Products per master (outer) case | 6 pc(s) |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
