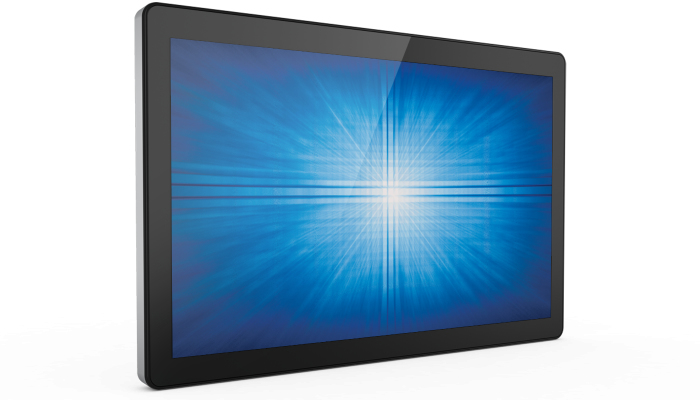

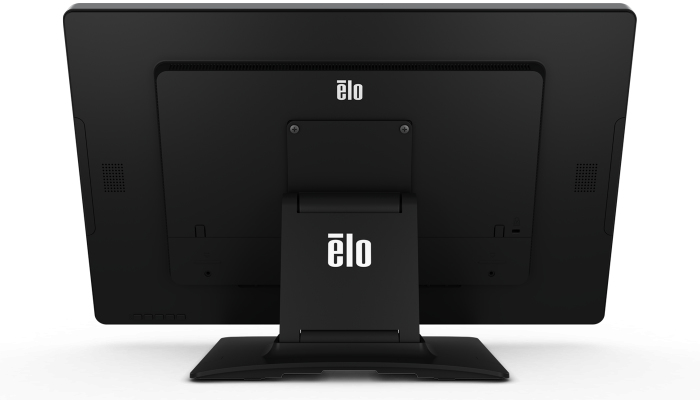

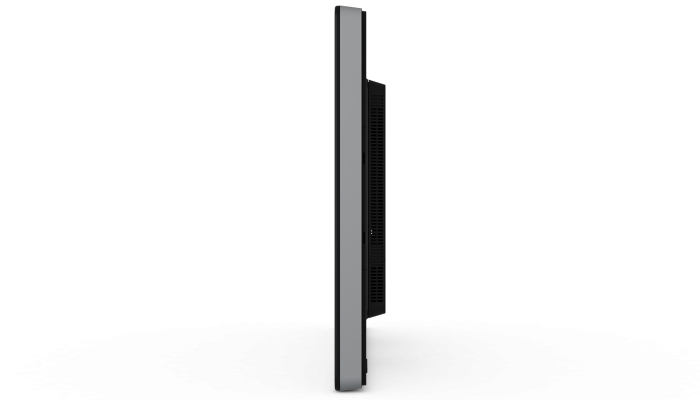

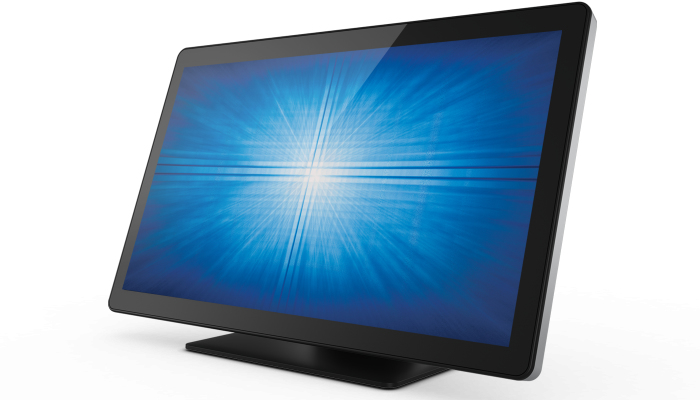

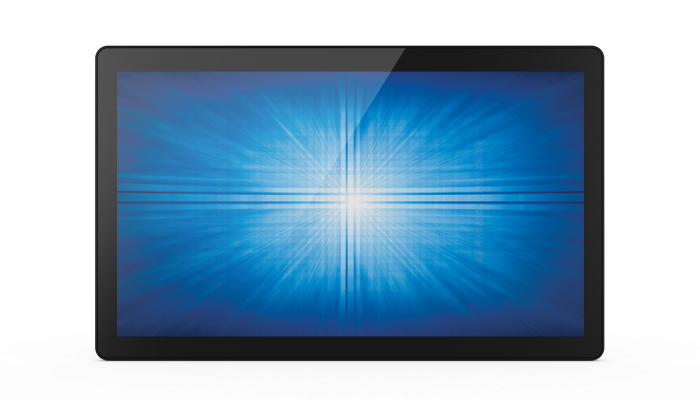

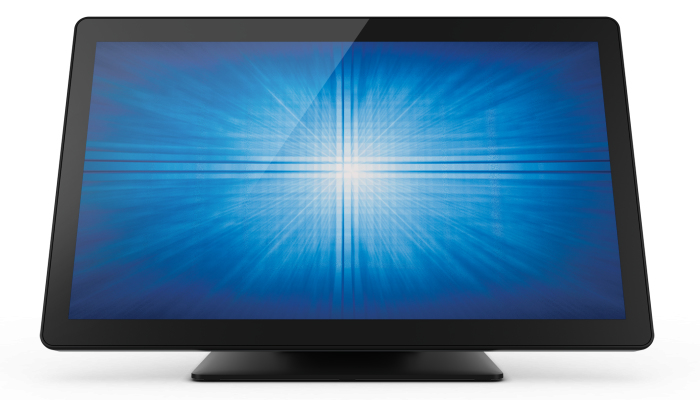

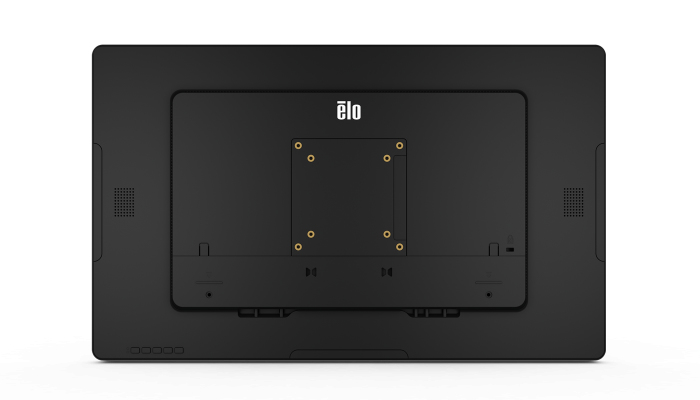

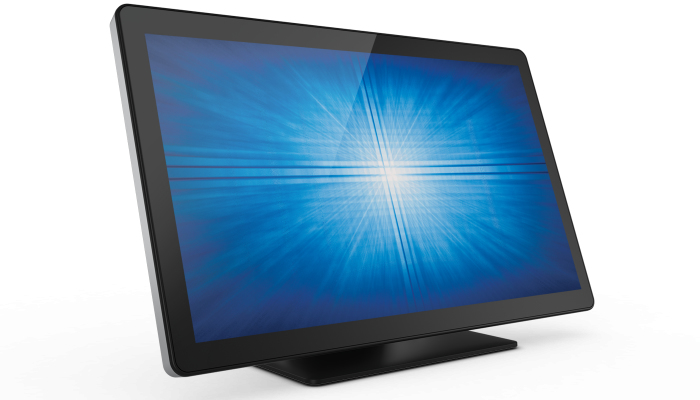

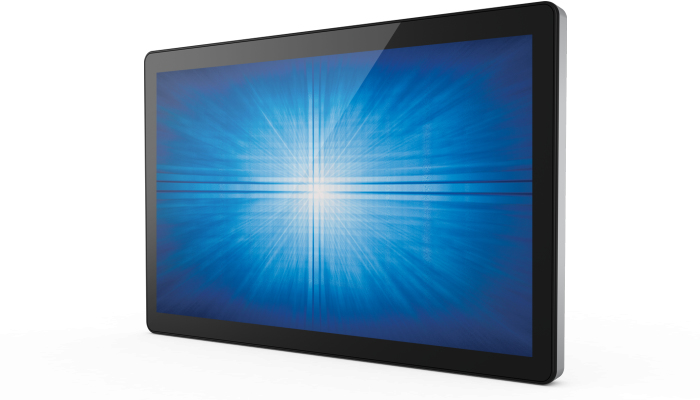

Elo Touch Solutions I-Series E970879 All-in-One PC/workstation Intel® Celeron® N3160 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen 2 GB DDR3L-SDRAM 128 GB SSD Windows 10 Wi-Fi 5 (802.11ac) Black
- Brand: Elo Touch Solutions
- Category:
- SKU: E970879
- EAN: 0815335023170
21.5'' TFT LCD (LED) PCAP, Intel Celeron N3160 (1.6 GHz, 4-Core), 2GB DDR3L SODIMM, 128GB 2.5" 7mm SATA SSD, 1 x Gigabit LAN RJ-45, Wifi 802.11a/b/g/n, Bluetooth 4.0, Micro HDMI, 2 x Micro USB 3.0, Win10
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,255.39 |
Description
The multi-purpose fixed tablet form factor 21.5-inch I-Series for Windows interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet durable fixed tablet form factor at only 1.8 inches thick. The I-Series is designed for easy in-field system upgrades and ease of serviceability bringing reliability and performance with the latest developments in touchscreen technology. The fully integrated I-Series is ideal for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical environments. And with flexible mounting options in portrait, landscape and tabletop orientation using Elo wall, floor and tabletop mounting accessories, application use is endless.
Processing power
The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.
Integrated touch
Available in two wide-format display sizes, 15.6 inches and 21.5 inches, the I-Series for Windows all-in-one touchscreen features our industry-leading TouchPro™ projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease.
Configured perfection
Create additional interactive touchpoints with our built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.
Commercial grade
The 21.5-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. The 21.5-inch I-Series meets EN62262 IK06 & UL60950 ball drop impact protection.
Processing power
The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.
Integrated touch
Available in two wide-format display sizes, 15.6 inches and 21.5 inches, the I-Series for Windows all-in-one touchscreen features our industry-leading TouchPro™ projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease.
Configured perfection
Create additional interactive touchpoints with our built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.
Commercial grade
The 21.5-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. The 21.5-inch I-Series meets EN62262 IK06 & UL60950 ball drop impact protection.
Specifications
| Display | |
|---|---|
| Detachable display | No |
| Screen shape | Flat |
| HD type | Full HD |
| Display number of colours | 16.78 million colours |
| Panel type | TFT |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| LED backlight | Yes |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Display brightness | 225 cd/m² |
| Native aspect ratio | 16:9 |
| Response time | 30 ms |
| Processor | |
| Stepping | D1 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Processor codename | Braswell |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Tjunction | 90 °C |
| Thermal Design Power (TDP) | 6 W |
| Processor series | Intel Celeron N3000 series |
| Processor code | SR2KP |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
| Maximum number of PCI Express lanes | 4 |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Processor cache type | L2 |
| Scenario Design Power (SDP) | 4 W |
| Conflict-Free processor | Yes |
| Integrated 4G WiMAX | No |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 2.24 GHz |
| Processor family | Intel® Celeron® |
| Processor model | N3160 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor cache | 2 MB |
| Processor socket | BGA 1170 |
| Processor manufacturer | Intel |
| PCI Express slots version | 2.0 |
| Memory | |
| Internal memory | 2 GB |
| Memory layout (slots x size) | 1 x 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 1600 MHz |
| Hard drive | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Storage | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
| SSD interface | SATA |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Graphics | |
| On-board graphics card burst frequency | 640 MHz |
| On-board graphics card base frequency | 320 MHz |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card DirectX version | 12.0 |
| Number of displays supported (on-board graphics) | 3 |
| Number of execution units | 12 |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® HD Graphics 400 |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Ports & interfaces | |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
| Audio output | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| DVI port | No |
| Processor special features | |
| Processor code | SR2KP |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| UART | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor package size | 25 x 27 mm |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel 64 | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| CPU configuration (max) | 1 |
| Intel Secure Boot | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Smart Connect Technology version | 0.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Secure Boot Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Identity Protection Technology version | 1.00 |
| Processor ARK ID | 91831 |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Technical details | |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Product type | All-in-One PC |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Smart Response Technology | No |
| Product colour | Black |
| Wall mountable | Yes |
| Placement supported | Horizontal/Vertical |
| Design | |
| Product colour | Black |
| Wall mountable | Yes |
| Performance | |
| Product type | All-in-One PC |
| Placement supported | Horizontal/Vertical |
| Software | |
| Operating system installed | Windows 10 |
| Power | |
| Battery technology | Lithium-Ion (Li-Ion) |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19 V |
| Power consumption (typical) | 43.97 W |
| Multimedia | |
| Built-in camera | Yes |
| Weight & dimensions | |
| Package width | 685 mm |
| Package depth | 180 mm |
| Package height | 493 mm |
| Package weight | 8.03 kg |
| Width (with stand) | 524 mm |
| Depth (with stand) | 45 mm |
| Height (with stand) | 324 mm |
| Weight (with stand) | 5.47 kg |
| Packaging data | |
| Package width | 685 mm |
| Package depth | 180 mm |
| Package height | 493 mm |
| Package weight | 8.03 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | UL/cUL, FCC, TUV, CB, CE, VCCI |
| Packaging content | |
| Mouse included | No |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Keyboard included | No |
| Other features | |
| Detachable display | No |
| USB ports quantity | 2 |
| Battery technology | Lithium-Ion (Li-Ion) |
| On-board graphics card | Yes |
| USB connector type | Micro-USB |
| SSD interface | SATA |
| SSD capacity | 128 GB |
| Processor socket | BGA 1170 |
| Processor manufacturer | Intel |
| Power consumption (typical) | 43.97 W |
| PCI Express slots version | 2.0 |
| Number of SSDs installed | 1 |
| Line-out | Yes |
| HDMI | Yes |
