Elo Touch Solutions 4304L Interactive flat panel 108 cm (42.5") LED 500 cd/m² Black Touchscreen 24/7
- Brand: Elo Touch Solutions
- Category:
- SKU: E103351
- EAN: 0843173156057
42.5'', Active matrix TFT LCD, 16:9, 1920 x 1080 @ 60hz, 4000:1, 2 x HDMI 1.4, USB-C, USB-A, 47 W, 1007.4 x 595.7 x 55.6 mm, 17.87 kg
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
4304L 43-inch wide LCD Monitor, FHD, HDMI 1.4 & DisplayPort 1.2, Projected Capacitive 40-Touch with Palm Rejection & Touch Thru, Clear Anti-friction Glass, USB-C, Black |
E103351 | |||
|
4304L 43-INCH WIDE LCD MONITOR View on Xvantage |
CL15242 | |||
|
4304L, Projected Capacitive, Full HD, USB-C, Ethernet, kit, black |
elo4304 | |||
|
Elo 4304L - Commercial Grade - LED monitor - Full HD (1080p) - 42.5" |
CL15242 | |||
|
4304L 43-INCH WIDE LCD MONITOR |
E103351 | |||
|
Elo 4304L skærm - LED baglys - 42.5" - |
538914 | |||
| Ingram Micro CS |
4304L 43-INCH WIDE LCD MONITOR |
CL15242 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
4304L Interactive flat panel 108 cm (42.5") LED 500 cd/m² Black Touchscreen 24/7 |
E103351 | |||
Description
Interactive Display
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

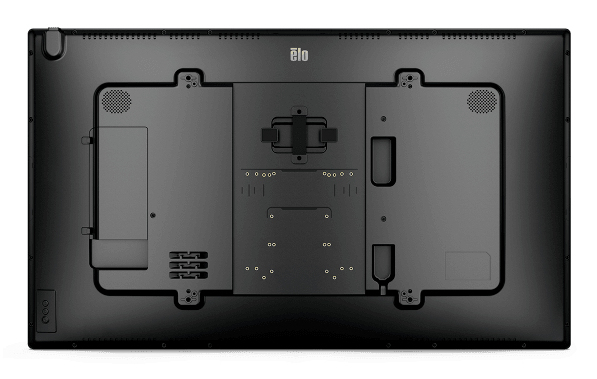

The back of your display never looked so clean.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo's 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.
The back of your display never looked so clean.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you're enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.
Specifications
| Display | |
|---|---|
| Panel type | TFT-LCD |
| Display number of colours | 16.7 million colours |
| Number of simultaneous touchpoints | 2 |
| Touchscreen | Yes |
| Active display area (W x H) | 940.9 x 529.3 mm |
| Display technology | LED |
| Display diagonal | 108 cm (42.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 500:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Vertical scan range | 24 - 64 Hz |
| Horizontal scan range | 30 - 70 kHz |
| Number of displays | 1 |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| DisplayPort version | 1.2 |
| USB port | Yes |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI input ports quantity | 2 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Product colour | Black |
| Panel mounting interface | 100 x 100,400 x 400 mm |
| Certification | UL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950 |
| VESA mounting | Yes |
| Mounting type | Desk/Wall |
| Tilt adjustment | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Ambient light sensor | Yes |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Power | |
| Power consumption (sleep) | 1.43 W |
| Power consumption (off) | 0.29 W |
| Power consumption (typical) | 47 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy consumption (SDR) per 1000 hours | 41 kWh |
| Weight & dimensions | |
| Display width | 1007.4 mm |
| Display depth | 55.6 mm |
| Display height | 595.7 mm |
| Display weight | 17.9 kg |
| Packaging data | |
| Package width | 1150 mm |
| Package depth | 187 mm |
| Package height | 820 mm |
| Package weight | 23 kg |
| Cables included | Power, USB Type-C to USB Type-C |
| Packaging content | |
| Cables included | Power, USB Type-C to USB Type-C |
| Tilt adjustment | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | UL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950 |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| Panel type | TFT-LCD |
| DisplayPort version | 1.2 |
| Number of simultaneous touchpoints | 2 |
| Ambient light sensor | Yes |
| Network | |
| Ethernet LAN | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Features | |
| Wall mountable | Yes |
| Other features | |
| USB connector type | Micro-USB, USB Type-A, USB Type-C |
| Panel type | TFT-LCD |
| DisplayPort version | 1.2 |
| Number of simultaneous touchpoints | 2 |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| Aspect ratio | 16:9 |
| Energy efficiency scale | A to G |
| Tilt adjustment | Yes |
