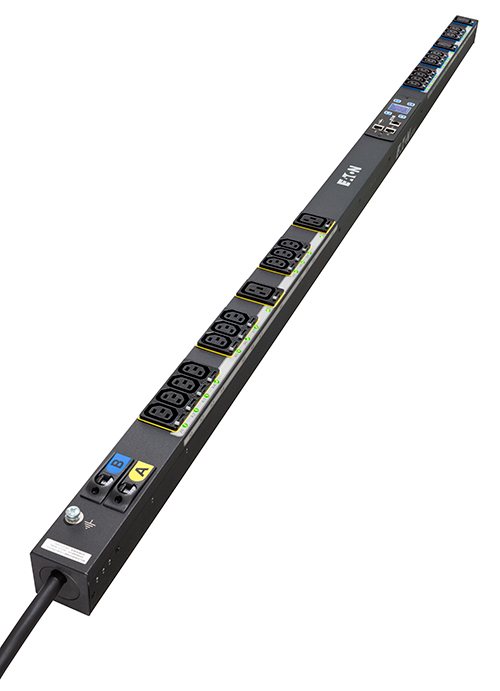

Eaton ESWB05 power distribution unit (PDU) 24 AC outlet(s) 0U Black
- Brand: Eaton
- Category:
- SKU: ESWB05
- EAN: 3553340696022
Switched, 7kW, 230V In, IEC 60309 (32A, Single-phase) In, 20x C13 Out, 4x C19 Out
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
EPDU G3 SWITCHED IEC60309 32A |
ESWB05 | |||
|
EATON ePDU PDU - Switched - IEC 60309 32A - 4 x IEC 60320 C19, 20 x IEC 60320 C13 |
STD10138106 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EPDU SW 0U (309 32A 1P)20XC13:4XC19 |
ESWB05 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £1,308.57 | ||
| Amazon | New | £1,308.57 | ||
| Amazon | New | £1,308.57 |
Description
ePDU G3 Switched models allow lights-out control of devices including switching devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Switched |
| Mounting | Vertical |
| Display | LCD |
| Product colour | Black |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 0U |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Output connections | 20 x C13 & 4 x C19 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 7400 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| Maximum input current per phase | 32 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 53 x 1604 x 52 mm |
| Weight | 4.9 kg |
| Width | 53 mm |
| Depth | 1604 mm |
| Height | 52 mm |
| Package weight | 7 kg |
| Packaging data | |
| Package weight | 7 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Compliance certificates | RoHS |
