DynaScan DS861LR4 Signage Display 2.17 m (85.6") LCD Wi-Fi 3500 cd/m² 4K Ultra HD Black Android 8.0
- Brand: DynaScan
- Category:
- SKU: DS861LR4
- EAN: 5704174599326
3840 x 2160, 86", LCD, 3500 nit, 8 ms, 1935.8 x 1106.8 x 79.0 mm, HDMI, DP, USB, MicroSD, Ethernet, Wi-Fi, Black
Offer details
Description

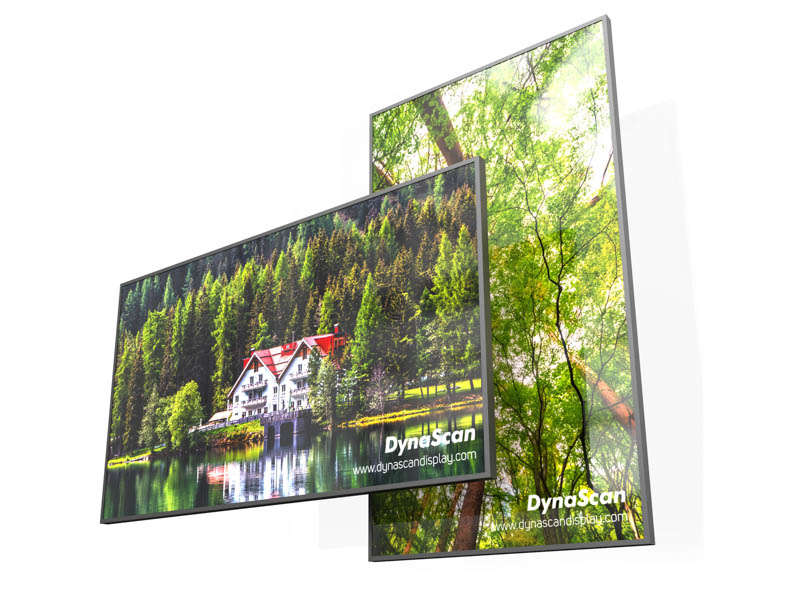

86” 3500 Nits Ultra-High Brightness Digital Signage Display
Measuring 86 inches, the DS861LR4 is the largest ultra-high bright professional LCD offering from DynaScan. The display features UHD 4K resolution with a high brightness LED backlight producing a 3500 nit sunlight-viewable image. Designed for large scale display applications in bright environments such as outdoor enclosures and storefront windows, each screen is TrueColor™ calibrated for remarkable color reproduction.
Sunlight Viewable
Designed for large-scale display applications in bright environments such as outdoor enclosures and storefront windows, the DS861LR4 features a high brightness LED backlight producing a 3500 nit sunlight-viewable image.
TrueColor™ Calibrated
Each screen is individually color calibrated to the D65 (6500K) CIE color standard. Not only does this produce a true, natural white, but also accurately reproduces brand colors, skin tones, and colorways.
Auto Brightness Control
Different external lighting conditions require different brightness levels. An onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly.
Ultra HD 4K Resolution
With Ultra HD 4K resolution, the DS861LR4 provides a super sharp image for easy-to-read text and incredible detail.
Built-In Media Player
An integrated Android™ based media player with WiFi offers users the freedom to select from the array of various media software solutions on the market or use the bundled DynaScan DSM365 application for local video playback, playlist creation, and content scheduling.
Intel® SDM Ready
An Intel® SDM slot to accept an Intel® Smart Display Module (sold separately). Supporting a variety of modern x64 operating systems, Intel® SDM delivers the same level of intelligence and interoperability as the Open Pluggable Specification, but in a smaller form factor. Compatible with both the Intel® Small (Intel® SDM–S) and Intel® SDM Large (Intel® SDM–L) form factors.
Specifications
| Display | |
|---|---|
| Display technology | LCD |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 3500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 100000 h |
| Haze rate | 3% |
| Ports & interfaces | |
| USB port | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 1 |
| HDMI input ports quantity | 2 |
| Design | |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 1.78 cm |
| Bezel width (side) | 1.78 cm |
| Bezel width (bottom) | 1.78 cm |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| Certification | CE / FCC / RoHS |
| VESA mounting | Yes |
| Performance | |
| Purpose | Universal |
| Ambient light sensor | Yes |
| On Screen Display (OSD) languages | English |
| Wi-Fi | Yes |
| Panel life | 100000 h |
| Power | |
| Power consumption (typical) | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
| Operating system installed | Android 8.0 |
| Internal storage capacity | 16 GB |
| Weight & dimensions | |
| Width | 1935.8 mm |
| Depth | 79 mm |
| Height | 1106.8 mm |
| Weight | 77 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | CE / FCC / RoHS |
| Technical details | |
| VESA mounting | Yes |
| Ambient light sensor | Yes |
| Thin Client | |
| Operating system installed | Android 8.0 |
| Internal storage capacity | 16 GB |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Wi-Fi | Yes |
| Display technology | LCD |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Bezel width (top) | 1.78 cm |
| Bezel width (side) | 1.78 cm |
| Bezel width (bottom) | 1.78 cm |
