Digitus Network cabinet Unique Light series - 800x800 mm (WxD)
- Brand: Digitus
- Category:
- SKU: DN-31200
- EAN: 4016032505006

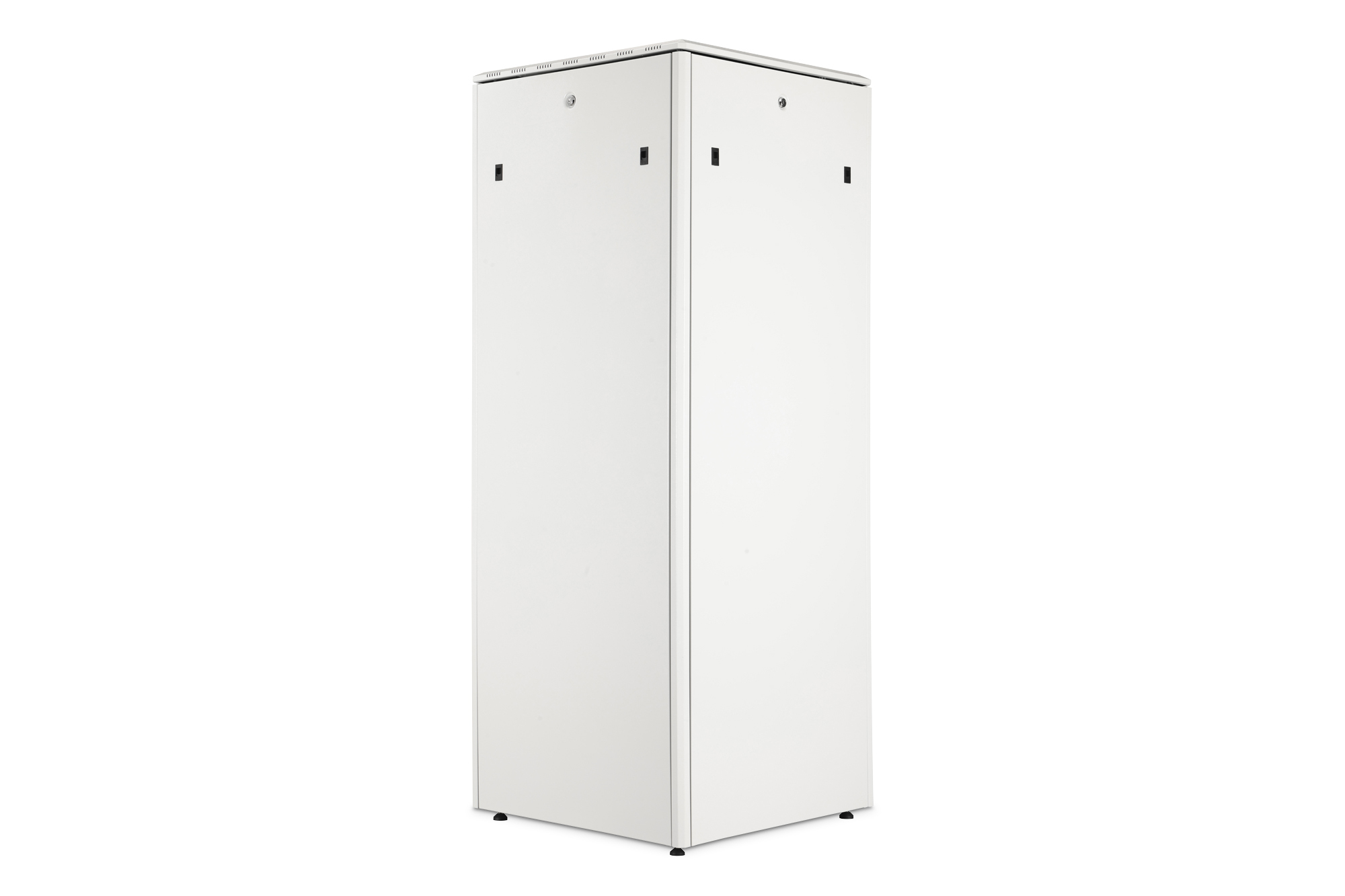

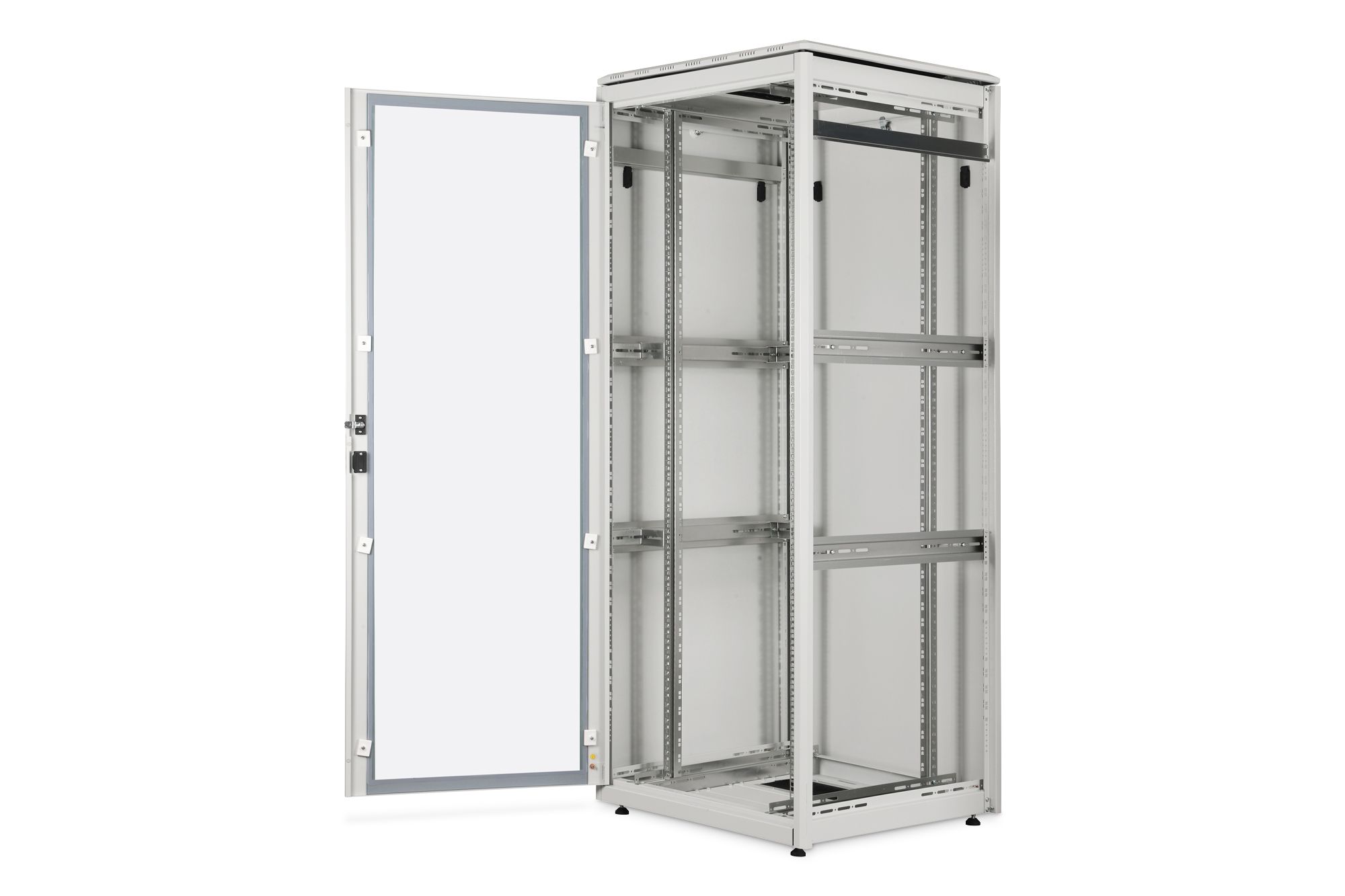

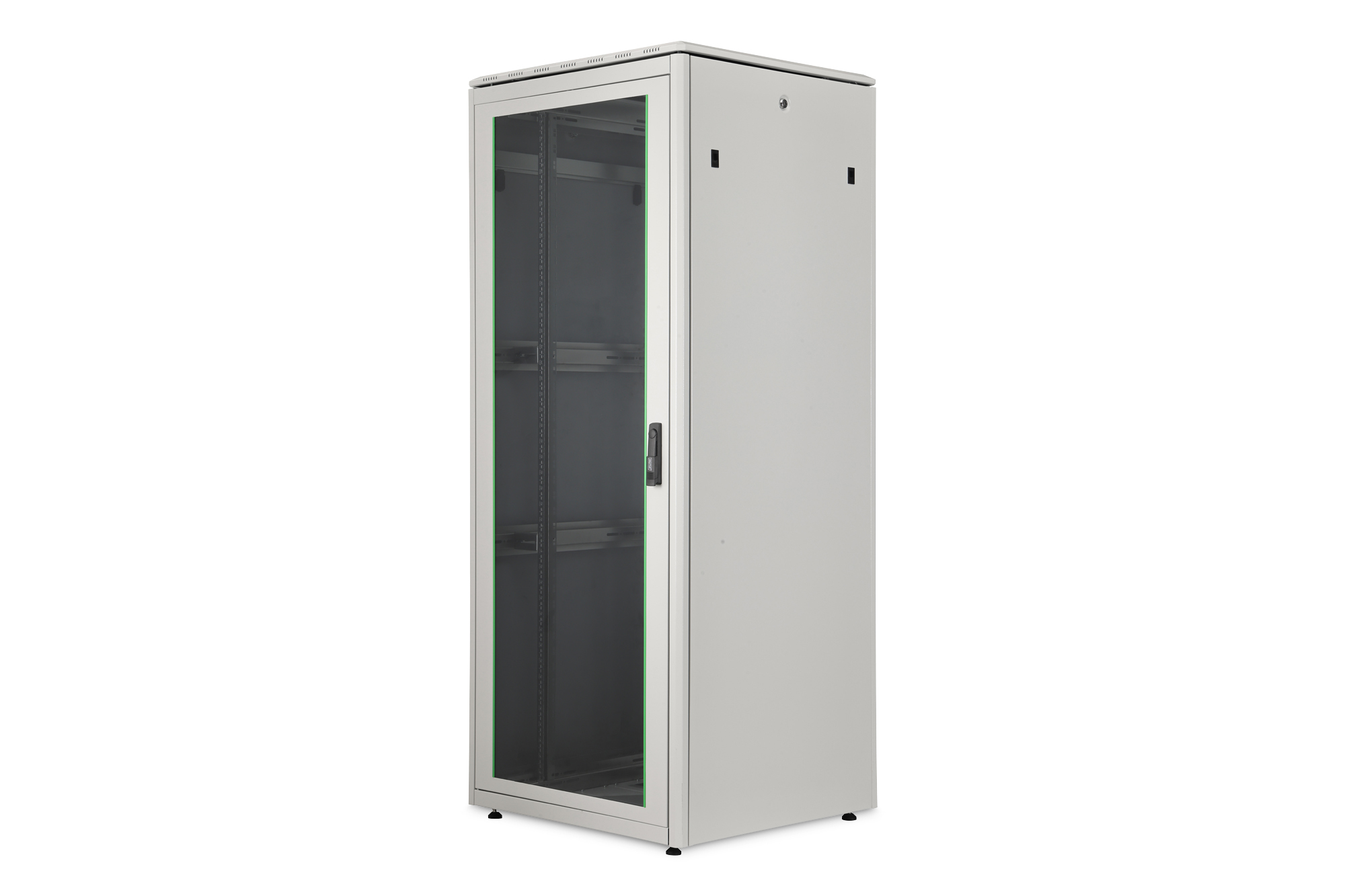

42U network cabinet, Unique Light 2053x800x800 mm, grey (RAL 7035)
Offer details
Related Products
Description
The DIGITUS® network cabinets of the Unique Light series combine maximum stability with great flexibility in cable management, for the high demands of modern IT infrastructure with the most diverse application scenarios.
- Load capacity of the 483 mm (19") profile rails of up to 800 kg

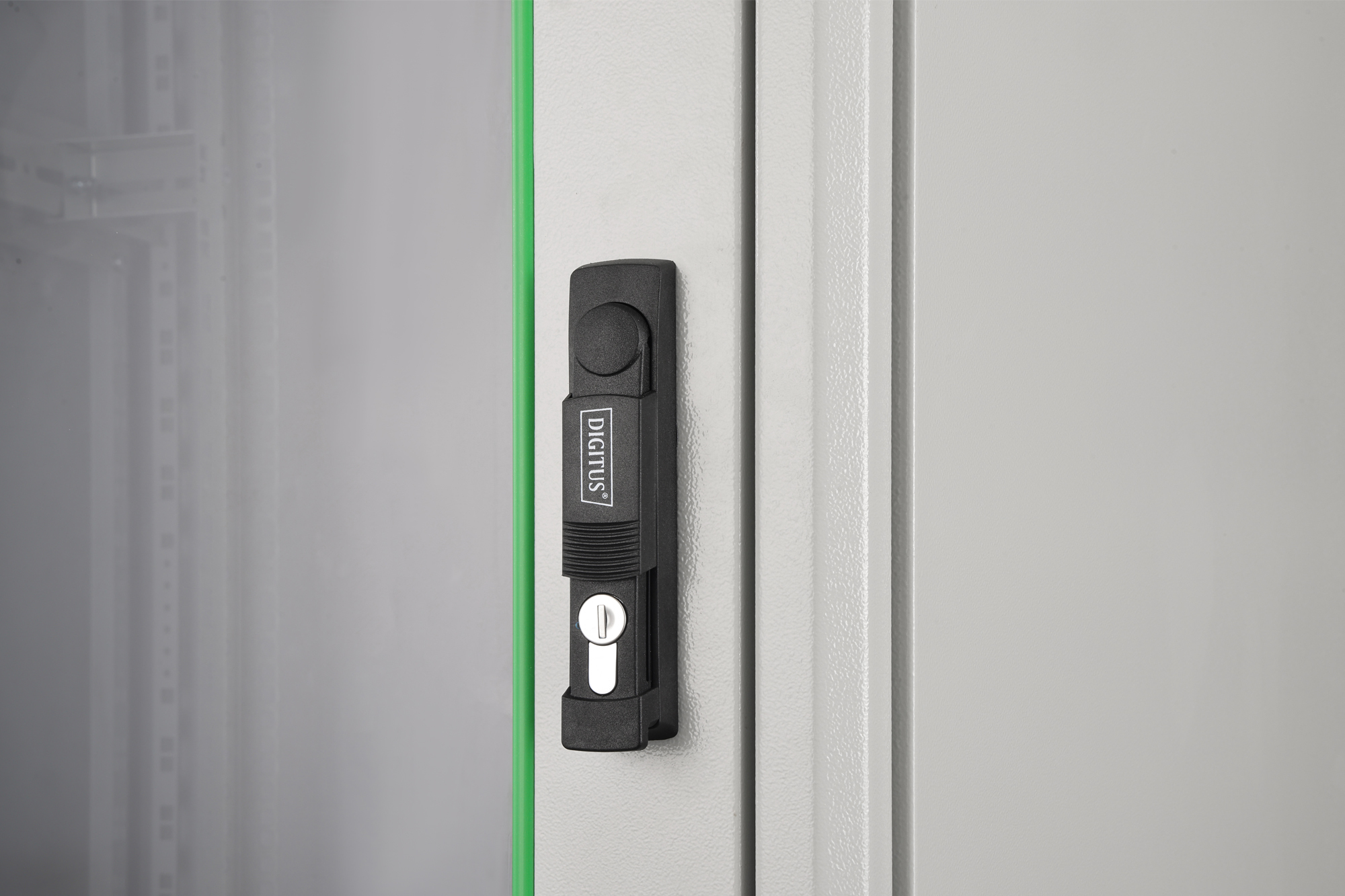

- Swivel handle with profile half-cylinder lock incl. key type 333 on the front door

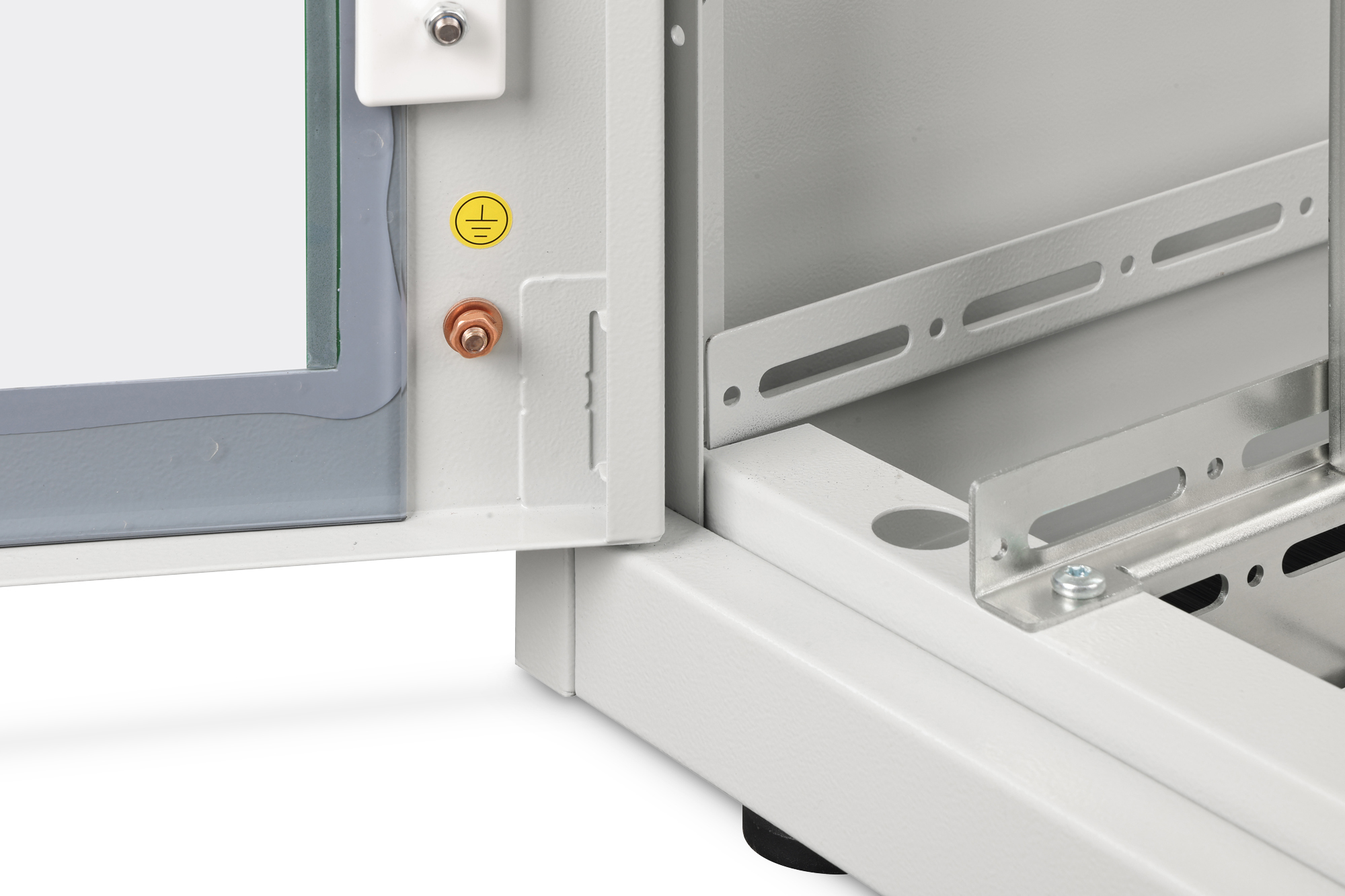

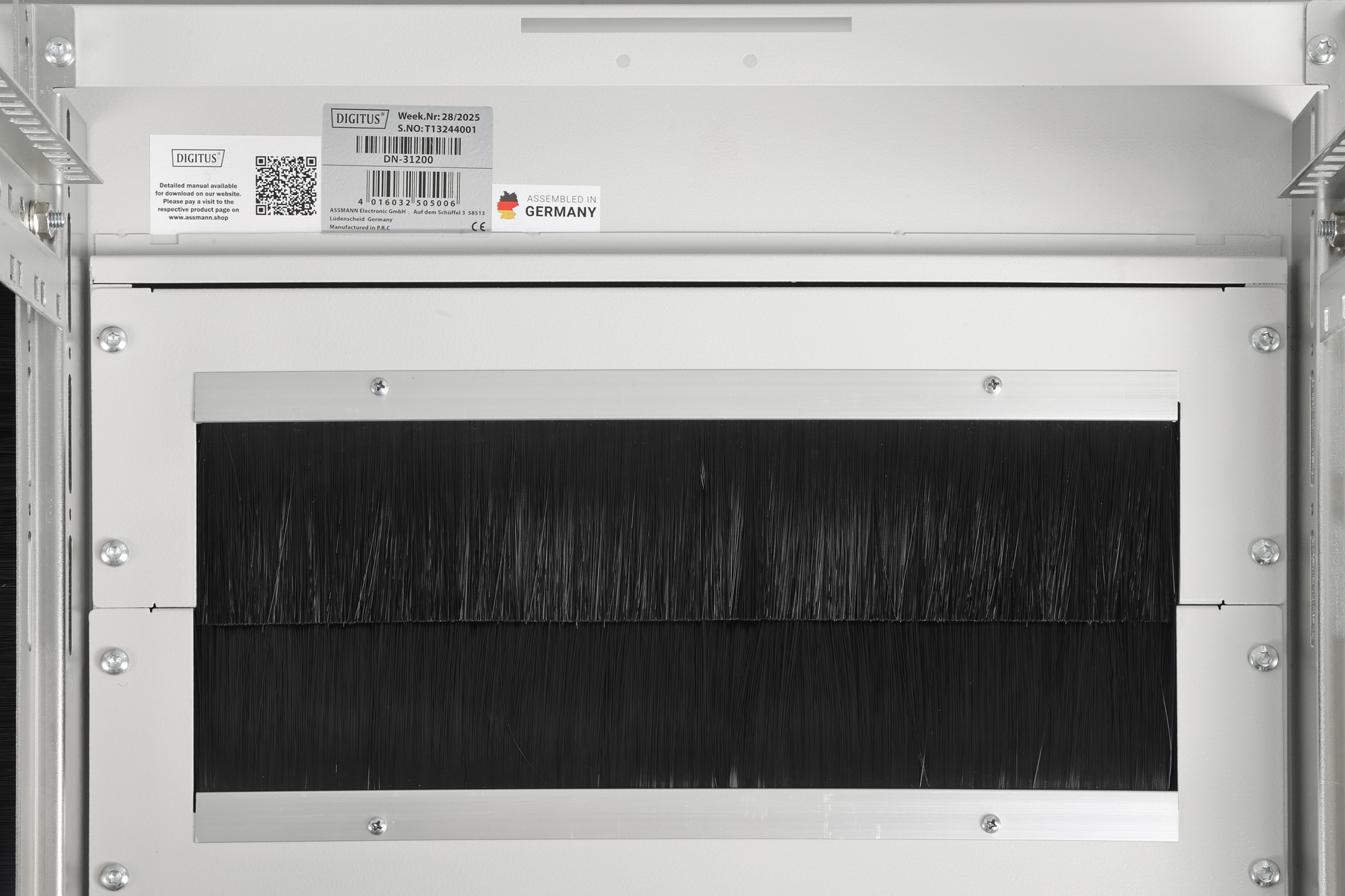

- Modular, openable base chassis with removable 19" blind panels

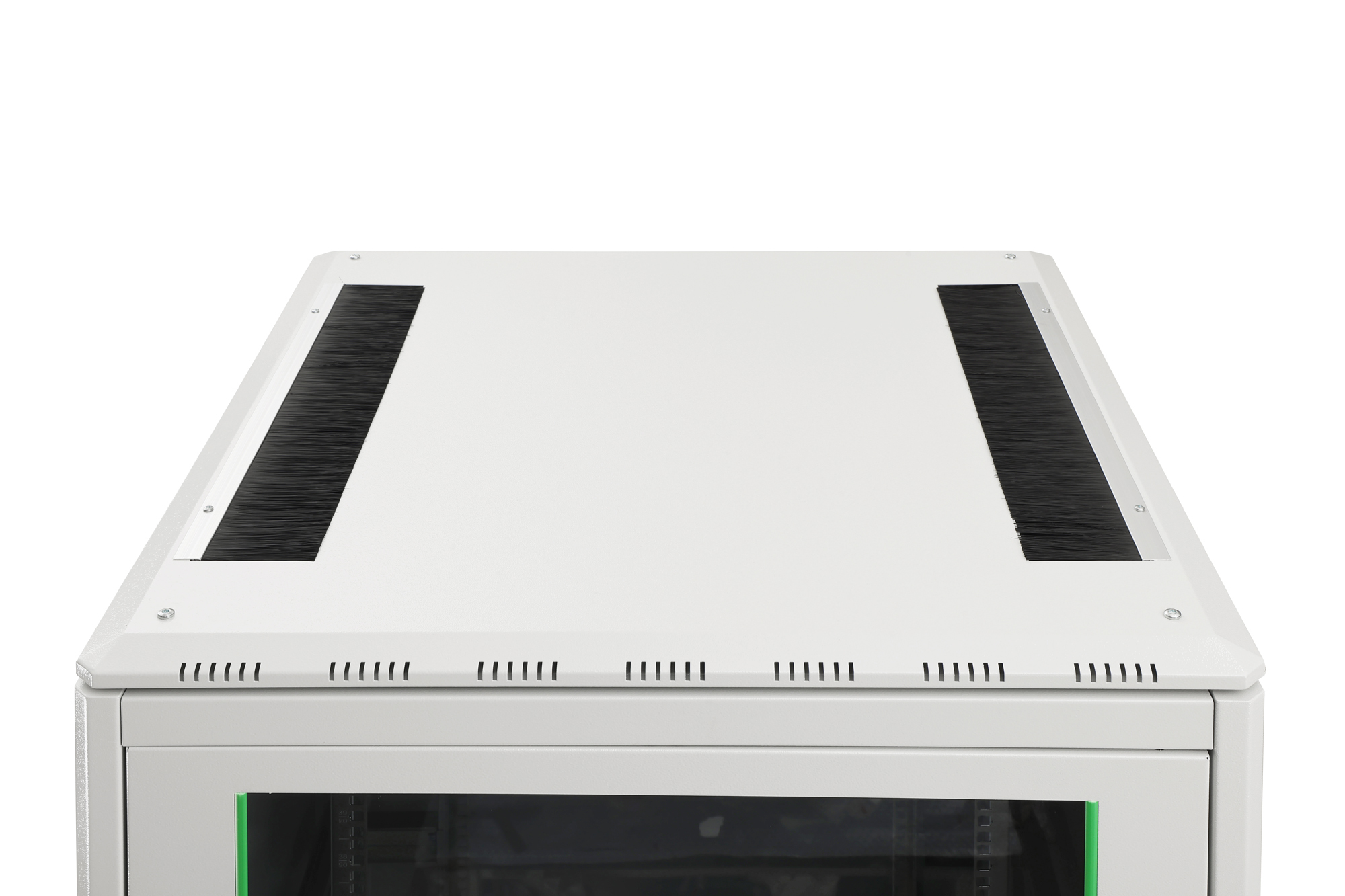

- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor

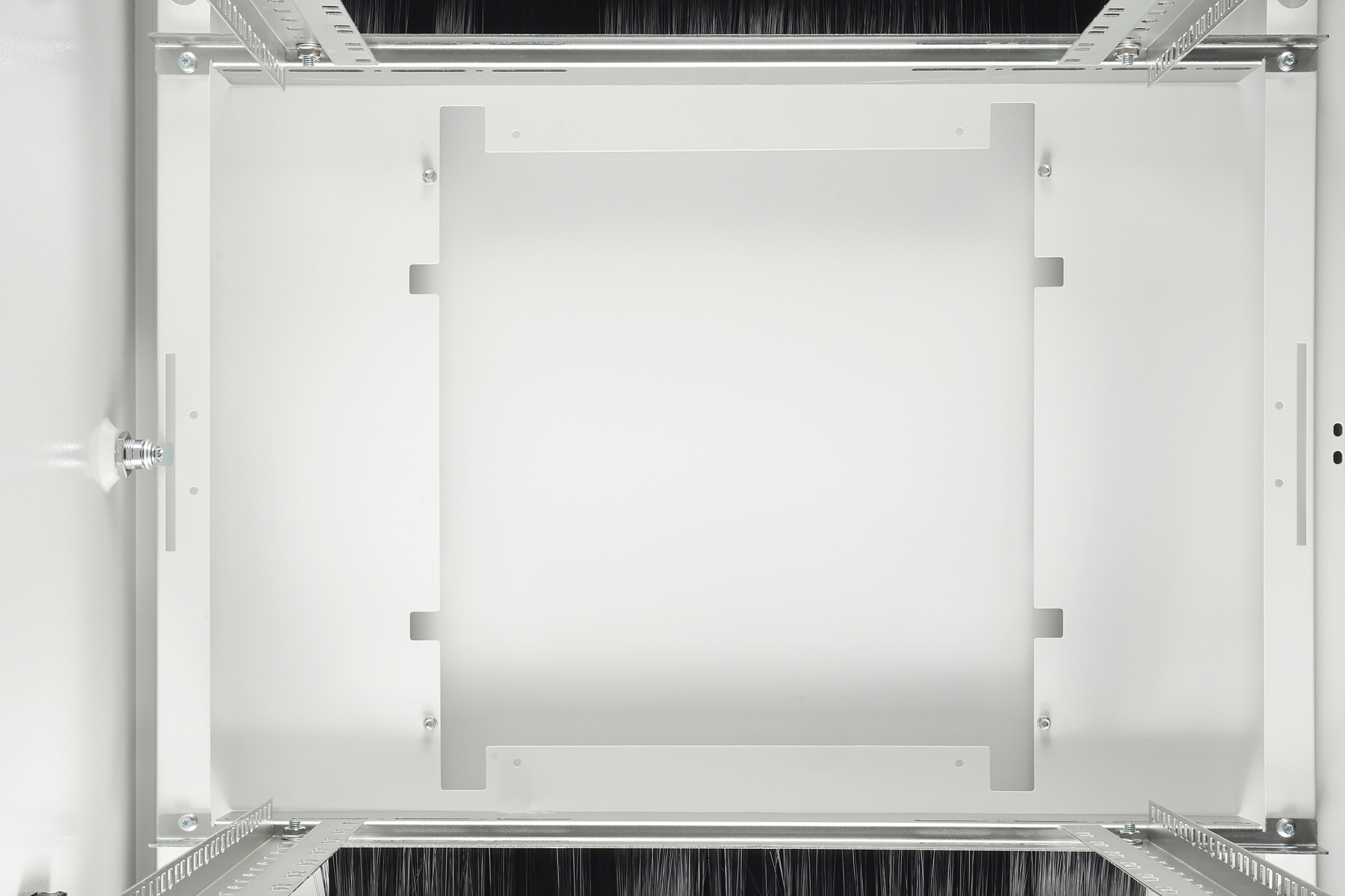

- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

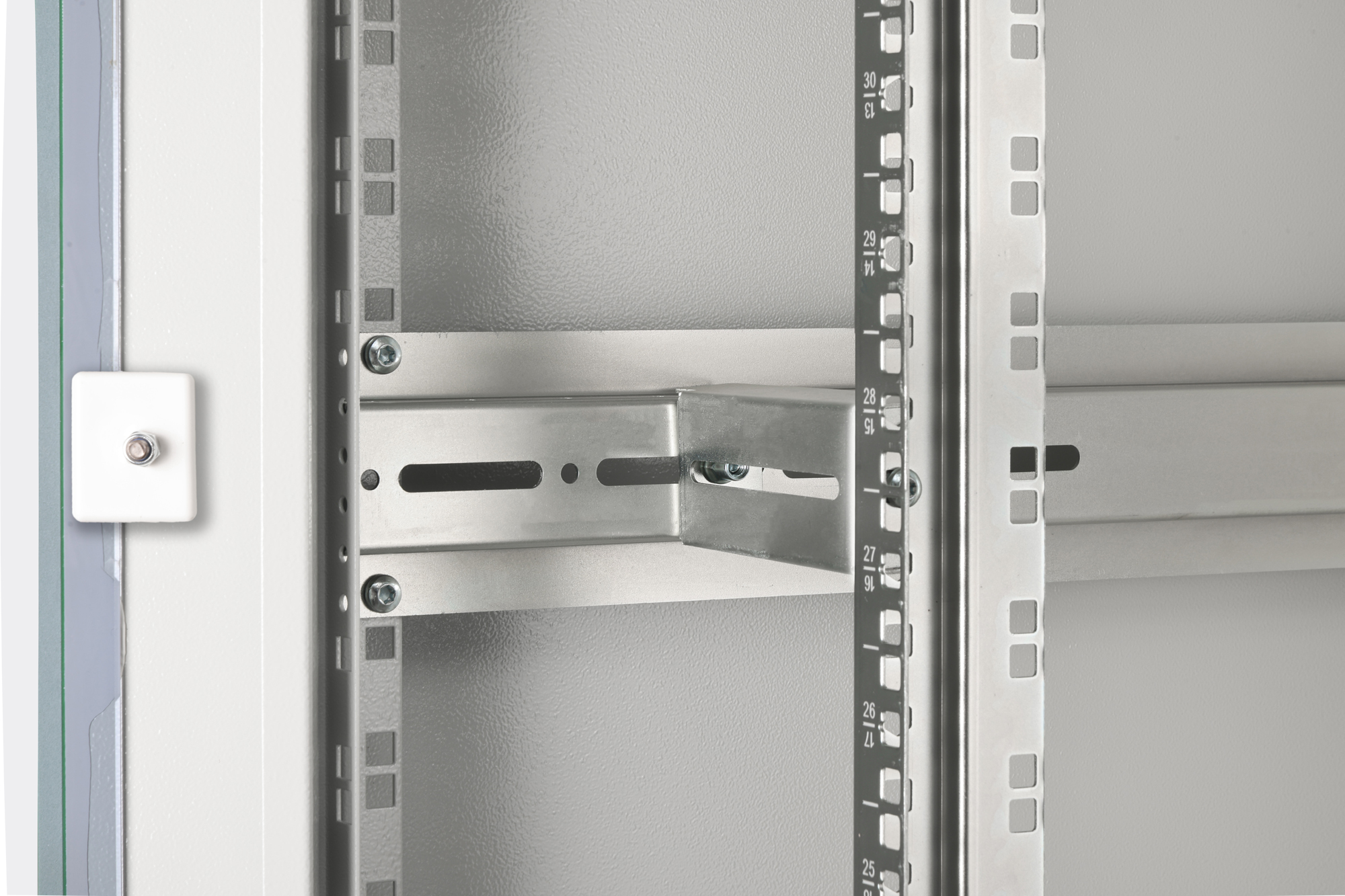

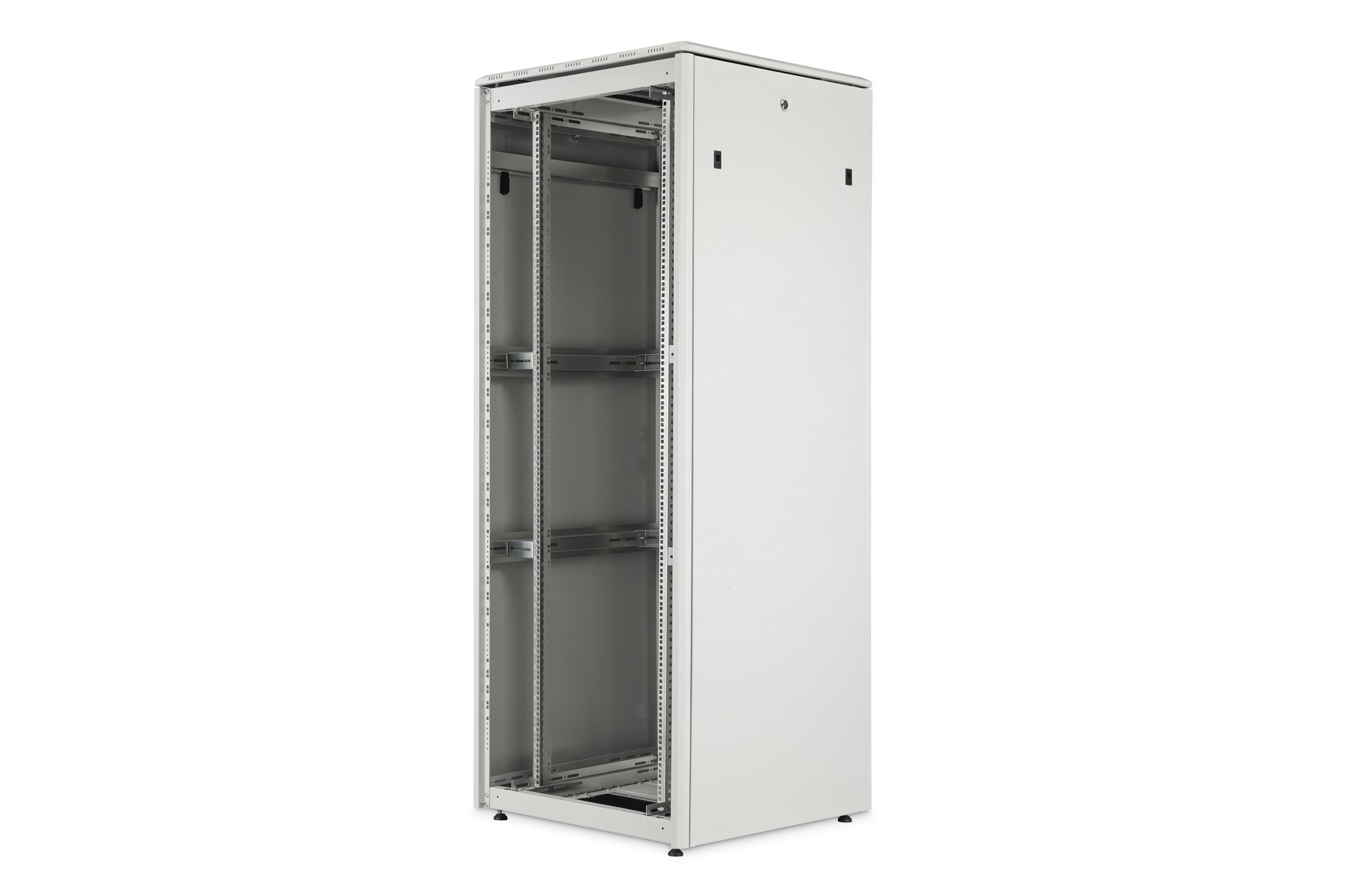

The network cabinets in the Unique Light series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
- Load capacity of the 483 mm (19") profile rails of up to 800 kg
- Swivel handle with profile half-cylinder lock incl. key type 333 on the front door
- Modular, openable base chassis with removable 19" blind panels
- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor
- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)
The network cabinets in the Unique Light series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Rack capacity | 42U |
| International Protection (IP) code | IP20 |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Adjustable feet | Yes |
| Back door key lock | Yes |
| Front door key lock | Yes |
| Side panel key lock | Yes |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 800 kg |
| Material | Steel |
| Product colour | Grey |
| Side panel style | Blind |
| Front door style | Glass door |
| Back door style | Blind |
| Weight & dimensions | |
| Package depth | 850 mm |
| Package width | 850 mm |
| Package height | 2103 mm |
| Package weight | 130 kg |
| Mounting depth (max) | 74.3 cm |
| Mounting depth (min) | 56.3 cm |
| Width | 800 mm |
| Depth | 800 mm |
| Height | 2050 mm |
| Weight | 127 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 800 kg |
| Packaging content | |
| Nuts included | Yes |
| Screws included | Yes |
| Side panels included | Yes |
| Packaging data | |
| Nuts included | Yes |
| Package depth | 850 mm |
| Package width | 850 mm |
| Package height | 2103 mm |
| Package weight | 130 kg |
| Screws included | Yes |
| Technical details | |
| Package width | 850 mm |
| Package height | 2103 mm |
| Type | Freestanding rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Rack capacity | 42U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Material | |
| Material | Steel |
