The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Supports PoE applications in Gigabit Ethernet environments

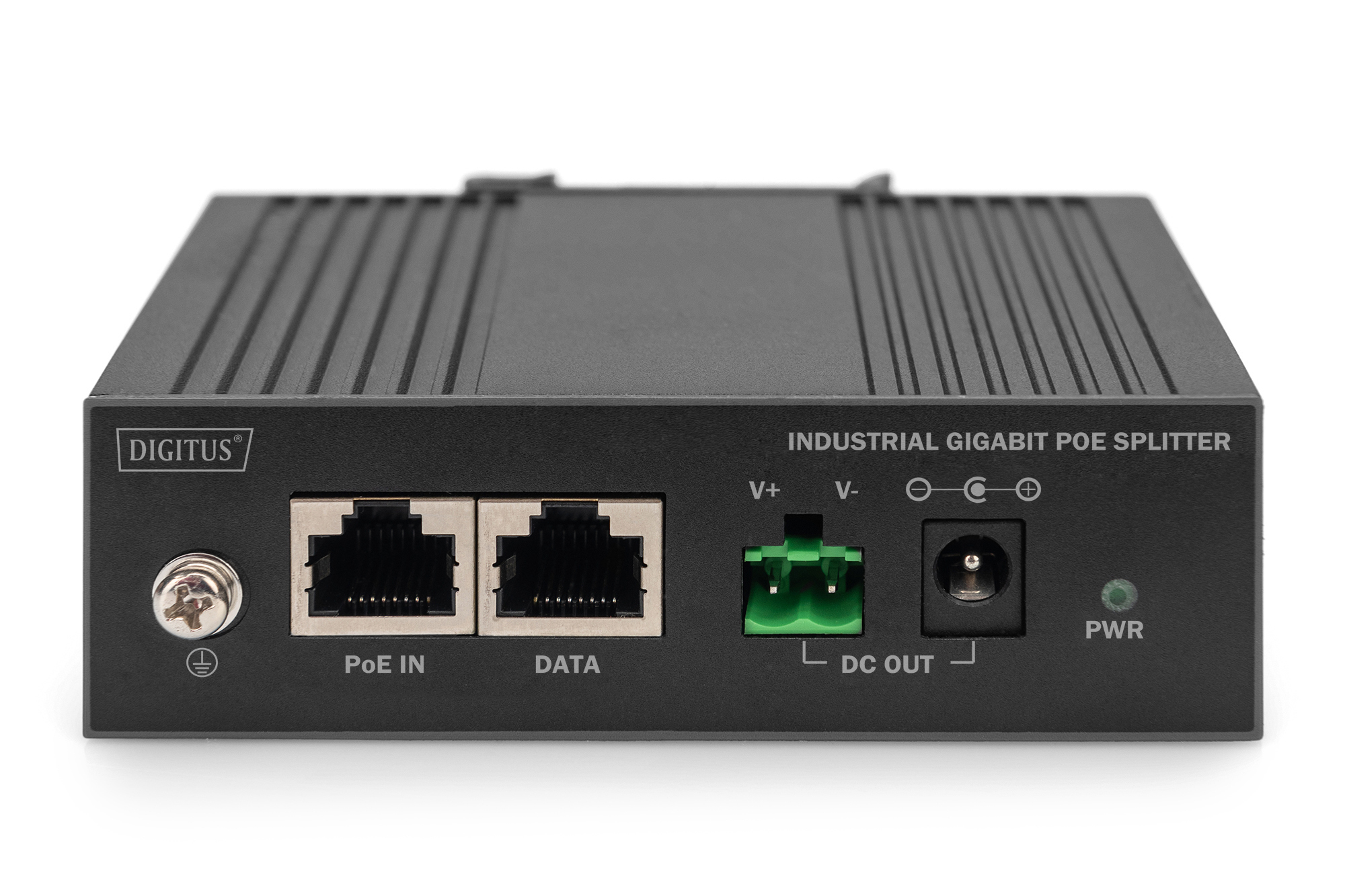

- Ports: 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN), 1 10/100/1000M RJ45 LAN Port (Only DATA),1 Connector (DC OUT)
- Network Media: 10Mbps: Cat 3,4,5 Unshielded Cable, 100Mbps: Cat 5,5E Unshielded Cable, 1000Mbps: Cat 5E, 6 Unshielded Cable
- Pass Through Data Rates: 10/100/1000 Mbps
- Supported Standards:IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE802.3af, IEEE802.3at , IEEE802.3bt
- Power Output: 12VDC/4.25A
- Input Power Requirements DC Input Voltage: 36 to 57 Vac
- Indicators: PoE ready / in-use
- Network Media(Cable): 10BASE-T: UTP category 3,4,5 cable (≤100m), 100BASE-TX: UTP category 5 cable (≤100m),1000BASE-T: UTP category 5e cable (≤100m)
- Connectors: Shielded RJ-45, EIA 568A and 568B
- Environmental Conditions: Operating Ambient Temperature:-40 to 75℃
- Operating Humidity:Maximum 90%, Non-condensing
- Storage Temperature:-40 to 75℃
- Storage Humidity:Maximum 95%, Non-condensing
- Regulatory Compliance IEEE 802.3bt, IEEE 802.3at,IEEE 802.3at
- Dimensions (L*W*H):103 *177 *32 mm

The DN-651140 PoE splitter splits the 48VDC over the RJ45 Ethernet cable into 12VDC power output. Supports PoE applications in Gigabit Ethernet environments The modules compliant with IEEE 802.3bt power classification and support PSE Alternative A and Alternative B connections. Maximum power output can reach 51W. 36Vdc to 57Vdc and less external components needed one output decoupling capacitor
