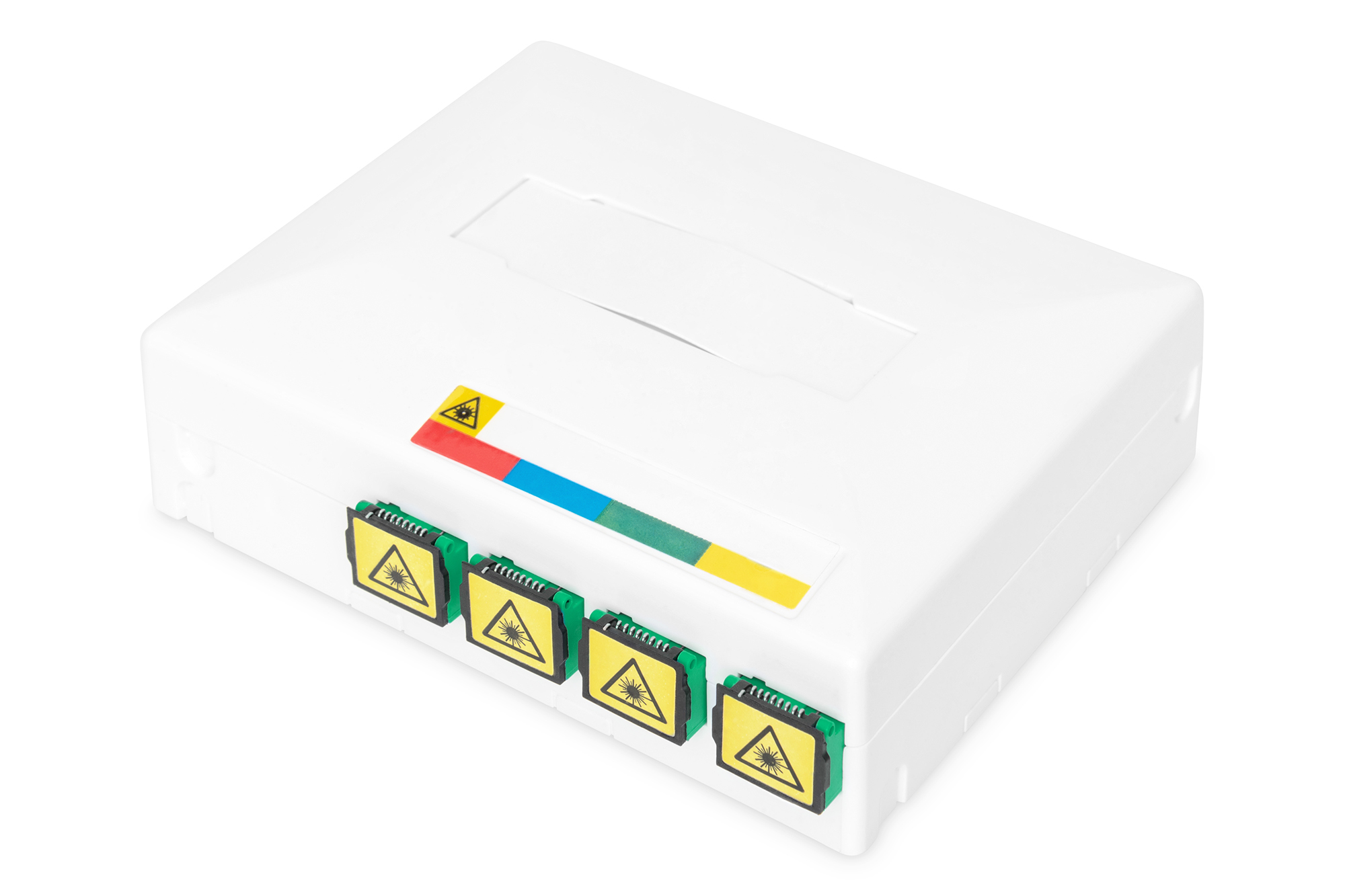

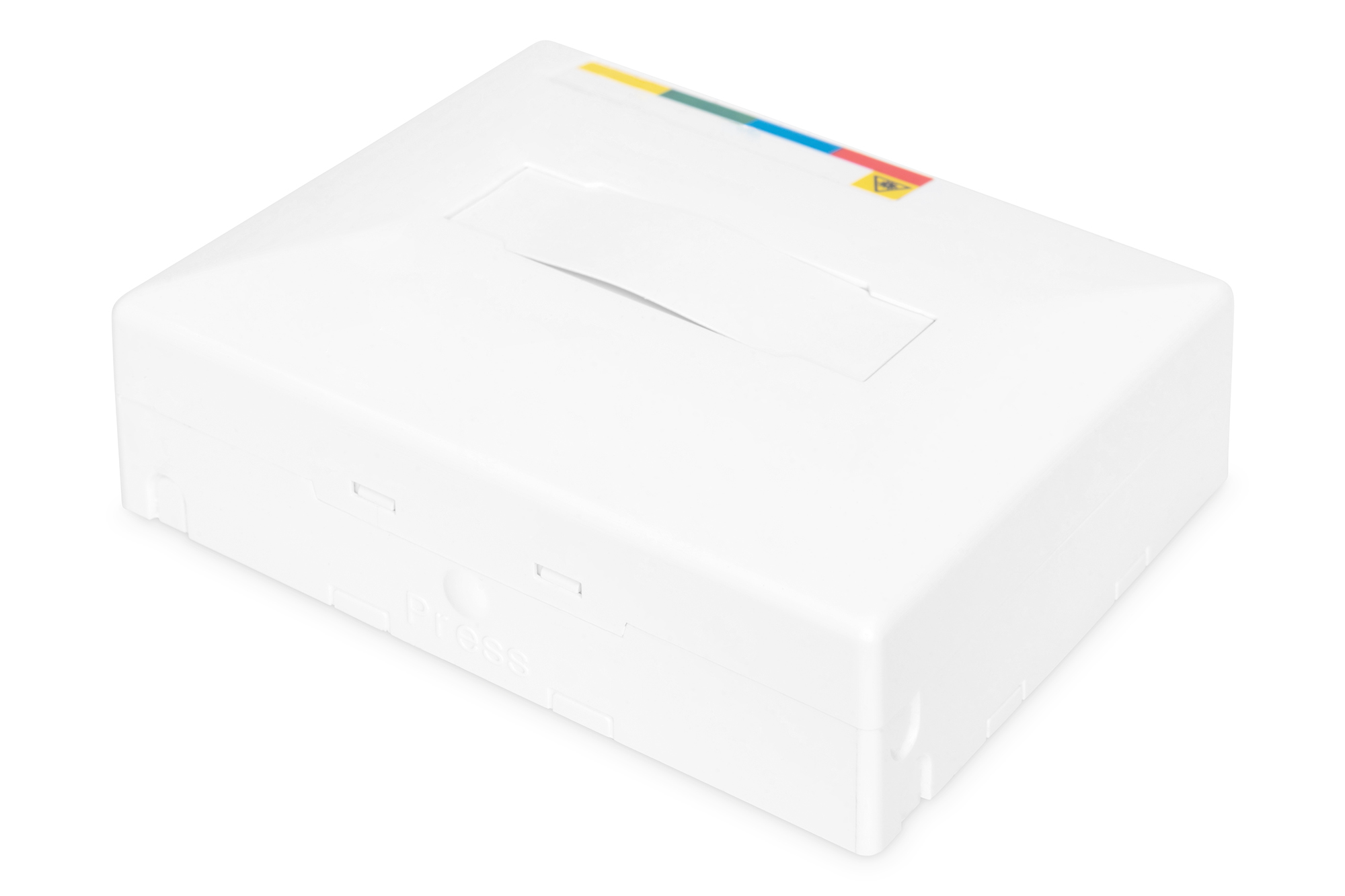

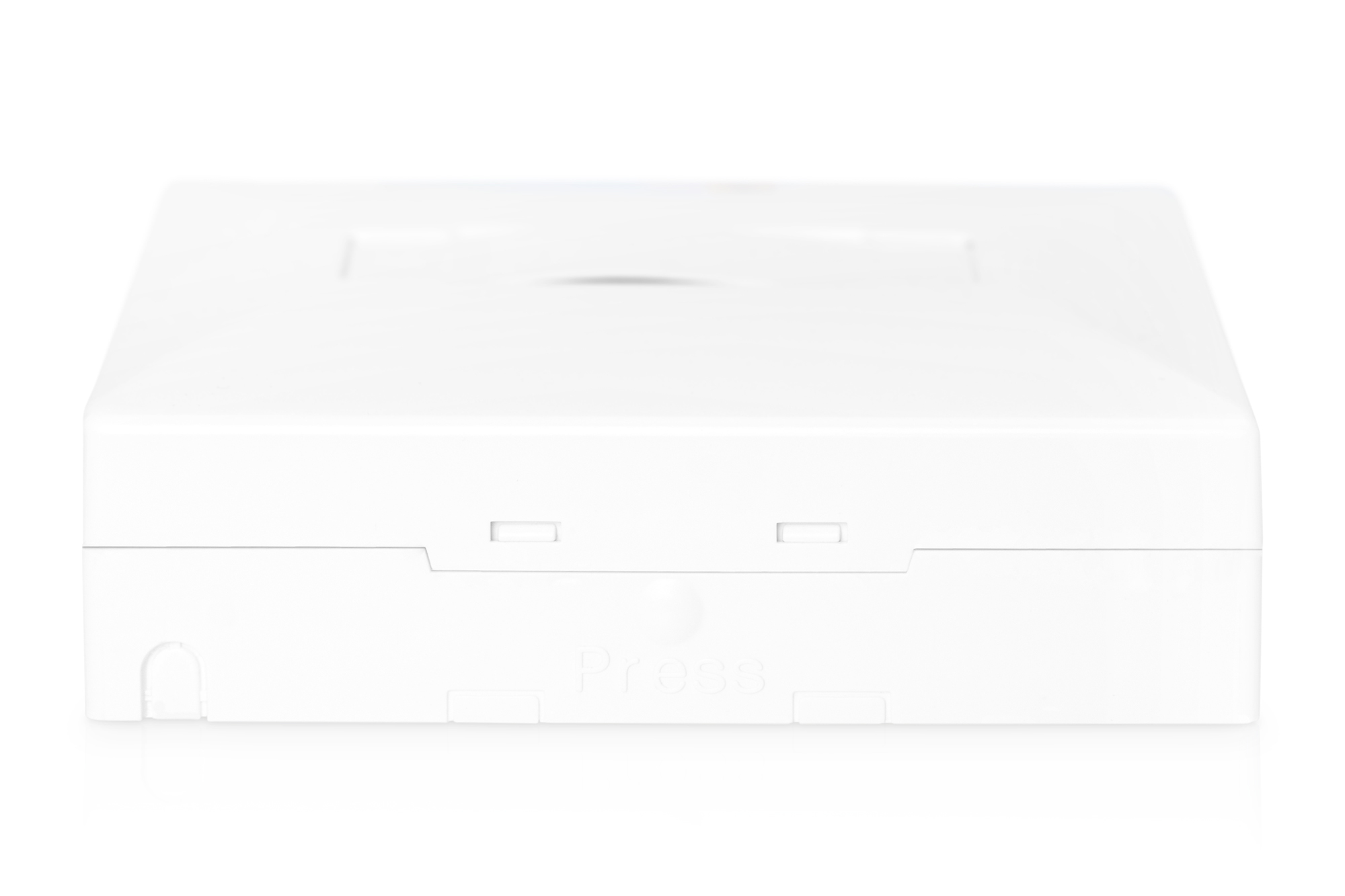

FTTX housing for fiber splices, terminations, storage and connections in a compact protective housing

- Ideal connection box for fiber optic cables in the area of FTTX / FTTH

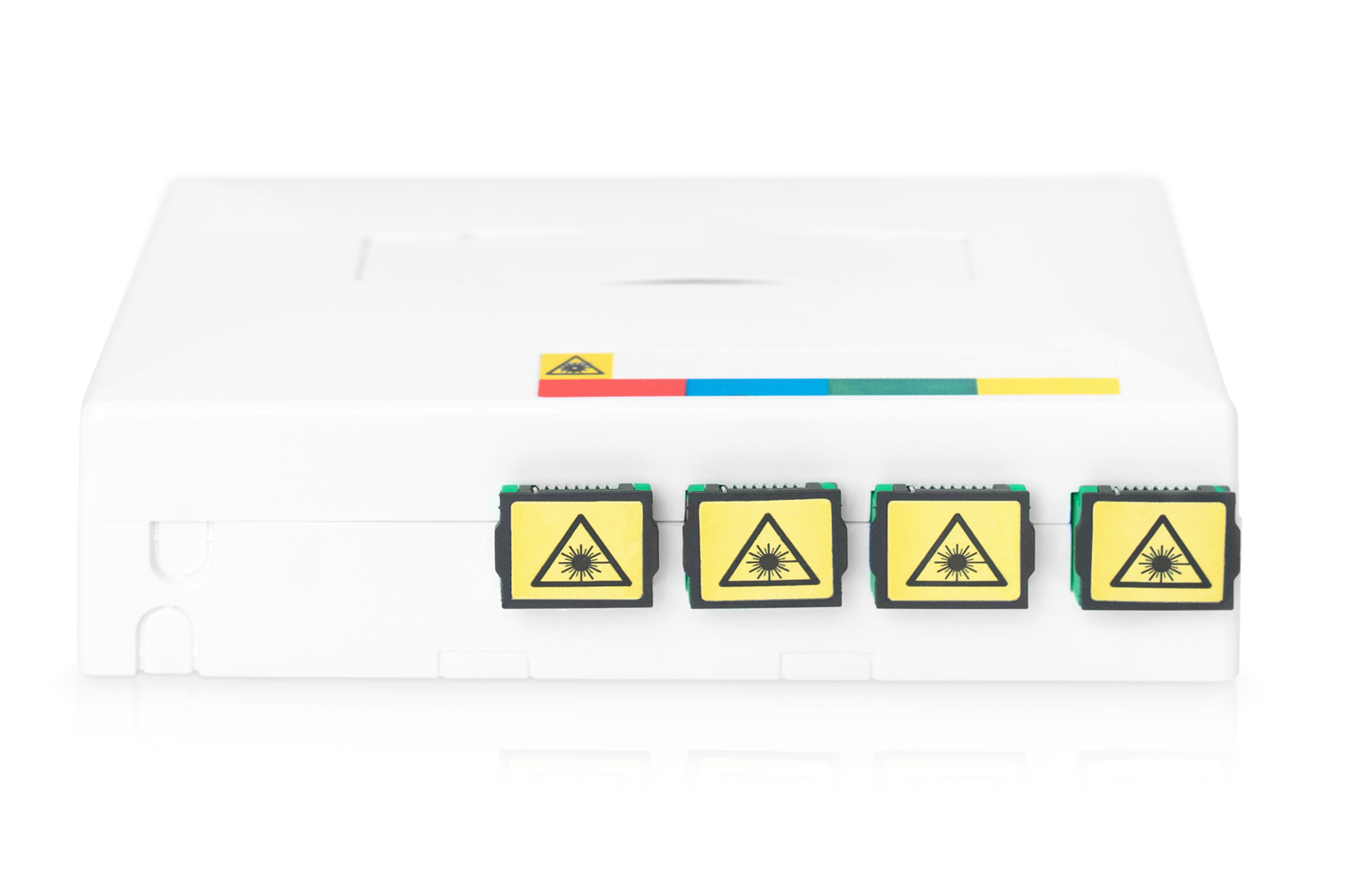

- Suitable for 4 x SC SX or 4 x LC DX couplings (without flange) (4 x SC SX incl.)
- Suitable for wall installation and profile rail installation (DIN rail)

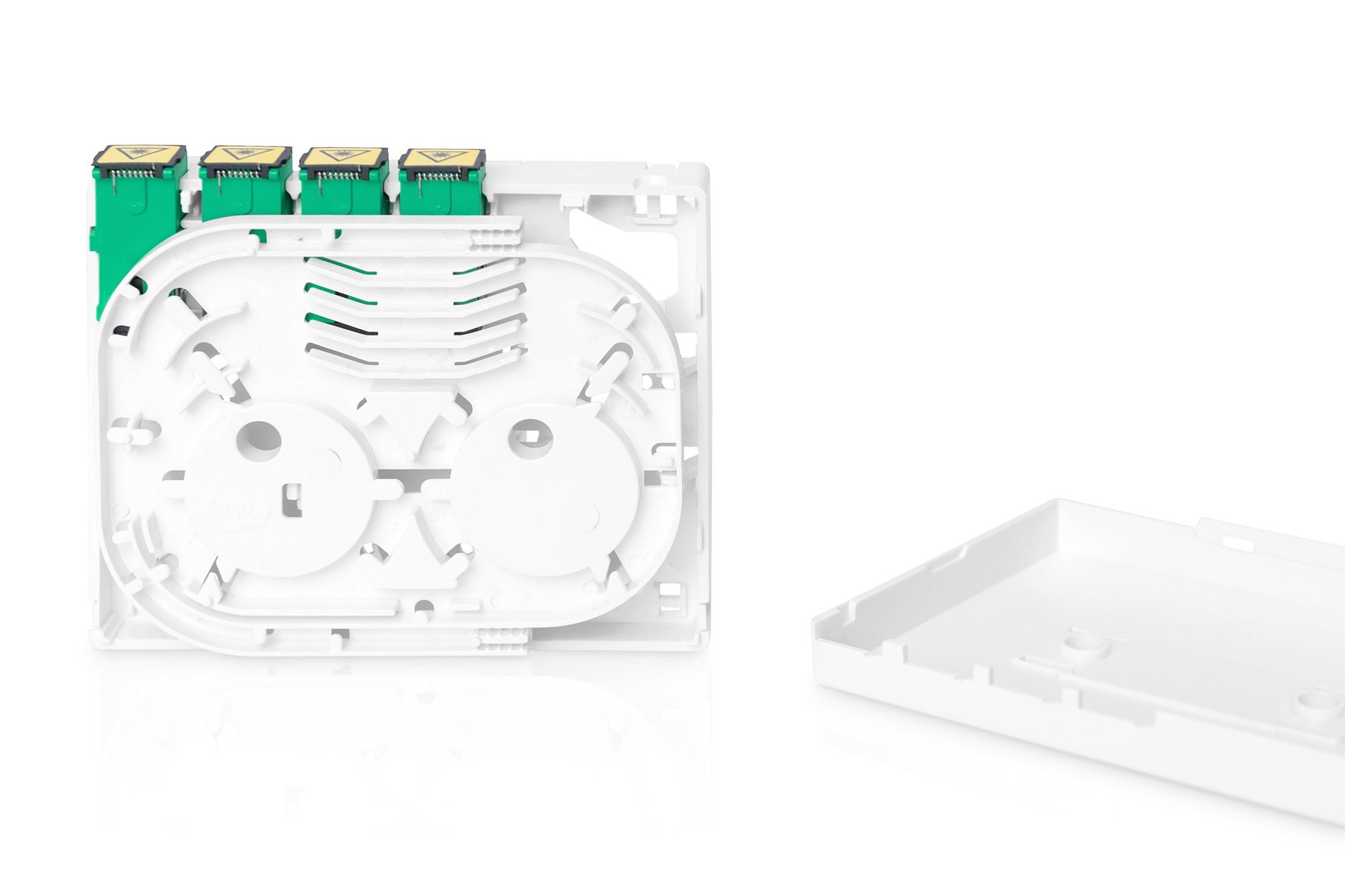

- Integrated splice cassette, hinged with cable routing
- Dust protection design with protection type IP45
- Integrated labeling field on the housing cover
- Suitable for fusion splicers or mechanical splicers
- Easy maintenance and expansion

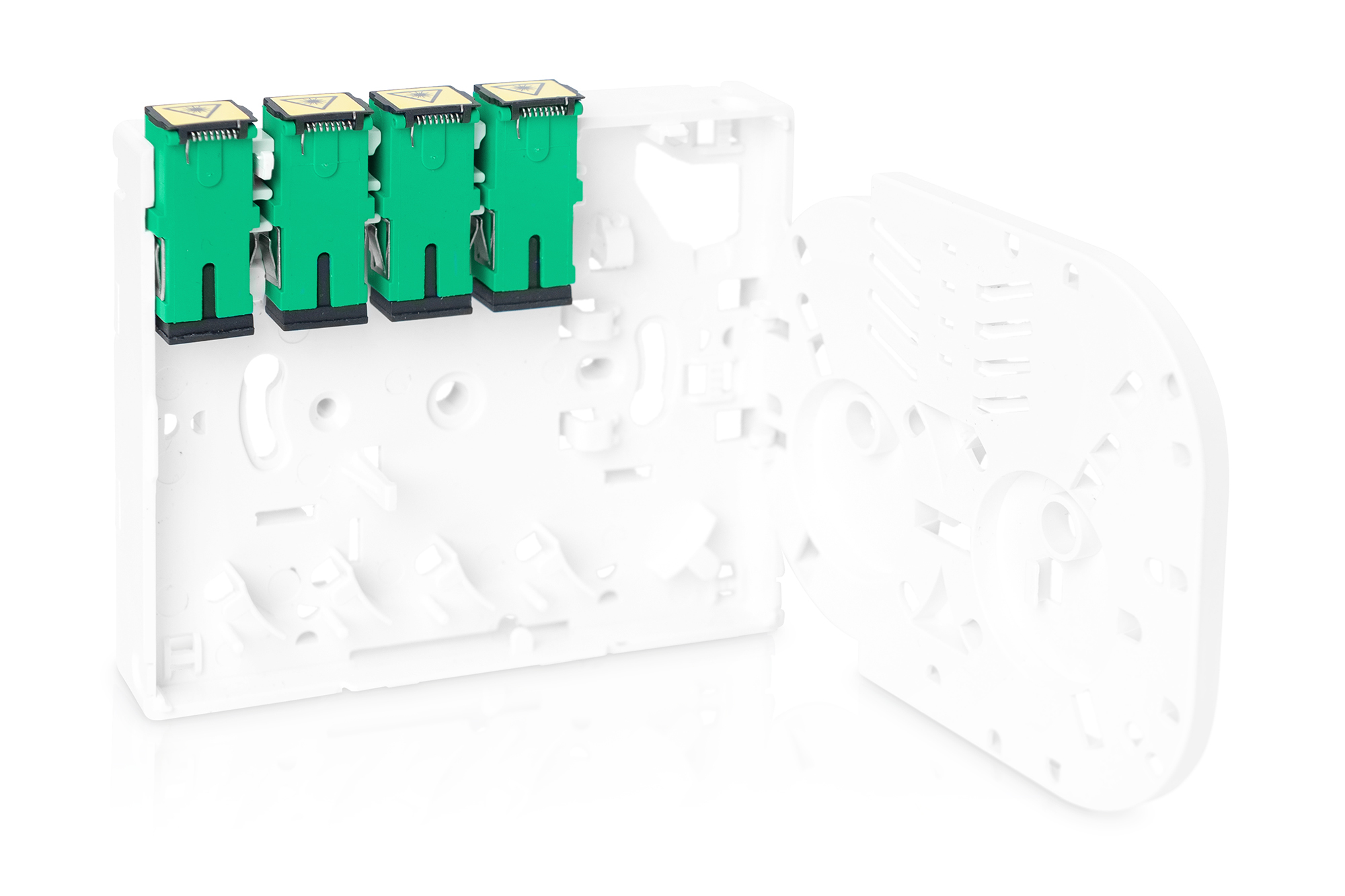

The FTTX housing can hold up to 4 fiber optic cables and distribute them to 4 end devices with the matching couplings. This housing is equipped with 4 x SC Simplex couplings; alternatively, 4 x LC Duplex couplings (without flange) can be inserted. The housing consists of a front panel, the housing with expandable splice cassette and a transparent plastic cover for additional protection of the spliced fiber optic cable. The box can be mounted on the wall or snapped onto a profile rail (DIN rail). Bring together fiber splices, terminations, storage and connections in a minimal space with the ultra-compact DIGITUS® FTTX.
