Digitus Dynamic-N series wall-mounted enclosure - 600x600 mm (WxD), unmounted
- Brand: Digitus
- Category:
- SKU: DN-37106
- EAN: 4016032488590
9U wall mounting cabinet, Dynamic-N 600 x 600 mm, unmounted, grey
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
9U wall mounting cabinet, Dynamic-N |
DN-37106 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - Wandgeh+?use Dynamic 9HE 600x600mm grau |
DN-37106 | |||
Related Products
-
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories -
Category: Rack Accessories
Description
The unassembled delivery of the wall-mounted enclosures ensures optimized transport options. Assembly can be carried out quickly and easily.
- Optimum ventilation and air extraction

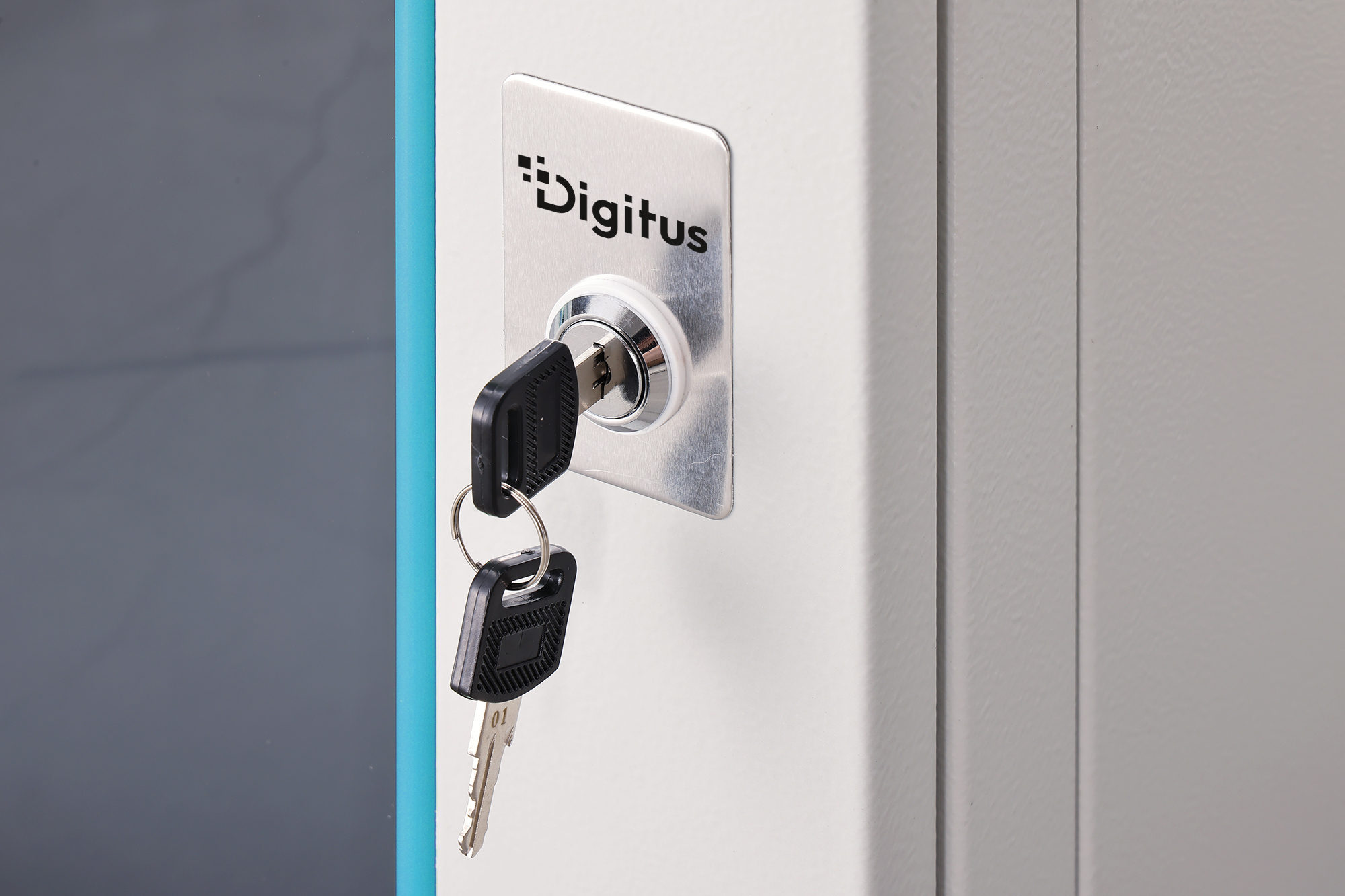

- Lockable safety glass door with steel frame
- 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
- Supplied unassembled
- Easy wall mounting thanks to enclosed mounting plate
The Dynamic-N series network cabinets for wall mounting have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.
- Optimum ventilation and air extraction
- Lockable safety glass door with steel frame
- 483 mm (19") profile rails at the front and rear inside the enclosure, galvanized
- Supplied unassembled
- Easy wall mounting thanks to enclosed mounting plate
The Dynamic-N series network cabinets for wall mounting have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing. For simplified logistics, the Dynamic-N series is supplied unassembled in a space-saving flat pack. The wall-mounted housing can be installed quickly and easily using the enclosed installation instructions.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Back door construction | Steel |
| Front door construction | Glass/Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Material | Steel, Glass |
| Cooling type | Active |
| Product colour | Light grey |
| Rack rails | Yes |
| Assembly required | Yes |
| Preassembled | No |
| Door opening angle | 230° |
| Side panel style | Blind |
| Front door style | Glass door |
| Back door style | Blind |
| Locking points | 1 |
| Weight & dimensions | |
| Package depth | 650 mm |
| Package width | 650 mm |
| Package height | 220 mm |
| Package weight | 22 kg |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 196 mm |
| Weight | 47.4 kg |
| Size (imperial) | 48.3 cm (19") |
| Maximum weight capacity | 60 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Side panels included | Yes |
| Packaging data | |
| Manual | Yes |
| Mounting kit | Yes |
| Package depth | 650 mm |
| Package width | 650 mm |
| Package height | 220 mm |
| Package weight | 22 kg |
| Grounding kit | Yes |
| Technical details | |
| Package width | 650 mm |
| Package height | 220 mm |
| Type | Wall mounted rack |
| Size (imperial) | 48.3 cm (19") |
| Side panels included | Yes |
| Cooling type | Active |
| Rack capacity | 9U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Light grey |
| Material | |
| Material | Steel, Glass |
| Logistics data | |
| Master (outer) case width | 650 mm |
| Master (outer) case length | 650 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 22 kg |
| Products per master (outer) case | 1 pc(s) |
| Shipping (inner) case width | 65 cm |
| Shipping (inner) case length | 65 cm |
| Shipping (inner) case height | 22 cm |
| Products per shipping (inner) case | 1 pc(s) |
