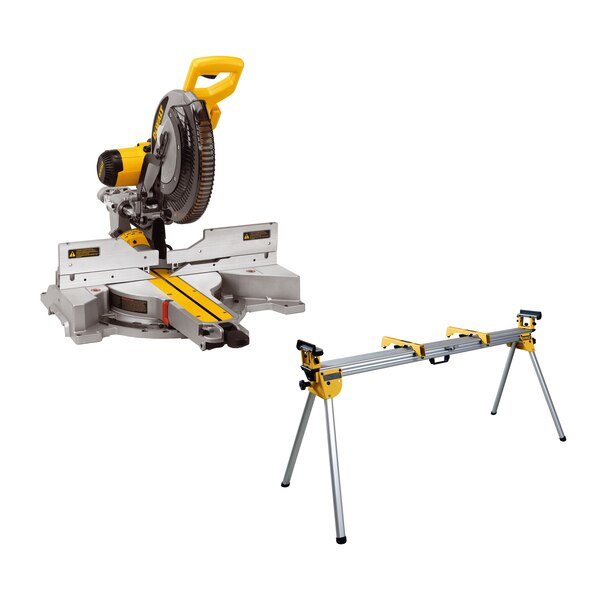

DeWALT DWS780KIT mitre saw 3800 RPM 1675 W
- Brand: DeWALT
- Category:
- SKU: DWS780KIT
- EAN: 5035048426104
305mm Mitre Saw
Offer details
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £2,185.56 |
Description
- Electronic speed control for adjusting cutting speed when cutting materials other than wood
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm.
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
- Long life Accuracy in Table and Fence Design
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another.
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right.
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite.
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right.
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications.
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide.
- Outstanding dust control and deflection away from cutting area
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm.
- Heavy duty durability with the ability to fully adjust your machine to maintain accuracy over the life of the tool.
- Long life Accuracy in Table and Fence Design
- Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another.
- Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right.
- Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite.
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required.
- New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right.
- The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications.
- Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide.
- Outstanding dust control and deflection away from cutting area
- The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
Specifications
| Technical details | |
|---|---|
| Cutting depth (max) | 17 cm |
| Input power | 1675 W |
| Blade diameter | 30.5 cm |
| Cutting capacity 45° mitre | 268 x 63 mm |
| Mitre setting (left) | 50° |
| Mitre setting (right) | 60° |
| Bevel setting (left) | 49° |
| Bevel setting (right) | 49° |
| Dust extraction | Yes |
| Idle speed (min) | 1900 RPM |
| Blade bore | 3 cm |
| Features | |
| Sound pressure level | 93 dB |
| Idle speed (max) | 3800 RPM |
| Dust extraction | Yes |
| Sliding rails | Yes |
| Laser guide | No |
| Sound emission | |
| Sound power level | 100 dB |
| Performance | |
| Mitre setting (left) | 50° |
| Mitre setting (right) | 60° |
| Bevel setting (left) | 49° |
| Bevel setting (right) | 49° |
| Sound power level | 100 dB |
| Idle speed (min) | 1900 RPM |
| Sound pressure level | 93 dB |
| Cutting width (90°) | 30.3 cm |
| Idle speed (max) | 3800 RPM |
| Sound level uncertainty | 3 dB |
| Vibration level | 2.5 m/s² |
| Power | |
| Power source | AC |
| Input power | 1675 W |
| Weight & dimensions | |
| Width | 770 mm |
| Depth | 470 mm |
| Height | 396 mm |
| Weight | 24.8 kg |
| Packaging content | |
| Blade diameter | 30.5 cm |
| Blade bore | 3 cm |
| Other features | |
| Cutting depth (max) | 17 cm |
| Cutting capacity 45° mitre | 268 x 63 mm |
