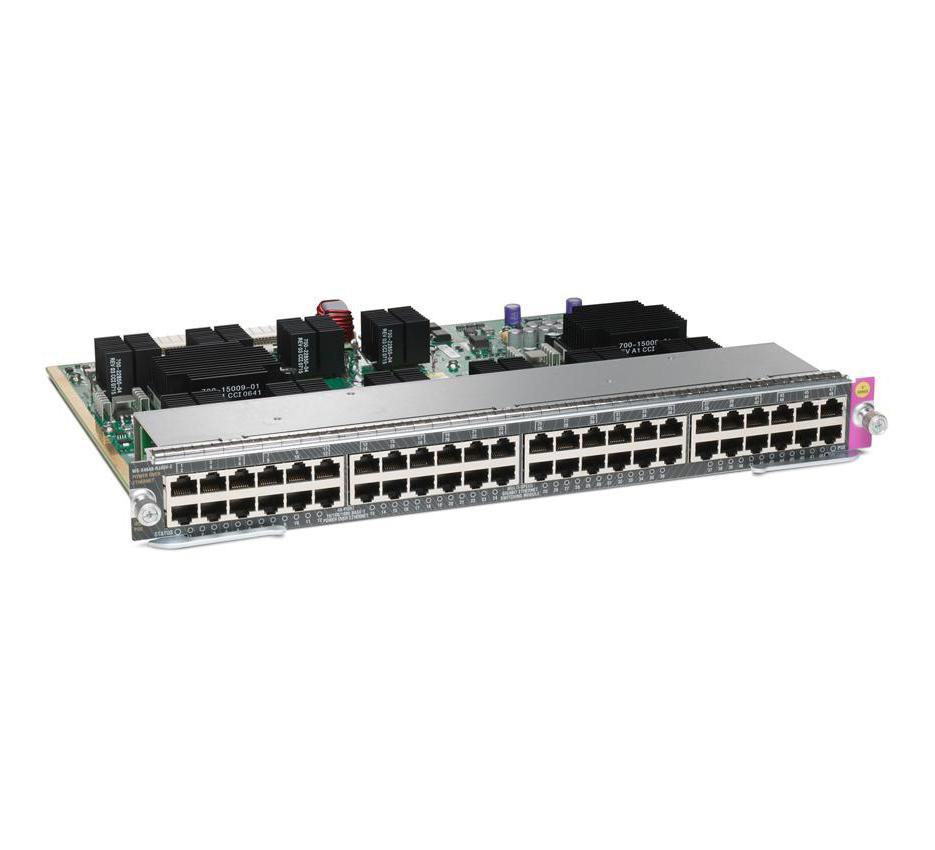

Cisco WS-X4648-RJ45V-E network switch module
- Brand: Cisco
- Category:
- SKU: WS-X4648-RJ45V-E
- EAN: 0882658134807
WS-X4648-RJ45V-E Catalyst 4500E Series 48-Port 802.3af PoE 10/100/1000 (RJ-45)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
Catalyst 4500 E-Series 48-port 802.3af PoE 10/100/1000 (RJ-45) |
WS-X4648-RJ45V-E |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £633.00 | ||
| Amazon | New | £633.00 | ||
| Amazon | New | £651.42 | ||
| Amazon | New | £671.38 | ||
| Amazon | New | £671.38 | ||
| Amazon | New | £651.42 | ||
| Amazon | New | £633.00 | ||
| Amazon | New | £651.42 | ||
| Amazon | New | £671.38 | ||
| Amazon | Used | £99.17 | ||
| Amazon | Used | £99.17 | ||
| Amazon | Used | £99.17 |
Related Products
-
Category: Network Switch Modules -
Category: Network Switch Modules -
Category: Network Switch Modules -
Category: Network Switch Modules
Description
- 24 gigabits per-slot capacity
- 48 ports
- 10/100/1000 module (RJ-45)
- Cisco IOS Software Release 12.2(40)SG or later
- Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group (2:1)
- L2-4 Jumbo Frame support (up to 9216 bytes)
- IEEE 802.3af and Cisco prestandard PoE, IEEE 802.3x flow control
- Enterprise and commercial: designed to power IP phones, wireless base stations, video cameras, and other IEEE-compliant powered devices
- Campus and branch applications requiring enhanced performance for large file transfers and network backups
- 48 ports
- 10/100/1000 module (RJ-45)
- Cisco IOS Software Release 12.2(40)SG or later
- Bandwidth is allocated across eight 6-port groups, providing 3 Gbps per port group (2:1)
- L2-4 Jumbo Frame support (up to 9216 bytes)
- IEEE 802.3af and Cisco prestandard PoE, IEEE 802.3x flow control
- Enterprise and commercial: designed to power IP phones, wireless base stations, video cameras, and other IEEE-compliant powered devices
- Campus and branch applications requiring enhanced performance for large file transfers and network backups
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3x, IEEE 802.3z |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Quality of Service (QoS) support | Yes |
| Data transmission | |
| Switching capacity | 24 Gbit/s |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 48 |
| Performance | |
| Quality of Service (QoS) support | Yes |
| Mean time between failures (MTBF) | 280365 h |
| Compatibility | Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, 4510R+E |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating altitude | 60 - 4000 m |
| Certificates | |
| Safety | UL 1950, EN 60950, CSA-C22.2, IEC 950 |
| Certification | FCC 15J A, VCCI A, CE, EN 55022 A, EN 55024 A, CISPR 22 A, AS/NZ 3548, NEBS 3 (GR-1089-CORE, GR-63-CORE) ETSI ETS-300386-2 ROHS5 |
| Weight & dimensions | |
| Dimensions (WxDxH) | 362 x 273 x 30 mm |
| Technical details | |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Copper ethernet cabling technology | 1000BASE-T, 1000BASE-TX, 100BASE-TX, 10BASE-T |
| Compatibility | Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, 4510R+E |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Endurance | |
| Mean time between failures (MTBF) | 280365 h |
