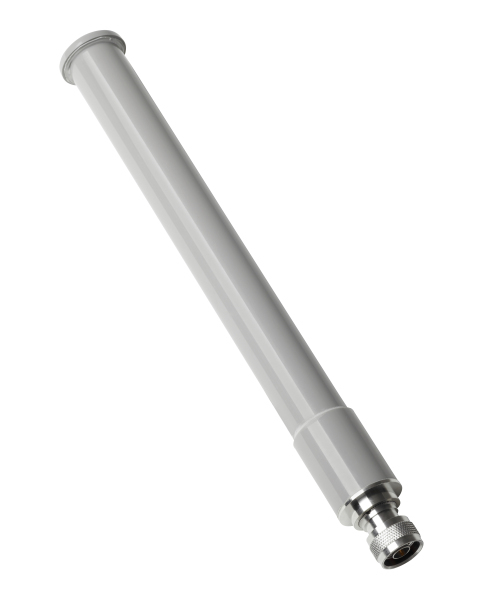

Cisco AIR-ANT2547VG-NS network antenna Omni-directional antenna N-type 7 dBi
- Brand: Cisco
- Category:
- SKU: AIR-ANT2547VG-NS=
- EAN: 0889728418331
2.4 GHz/5GHz, 50 Ohms, 4-dBi/7-dBi, N-Male, IP66, IP67, Grey, Spare
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2.4 GHz 4dBi 5 GHz 7dBi Dual Band Omni Antenna N connector |
AIR-ANT2547VG-NS= | |||
|
Air-Ant2547Vg-Ns Network |
AIR-ANT2547VG-NS= | |||
|
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL View on Xvantage |
CD06167 | |||
| Ingram Micro CS |
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL |
CD06167 | |||
|
2.4 GHz 4dBi 5 GHz 7dBi Dual Band Omni Antenna N connector |
AIR-ANT2547VG-NS= |
Description
The Cisco AIR-ANT2547VG-NS is a self-identifying antenna having circuitry that enables Cisco access points (APs) to self-identify the antenna. This antenna has an in-built EEPROM that the APs read and automatically configure the antenna type and the gain in the wireless controller.
Specifications
| Performance | |
|---|---|
| Bandwidth note | 2400 - 2483 , 5150 - 5875 MHz |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Gain | 4 / 7 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Features | |
| Waterproof | Yes |
| Survival wind speed | 265 km/h |
| Protection features | Dust resistant, Splash proof, Water resistant |
| International Protection (IP) code | IP67 |
| Connector gender | Male |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Gain | 4 / 7 dBi |
| Product colour | Grey |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | N-type |
| Technical details | |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Gain | 4 / 7 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | N-type |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | Grey |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Weight | 170 g |
| Height | 282 mm |
| Diameter | 3.17 cm |
| Packaging content | |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
