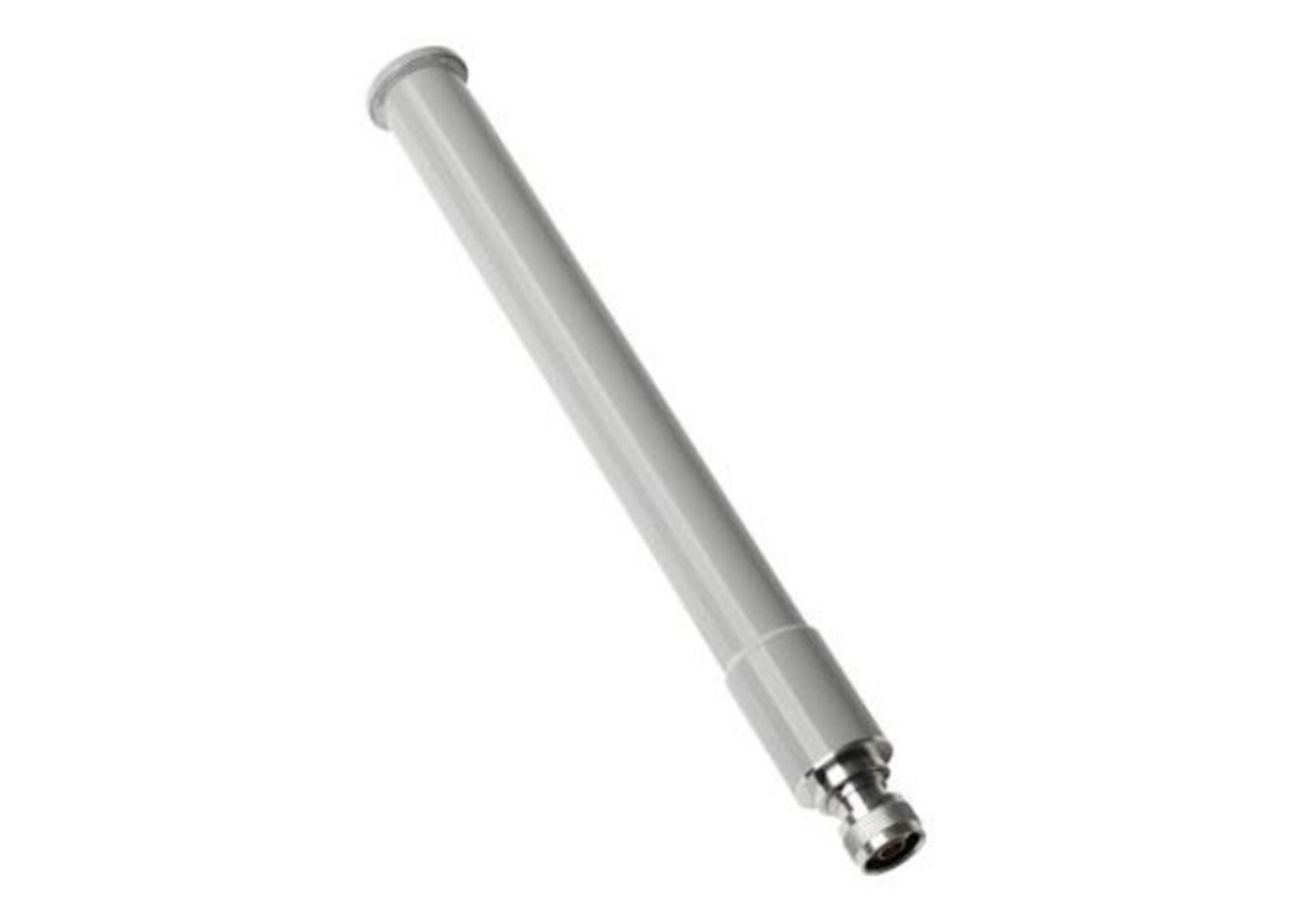

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
- Brand: Cisco
- Category:
- SKU: AIR-ANT2547V-N=
- EAN: 0882658410789 5054484354239 40 ...4354239 4053162312753 4054317988717 8826584107896more
Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
2.4 GHz 4dBi 5 GHz 7dBi Dual Band Omni Antenna N connector |
AIR-ANT2547V-N= | |||
|
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL |
AIR-ANT2547V-N= | |||
|
Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=) |
AIR-ANT2547V-N= | |||
|
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL View on Xvantage |
677M492 | |||
|
|
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL View on Xvantage |
CA90328 | |||
| Ingram Micro CS |
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL |
CA90328 | |||
| Ingram Micro CS |
2.4 GHZ 4DBI/5 GHZ 7DBI DUAL |
677M492 | |||
|
Cisco Aironet AIR-ANT2547V-N Antenna - 7 dBi - Omni-directional |
STD10103802 | |||
|
Cisco Aironet Dual Band Omni Antenna - Antenna - 7 dBi (for 5 GHz), 4 dBi (for 2.4 GHz) - omni-directional - outdoor View on InTouch |
2252484 | |||
|
2.4 GHz 4dBi 5 GHz 7dBi Dual Band Omni Antenna N connector |
AIR-ANT2547V-N= |
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £159.00 |
Description
The Cisco Aironet AIR-ANT2547V-N= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Features | |
| Country of origin | China |
| Connector gender | Male |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Product colour | Silver |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | N-type |
| Technical details | |
| Antenna gain level (max) | 7 dBi |
| Frequency band | 2.4/5 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Purpose | Outdoor |
| Impedance | 50 Ω |
| Horizontal beam width (5 GHz) | 14° |
| Horizontal beam width (2.4 GHz) | 30° |
| Frequency range | 2.4 - 2.483GHz, 5.15 - 5.875GHz |
| Antenna gain (5 GHz) | 7 dBi |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna connector type | N-type |
| Harmonized System (HS) code | 85177100 |
| Colour | |
| Product colour | Silver |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Package width | 152.4 mm |
| Package depth | 482.6 mm |
| Package height | 50.8 mm |
| Package weight | 317.46 g |
| Weight | 170 g |
| Width | 3.17 mm |
| Depth | 3.17 mm |
| Height | 282 mm |
| Diameter | 3.17 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging content | AIR-ANT2547V-N Antenna |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85177100 |
| Other features | |
| Dimensions (WxDxH) | 3.17 x 3.17 x 282 mm |
| Frequency range | 2.4 - 2.483GHz, 5.15 - 5.875GHz |
