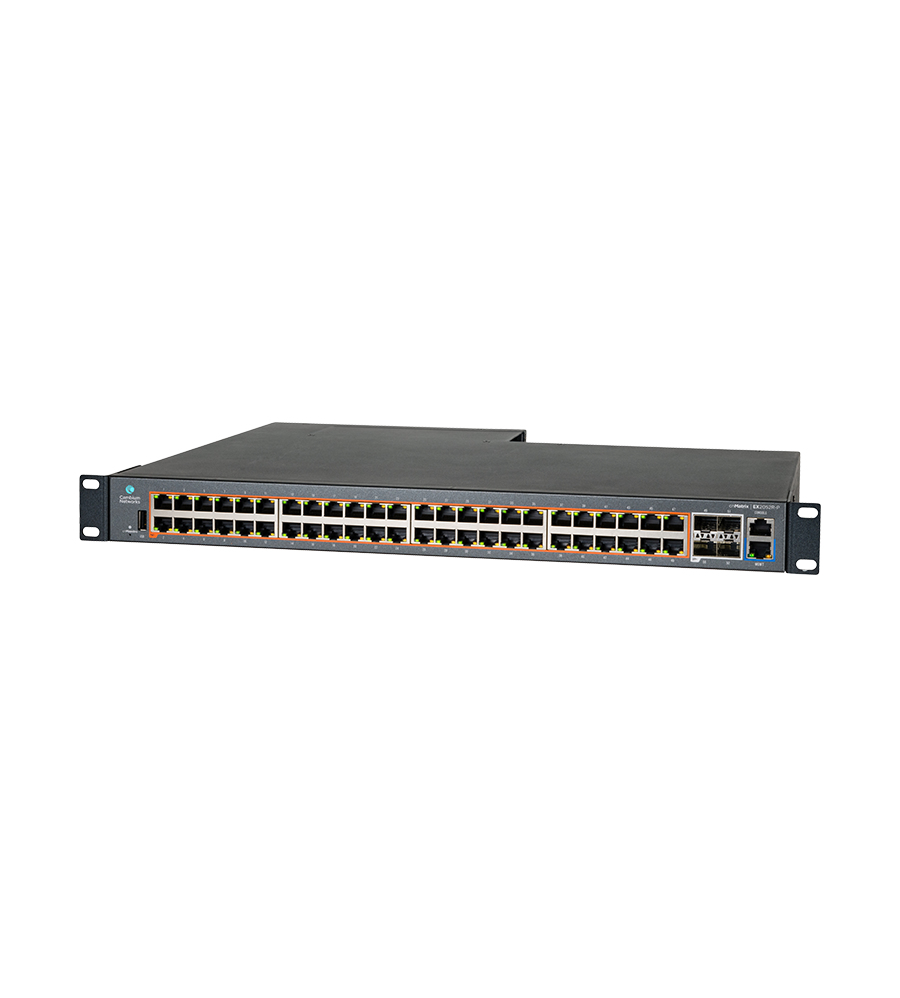

Cambium Networks EX2052R-P Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- Brand: Cambium Networks
- Category:
- SKU: MXEX2052GXPA10
- EAN: 5704174864776 5704174398608
176 Gbps, 48 x 10/100/1000 Ports, 4 SFP+, PoE, 1U, black
Offer details
Trade Prices
| Distributor | Product | SKU | Stock | Updated | Price |
|---|---|---|---|---|---|
|
cnMatrix EX2052R-P - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x SFP+ (uplink) - rack-mountable - PoE+ |
W126811223 | |||
|
cnMatrix EX2052R-P Intelligent Ethernet PoE Switch 48 1G and 4 SFP+ No CRPS - no pwr cord |
4700798 |
| Alternative Suppliers | |||||
|---|---|---|---|---|---|
|
EU Product - cnMatrix EX2052R-P - Switch - Fiber Optic |
MXEX2052GXPA10 | |||
Retail Prices
| Merchant | Product | Condition | Updated | Price |
|---|---|---|---|---|
| Amazon | New | £2,784.48 | ||
| Amazon | New | £2,784.48 |
Description
cnMatrix Switch EX2052R-P
176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Network | |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Number of VLANs | 4000 |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | |
| Number of VLANs | 4000 |
| Data transmission | |
| Number of VLANs | 4000 |
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Jumbo frames support | Yes |
| Forwarding rate | 120 Mpps |
| Throughput | 176 Gbit/s |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 800 MHz |
| Mean time between failures (MTBF) | 202977 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Security | |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| IGMP proxy | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Memory | |
| Memory type | DDR-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, PoE |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DDR-SDRAM |
| Mean time between failures (MTBF) | 202977 h |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Indication | |
| LED indicators | Activity, Link, PoE |
| Power | |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 54 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
