The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.

Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification

Family sound profile with the Panaray MA12EX Loudspeaker

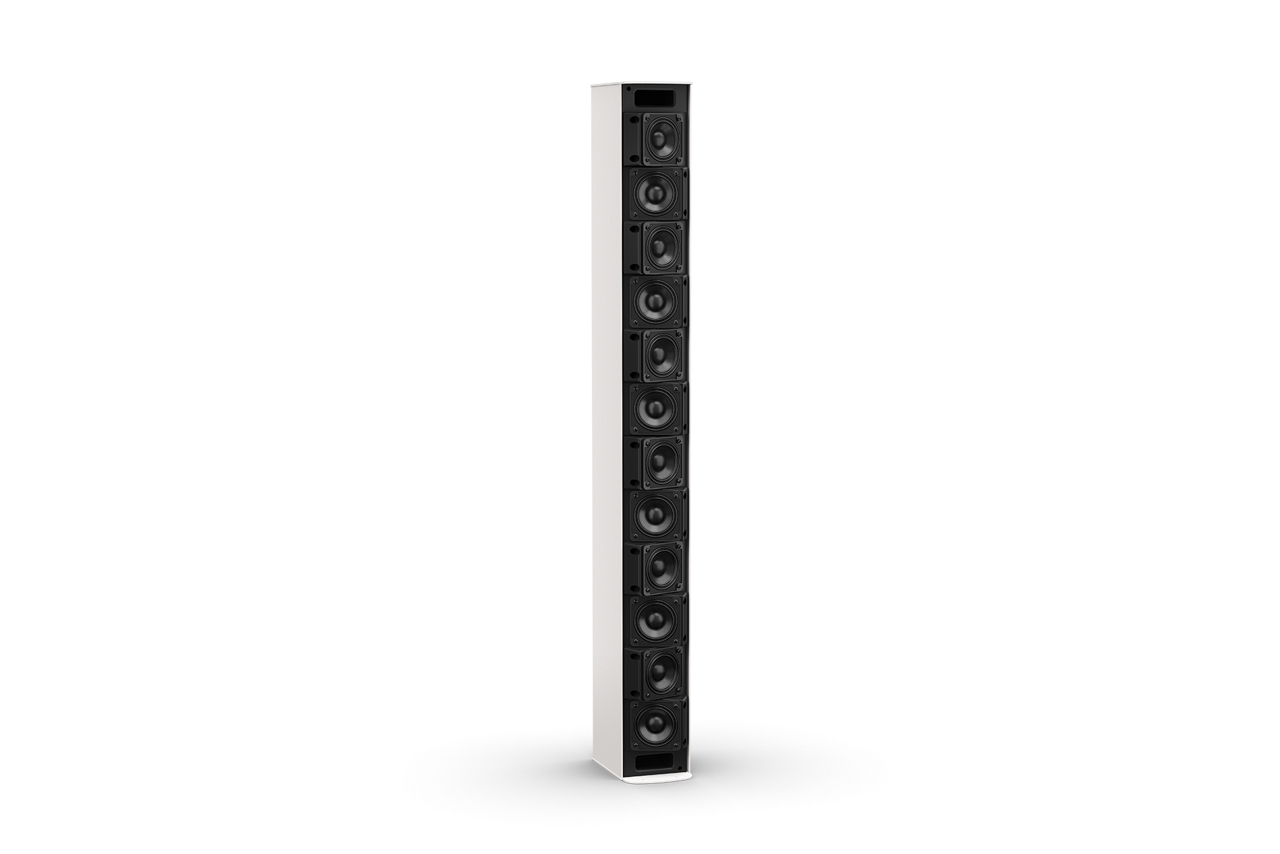

Twelve (12) x 2.25-inch full-range transducers with 58 Hz – 18 kHz frequency range

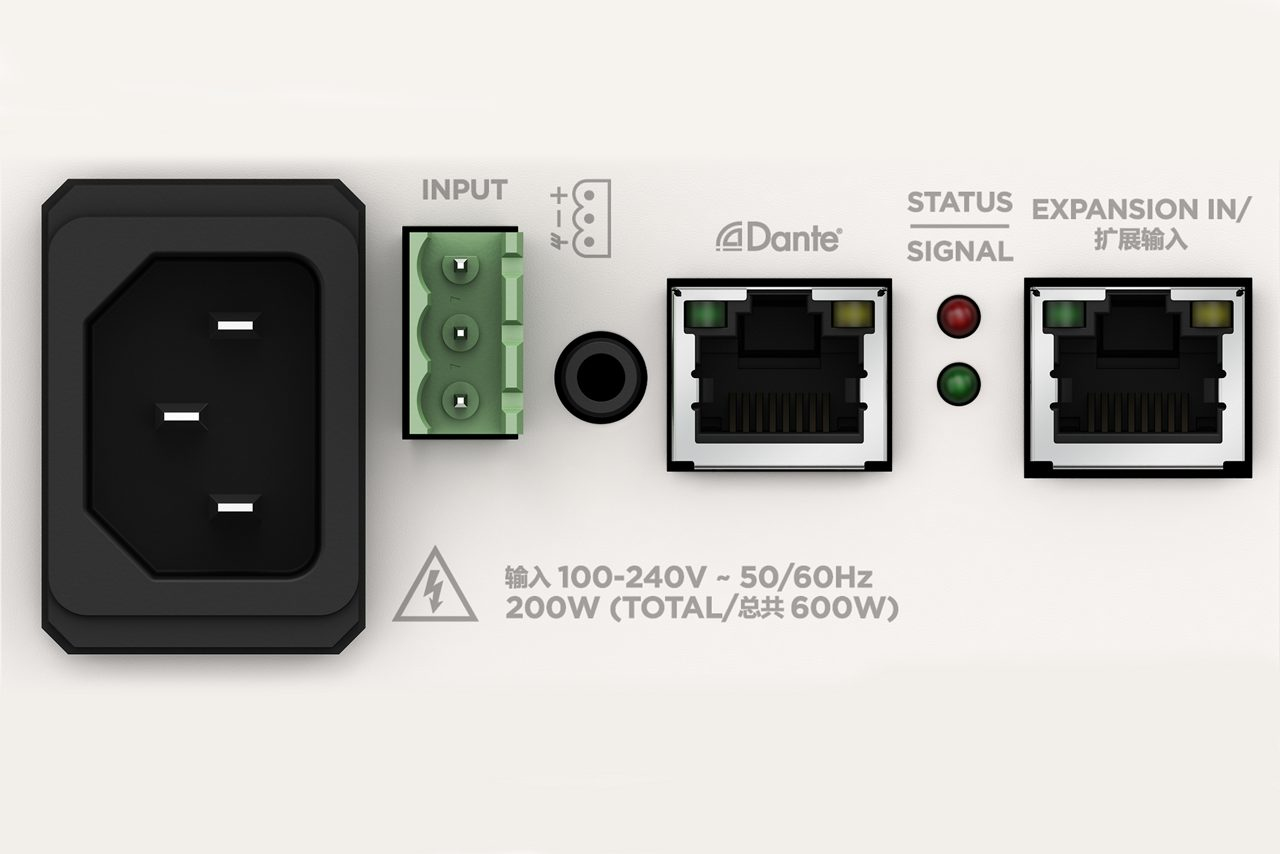

Dante digital audio network interface and line-level analog input

Articulated Array configuration allows wide, 160° horizontal coverage

Modular design allows building vertical arrays using 1-3 units

Multiple algorithms for beam steering control – designers can optimize consistency of coverage, tonal balance, and maximum SPL per job

Supports independent level and EQ control of 2 separate beams per array

Integrated mounting bracket allows up 90° of horizontal yaw adjustment

Advanced steering and acoustic coverage prediction using Bose Modeler software

System setup, control and monitoring with Bose ControlSpace® Designer software

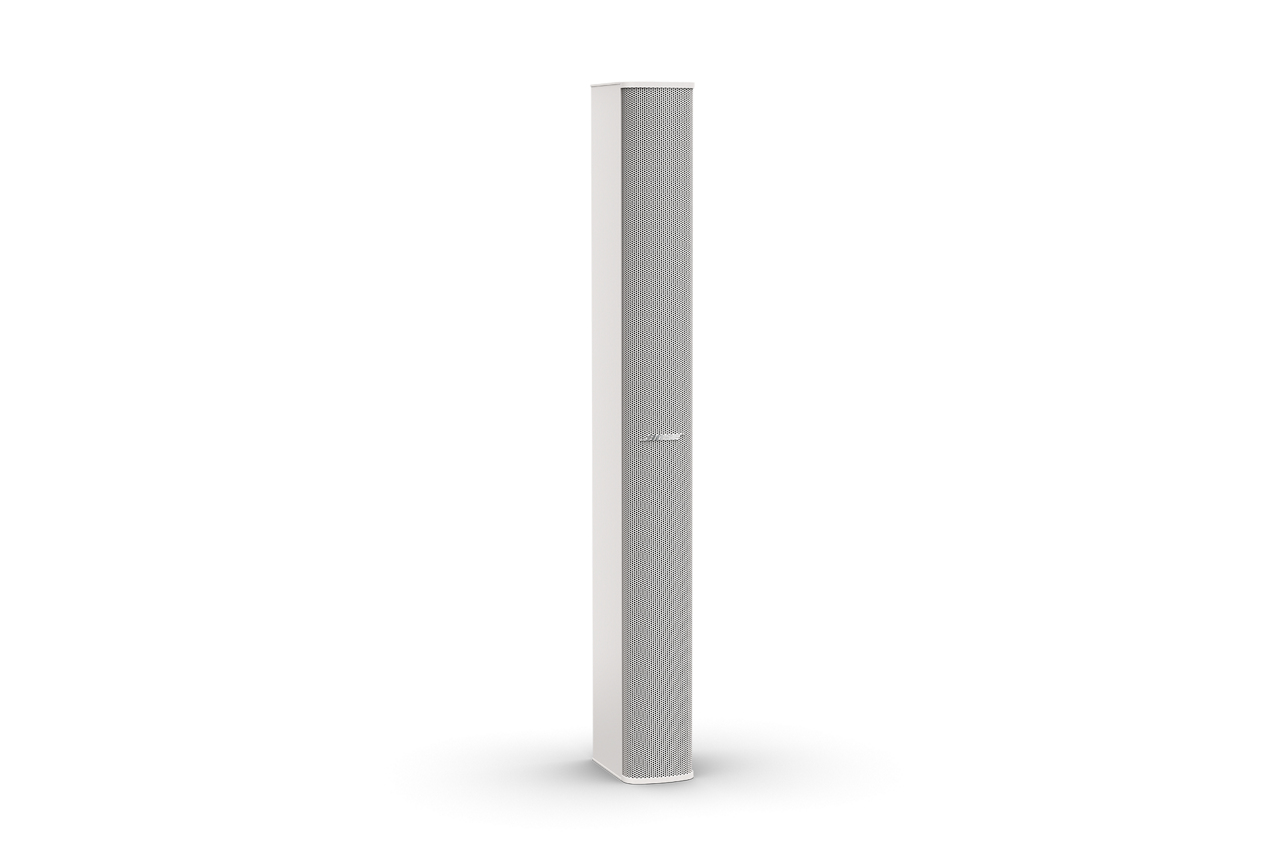

Available in black or white finish
